Karyer Horizontal/Vertical A/Cooled Condenser - 6x630mm EC Fans - 43bar - KAB104TC6630EC3B43

Karyer Horizontal/Vertical A/Cooled Condenser - 6x630mm EC Fans - 43bar

Part Number: KAB104TC6630EC3B43

Karyer Horizontal/Vertical A/Cooled Condenser - 6x630mm EC Fans - 43bar

Part Number: KAB104TC6630EC3B43
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • KAB 43bar Series Remote Air Cooled Condensers with EC fan motors

    Karyer KAB 43bar EC Fan series remote air cooled condensers are designed for high efficiency to provide professional solutions for projects utilising R410A refrigerant.

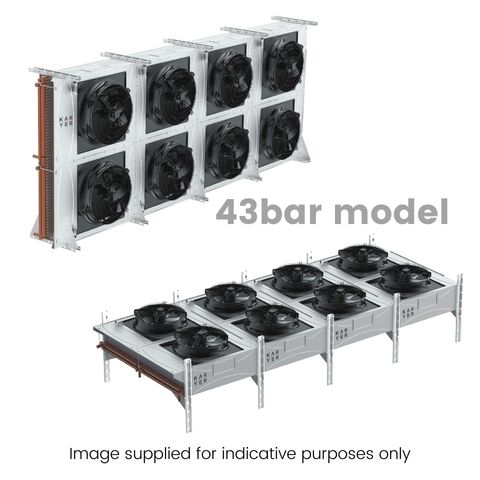

    KAB series condensers can be installed horizontally or vertically without having to order separate mounting kits.

    KAB series condensers are supplied with corrugated aluminium fin surface and optimum tube diameters for excellent heat transfer in order to increase efficiency.

    These condensers have a maximum operating pressure of 43 bar and are supplied with 2.1mm fin spacings plus a Gold Epoxy fin treatment.

    KAB EC fan condensers are factory fitted with the latest EC fan technology by ebm who are renowned worldwide for their quality, reliability and high energy savings with superior performance.



    There are three ebm EC fan motor assemblies utilised in KAB series condensers:

    • 500mm 230V-1Ph-50Hz - ebm-papst S3G500-AK07-G1 fan assembly
    • 630mm 400V-3Ph-50Hz - ebm-papst W3G630-GE55-51 fan assembly
    • 800mm 400V-3Ph-50Hz - ebm-papst W3G800-KS39-03 fan assembly



    KAB 43bar EC Fan Condensers - Standard Features:

    • Quality ebm-papst EC fan motor assemblies 500mm (1ph), 630mm (3ph) & 800mm (3ph).
    • High performance coils specifically designed for R410A refrigerant.
    • Coils have a maximum operating pressure of 43 bar.
    • Aluminium corrugated fin surface with 2.1mm spacings and high-performance copper tube.
    • Condensers are supplied with Gold Epoxy fin treatment.
    • Condensers are equipped to be installed Horizontally or Vertically.
    • Fan motors individually pre-wired to an electrical connection box.
    • Stainless steel fasteners - screws, nuts & bolts etc.
    • Panels are galvanised sheet coated in Traffic White (RAL 9016) electrostatic powder coating.
  • Condenser Specifications
    Heat Exchange Surface Area330 m²
    Internal Tube Volume37.8 dm³
    Fin Spacing2.1 mm
    Maximum Pressure43 bar
    Inlet Connections2 x 22 mm
    Outlet Connections2 x 22 mm
    Weight Unpacked480 kg
    Weight Packed591 kg
    Fan Motor Specifications
    Fan Motor Qty6
    Fan Diameter630 mm
    Fan Motor TypeEC Fan
    Fan Maximum Speed1000 RPM
    Fan Motor - High Speed
    Air Flow61548 m³/hr
    Total Watts4200 watts
    Total Amps (400V / 3 / 50Hz)6.6 amps
  • ebm Fan MotorsW3G630GE5551
  • Karyer_KAB_EC_6630

    Units Dimensions (mm)
    A2850
    B1200
    C2310
    E2650
    F1050
    G450
    H850
    I2260
    L650
    M1155
    N1255
  • R410A
    TD @ 10 KTD
    Fan Speed (RPM)
    3806801000
    5830089000117200

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
