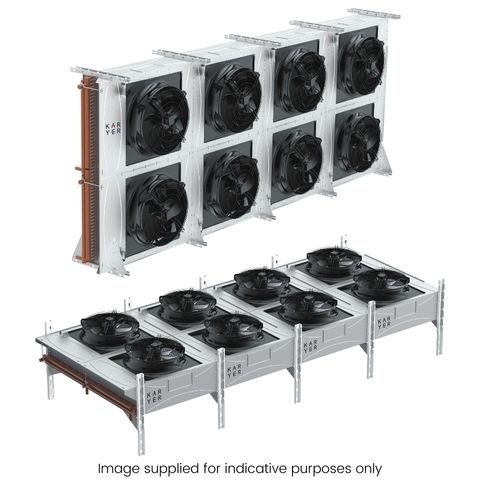

Karyer Horizontal/Vertical Air Cooled Condenser - 6x800mm EC Fans - KAB322TC6800EC3

Karyer Horizontal/Vertical Air Cooled Condenser - 6x800mm EC Fans

Part Number: KAB322TC6800EC3

Karyer Horizontal/Vertical Air Cooled Condenser - 6x800mm EC Fans

Part Number: KAB322TC6800EC3
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • KAB Series Air Cooled Condensers with 800mm EC fan motors

    Karyer KAB series remote air cooled condensers are designed for high efficiency to provide professional solutions for industrial coolrooms, freezer applications, chillers and air conditioning projects.

    KAB series condensers can be installed horizontally or vertically without having to order separate mounting kits.

    KAB series condensers are supplied with corrugated aluminium fin surface and optimum tube diameters for excellent heat transfer in order to increase efficiency.

    These condensers have a maximum operating pressure of 32 bar, are supplied with 2.1mm fin spacings plus a Gold Epoxy fin treatment.

    KAB condensers are supplied with the latest EC fan technology utilising ebm three phase 800mm EC fan motor assemblies which are renowned worldwide for quality, reliability and high energy savings performance.



    KAB 800mm EC Fan Condensers - Standard Features:

    • Quality 800mm three phase EC fan motor assemblies (ebm W3G800-KS39-03)
    • High performance coils designed for multiple refrigerants.
    • Coils have a maximum operating pressure of 32 bar.
    • Aluminium corrugated fin surface with 2.1mm spacings and high-performance copper tube.
    • Condensers are supplied with Gold Epoxy fin treatment.
    • Condensers are equipped to be installed Horizontally or Vertically.
    • Fan motors individually pre-wired to an electrical connection box.
    • Stainless steel fasteners - screws, nuts & bolts
    • Panels are galvanised sheet coated in Traffic White (RAL 9016) electrostatic powder coating.
  • Condenser Specifications
    Coil ConfigurationTwin Coil
    Heat Exchange Surface Area1441.4 m²
    Internal Tube Volume167.3 dm³
    Fin Spacing2.1 mm
    Maximum Pressure32 bar
    Inlet Connections2 x 42 mm
    Outlet Connections2 x 35 mm
    Weight Unpacked1122 kg
    Weight Packed1371
    Fan Motor Specifications
    Fan Motor Qty6
    Fan Diameter800 mm
    Fan Motor TypeEC Fan
    Fan Maximum Speed940 RPM
    Fan Motor - High Speed
    Air Flow128446 m³/hr
    Total Watts11700 watts
    Total Amps (400V / 3 / 50Hz)18.6 amps
  • ebm Fan MotorsW3G800KS3903
  • Units Dimensions (mm)
    A5550
    B1520
    C2360
    E5350
    F1050
    G450
    H1750
    I2310
    L650
    M1155
    N1255
  • R134a
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    154000246000313000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R513A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    154000244000310000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R404A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    157000252000323000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R507
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    157000252000324000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R449A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    157000254000328000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    Refrigerant capacities are calculated at middle points (not dew point)
    R448A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    157000254000328000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    Refrigerant capacities are calculated at middle points (not dew point)
