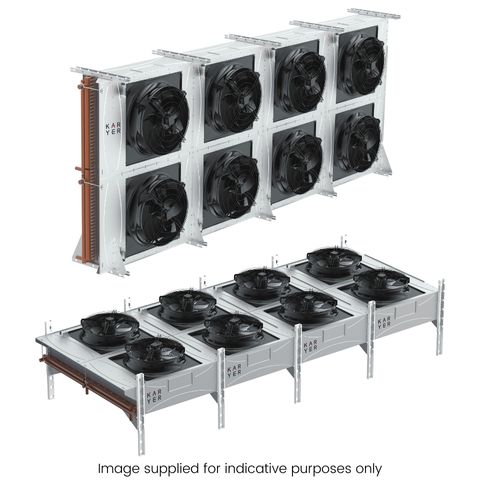

KAB Series Air Cooled Condensers with 800mm EC fan motors
Karyer KAB series remote air cooled condensers are designed for high efficiency to provide professional solutions for industrial coolrooms, freezer applications, chillers and air conditioning projects.
KAB series condensers can be installed horizontally or vertically without having to order separate mounting kits.
KAB series condensers are supplied with corrugated aluminium fin surface and optimum tube diameters for excellent heat transfer in order to increase efficiency.
These condensers have a maximum operating pressure of 32 bar, are supplied with 2.1mm fin spacings plus a Gold Epoxy fin treatment.
KAB condensers are supplied with the latest EC fan technology utilising ebm three phase 800mm EC fan motor assemblies which are renowned worldwide for quality, reliability and high energy savings performance.
KAB 800mm EC Fan Condensers - Standard Features:
- Quality 800mm three phase EC fan motor assemblies (ebm W3G800-KS39-03)
- High performance coils designed for multiple refrigerants.
- Coils have a maximum operating pressure of 32 bar.
- Aluminium corrugated fin surface with 2.1mm spacings and high-performance copper tube.
- Condensers are supplied with Gold Epoxy fin treatment.
- Condensers are equipped to be installed Horizontally or Vertically.
- Fan motors individually pre-wired to an electrical connection box.
- Stainless steel fasteners - screws, nuts & bolts
- Panels are galvanised sheet coated in Traffic White (RAL 9016) electrostatic powder coating.
