Karyer Horizontal/Vertical Air Cooled Condenser - 2x500mm EC Fans - KAB25SC2500EC1

Karyer Horizontal/Vertical Air Cooled Condenser - 2x500mm EC Fans

Part Number: KAB25SC2500EC1

Karyer Horizontal/Vertical Air Cooled Condenser - 2x500mm EC Fans

Part Number: KAB25SC2500EC1
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • KAB Series Remote Air Cooled Condensers with EC fan motors

    Karyer KAB series remote air cooled condensers are designed for high efficiency to provide professional solutions for industrial coolrooms, freezer applications, chillers and air conditioning projects.

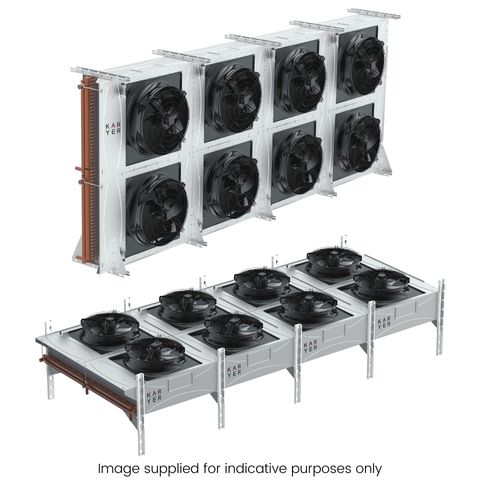

    KAB series condensers can be installed horizontally or vertically without having to order separate mounting kits.

    KAB series condensers are supplied with corrugated aluminium fin surface and optimum tube diameters for excellent heat transfer in order to increase efficiency.

    These condensers have a maximum operating pressure of 32 bar, are supplied with 2.1mm fin spacings plus a Gold Epoxy fin treatment.

    KAB EC fan condensers are factory fitted with the latest EC fan technology by ebm who are renowned worldwide for their quality, reliability and high energy savings with superior performance.



    There are three ebm EC fan motor assemblies utilised in KAB series condensers:

    • 500mm 230V-1Ph-50Hz - ebm S3G500-AK07-G1 fan assembly
    • 630mm 400V-3Ph-50Hz - ebm W3G630-GE55-51 fan assembly
    • 800mm 400V-3Ph-50Hz - ebm W3G800-KS39-03 fan assembly



    KAB Condensers - Standard Features:

    • Quality ebm EC fan motor assemblies 500mm (1ph), 630mm (3ph) & 800mm (3ph)
    • High performance coils designed for multiple refrigerants.
    • Coils have a maximum operating pressure of 32 bar.
    • Aluminium corrugated fin surface with 2.1mm spacings and high-performance copper tube.
    • Condensers are supplied with Gold Epoxy fin treatment.
    • Condensers are equipped to be installed Horizontally or Vertically.
    • Fan motors individually pre-wired to an electrical connection box.
    • Stainless steel fasteners - screws, nuts & bolts etc.
    • Panels are galvanised sheet coated in Traffic White (RAL 9016) electrostatic powder coating.
  • Condenser Specifications
    Heat Exchange Surface Area159.1 m²
    Internal Tube Volume16.9 dm³
    Fin Spacing2.1 mm
    Maximum Pressure32 bar
    Inlet Connections28 mm
    Outlet Connections22 mm
    Weight Unpacked151 kg
    Weight Packed206 kg
    Fan Motor Specifications
    Fan Motor Qty2
    Fan Diameter500 mm
    Fan Motor TypeEC Fan
    Fan Maximum Speed970 RPM
    Fan Motor - High Speed
    Air Flow8128 m³/hr
    Total Watts500 watts
    Total Amps (230V / 1 / 50Hz)2.2 amps
  • ebm Fan MotorsS3G500AK07G1
  • Units Dimensions (mm)
    A1600
    B1200
    C920
    E1400
    F1050
    G450
    H650
    I870
    L650
    M1155
    N1255
  • R134a
    TD @ 10 KTD
    Fan Speed (RPM)
    380680970
    104001790024400

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R513A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680970
    104001780024200

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R404A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680970
    105001820025000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R507
    TD @ 10 KTD
    Fan Speed (RPM)
    380680970
    105001820025000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R449A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680970
    105001830025200

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    Refrigerant capacities are calculated at middle points (not dew point)
    R448A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680970
    105001830025200

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    Refrigerant capacities are calculated at middle points (not dew point)
