Karyer Horizontal/Vertical Air Cooled Condenser - 6x630mm Fans

Part Number: KAB106TC6630AC3

Karyer Horizontal/Vertical Air Cooled Condenser - 6x630mm Fans

Part Number: KAB106TC6630AC3
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • KAB Series Remote Air Cooled Condensers with AC fan motors

    Karyer KAB series remote air cooled condensers are designed for high efficiency to provide professional solutions for industrial coolrooms, freezer applications, chillers and air conditioning projects.

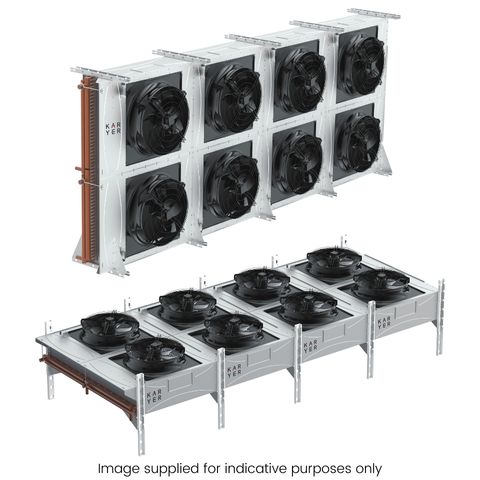

    KAB series condensers can be installed horizontally or vertically without having to order separate mounting kits.

    KAB series condensers are supplied with corrugated aluminium fin surface and optimum tube diameters for excellent heat transfer in order to increase efficiency.

    These condensers have a maximum operating pressure of 32 bar, are supplied with 2.1mm fin spacings plus a Gold Epoxy fin treatment.

    KAB condensers are factory fitted with AC fan technology by ebm-papst & Ziehl-Abegg who are renowned worldwide for their quality, reliability and superior performance.

    There are three AC fan motor assemblies utilised in KAB series condensers:

    • 500mm 230V-1Ph-50Hz: Ziehl-Abegg FN050-6EK.4F.V7P1 fan assembly
    • 630mm 400V-3Ph-50Hz: ebm-papst S6D630-AN01-01 fan assembly
    • 800mm 400V-3Ph-50Hz: Ziehl-Abegg FN080-SDQ.6N.V7 fan assembly



    KAB Condensers - Standard Features:

    • Quality AC fan motor assemblies 500mm (1ph), 630mm (3ph) & 800mm (3ph)
    • High performance coils designed for multiple refrigerants.
    • Coils have a maximum operating pressure of 32 bar.
    • Aluminium corrugated fin surface with 2.1mm spacings and high-performance copper tube.
    • Condensers are supplied with Gold Epoxy fin treatment.
    • Condensers are equipped to be installed Horizontally or Vertically.
    • Fan motors individually pre-wired to an electrical connection box.
    • Stainless steel fasteners - screws, nuts & bolts etc.
    • Panels are galvanised sheet coated in Traffic White (RAL 9016) electrostatic powder coating.
  • Condenser Specifications
    Coil ConfigurationTwin Coil
    Heat Exchange Surface Area344 m²
    Internal Tube Volume34.7 l
    Fin Spacing2.1 mm
    Maximum Pressure32 bar
    Mounting ConfigurationVertical & Horizontal
    Inlet Connections2 x 28 mm
    Outlet Connections2 x 22 mm
    Weight Unpacked 3535 kg
    Weight Packed 3670 kg

    3. Weights are a guide only

    Fan Motor Specifications
    Fan Motor Qty6
    Fan Diameter630 mm
    Fan Motor TypeAC
    Fan Motor - High Speed
    Air Flow51659 m³/hr
    Total Watts3600 watts
    Total Amps (400V / 3 / 50Hz)7.2 amps
  • Karyer_KAB16

    Units Dimensions (mm)
    A2550
    B1200
    C2310
    E2350
    F1050
    G450
    H750
    I2260
    L650
    M1155
    N1266
  • R134a
    TD @ 10 KTD
    Fan Speed
    High
    103790

    Note:

    Information is Based on 43°C Ambient & 53°C Condensing Temperature
    R449A and R448A refrigerant capacities are calculated at middle points (not dew point)
    R513A
    TD @ 10 KTD
    Fan Speed
    High
    103270

    Note:

    Information is Based on 43°C Ambient & 53°C Condensing Temperature
    R449A and R448A refrigerant capacities are calculated at middle points (not dew point)
    R404A
    TD @ 10 KTD
    Fan Speed
    High
    106710

    Note:

    Information is Based on 43°C Ambient & 53°C Condensing Temperature
    R449A and R448A refrigerant capacities are calculated at middle points (not dew point)
    R507
    TD @ 10 KTD
    Fan Speed
    High
    106880

    Note:

    Information is Based on 43°C Ambient & 53°C Condensing Temperature
    R449A and R448A refrigerant capacities are calculated at middle points (not dew point)
    R449A
    TD @ 10 KTD
    Fan Speed
    High
    107670

    Note:

    Information is Based on 43°C Ambient & 53°C Condensing Temperature
    R449A and R448A refrigerant capacities are calculated at middle points (not dew point)
    R448A
    TD @ 10 KTD
    Fan Speed
    High
    107680

    Note:

    Information is Based on 43°C Ambient & 53°C Condensing Temperature
    R449A and R448A refrigerant capacities are calculated at middle points (not dew point)
