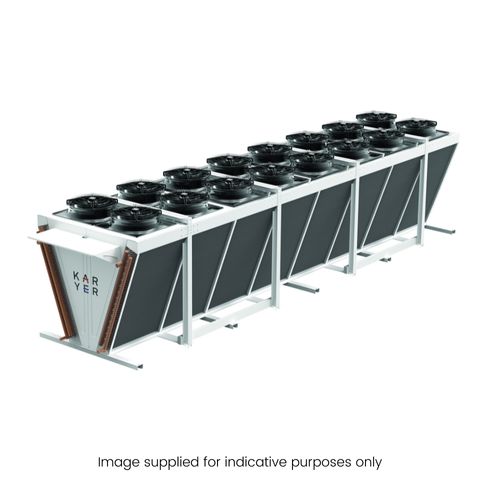

Karyer V-Type Air Cooled Condenser - 6 x 800mm EC Fans - KC332VT6800EC3

Karyer V-Type Air Cooled Condenser - 6 x 800mm EC Fans

Part Number: KC332VT6800EC3

Karyer V-Type Air Cooled Condenser - 6 x 800mm EC Fans

Part Number: KC332VT6800EC3
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • KC Series V-Type Remote Air Cooled Condensers with EC fan motors

    Karyer KC series V-Type remote air cooled condensers are designed in a compact V shape for high efficiency to provide professional solutions for industrial coolrooms, freezer applications, chillers and air conditioning projects.

    The V-Type condensers are highly efficient heat exchangers that provide an extremely small footprint for the large capacity ranges offered.

    KC series condensers are supplied with corrugated aluminium fin surface and optimum tube diameters for excellent heat transfer in order to increase efficiency.

    They are supplied with 2.1mm fin spacings and have a maximum operating pressure of 32 bar.

    These condensers are supplied with the latest EC fan technology utilising ebm three phase 800mm EC fan motor assemblies which are renowned worldwide for quality, reliability with high energy savings performance.



    The KC series standard features:

    • Quality three phase 800mm ebm EC fan motor assemblies.
    • High performance coils with an extremely small footprint for capacities offered.
    • Coils designed for multiple refrigerants with a maximum operating pressure of 32 bar.
    • Aluminium corrugated fin surface with 2.1mm spacings and high-performance copper tube.
    • Condensers are supplied with Hydrophilic fin treatment.
    • Fan motors individually pre-wired to an electrical connection box.
    • Stainless steel fasteners - screws, nuts & bolts etc.
    • Panels are galvanised sheet coated in Traffic White (RAL 9016) electrostatic powder coating.
  • Condenser Specifications
    Coil ConfigurationSingle Coil
    Heat Exchange Surface Area1198 m²
    Internal Tube Volume127 dm³
    Fin Spacing2.1 mm
    Maximum Pressure32 bar
    Inlet Connections2 x 54 mm
    Outlet Connections2 x 42 mm
    Weight Unpacked1653 kg
    Weight Packed1653 kg
    Fan Motor Specifications
    Fan Motor Qty6
    Fan Diameter800 mm
    Fan Motor TypeEC Fan
    Fan Maximum Speed940 RPM
    Fan Motor - High Speed
    Air Flow130842 m³/hr
    Total Watts11700 watts
    Total Amps (400V / 3 / 50Hz)18.6 amps
  • ebm Fan MotorsW3G800KS3903
  • Units Dimensions (mm)
    A2453
    B2300
    C3750
    E11150
    E21100
    F2230
    G4000
  • R134a
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    160000252000324000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R513A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    160000251000325000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R404A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    163000256000332000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R507
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    163000257000336000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    R449A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    163000258000338000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    Refrigerant capacities are calculated at middle points (not dew point)
    R448A
    TD @ 10 KTD
    Fan Speed (RPM)
    380680940
    163000258000339000

    Note:

    Based on 43°C Ambient & 53°C Condensing Temperature
    Refrigerant capacities are calculated at middle points (not dew point)
