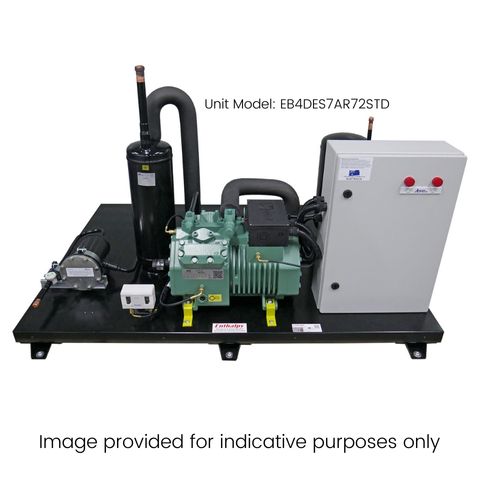

Enthalpy EB Basic Cond Unit- 3Ø - 9HP - STD - EB4CES9AR72STD

Enthalpy EB Basic Cond Unit- 3Ø - 9HP - STD

Part Number: EB4CES9AR72STD

Enthalpy EB Basic Cond Unit- 3Ø - 9HP - STD

Part Number: EB4CES9AR72STD

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy Semi Hermetic EB Series Basic Units

    STD - EB Basic Units

    Standard Features

    • Bitzer Ecoline Semi Hermetic Compressor
    • Oil Level Monitor (OLC-K1 or Delta PII)
    • Compressor Crankcase Oil Sight Glass
    • Crankcase Heater
    • Flat Unit Base (AR72)
    • Service Shut Off Valves
    • Discharge Vibration Eliminator
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Suction Accumulator
    • Liquid Receiver
    • Weatherproof Electrical Box
    • Pre-Wired to Electrical Box
    • Three Phase Contactors
    • Electronic Motor Protection Relays - (Phase Loss & Phase Imbalance Protection)
    • Dual Pressure Control
    • Oil Separator – Internal float
  • Condensing Unit Specifications
    Liquid Line Connection5/8 "
    Suction Line Connection1-1/8 "
    Receiver Capacity R404A12 Kg
    Max Continuous Current20.2 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeD.O.L.
    Crankcase HeaterPTC 240V / 1 / 50Hz

    Note: Bitzer Crankcase Heaters are internal PTC self-regulating 230 volts.

  • Compressor Model4CES9CY
    Compressor ContactorMC32A240V
    Compressor Electronic OverloadGMP403P40A
    Circuit Breaker Control CircuitPLSMD10
    Oil Separator (Internal Float)EOS1007
    Liquid Receiver1320620A
    Receiver Outlet ValveR051FB2DS
    Receiver Outlet Gasket020002800PK
    Unit Electrical BoxEUR604015
    Liquid Line Sight GlassSA15S
    Suction Accumulator1010854P
    Unit Start Delay TimerICM105
    Compressor Oil Monitor34733403
    Liquid Line Drier ShellNFDS487
    Liquid Line Drier CoreRC4864
    Dual Pressure ControlDNSD306X
