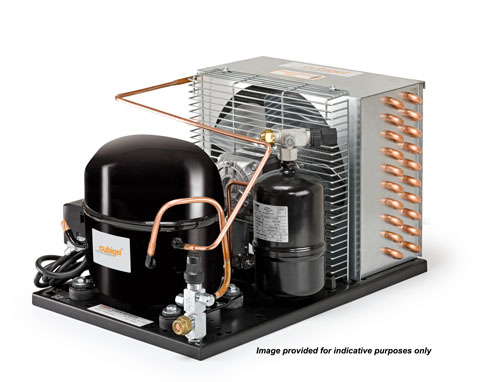

Cubigel Cond Unit High Efficiency MBP 1Ø CSR 3/8HP - CMPT12RA3NB

Cubigel Cond Unit High Efficiency MBP 1Ø CSR 3/8HP

Part Number: CMPT12RA3NB

Cubigel Cond Unit High Efficiency MBP 1Ø CSR 3/8HP

Part Number: CMPT12RA3NB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Cubigel condensing units are one of the highest quality fractional horsepower units available for the Australian market. The condensing units have many standard fitted features.

    The condensing units are rated to 43°C ambient. Compatible with most Common Refrigerants and Modern Low GWP Refrigerants. High efficiency Compressor model’s reduce energy consumption between 10%-30% compared to standard Compressors (CSR/CSIR).

    The Cubigel condensing unit is the most cost-effective fractional HP condensing unit available ranging in Compressor Displacements from 5.98 cm³ to 34.42 cm³. Suitable for High, Medium or Low Temperature Applications.

    Now available with optional factory fitted Drier, Sight glass and Dual Pressure Control saving time in installation for contractors.

    Standard Fitted Features:
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • ebm-papst Condenser Fans

    Options Fitted to Model's with P/N ending in 6PN:

    • Danfoss Drier
    • Danfoss Sight Glass
    • Danfoss Dual LP/HP Pressure control
    • Gomax flexible control hoses

  • Condensing Unit Specifications
    Weight31 Kg
    Liquid Line Connection3/8 "
    Suction Line Connection3/8 "
    Receiver Capacity2.4 L
    Compressor
    Nominal HP3/8 HP
    Max Continuous Current5.3 Amps
    Locked Rotor Amps18.5 Amps
    Voltage240V / 1 / 50Hz
    Motor TypeCSR
    Fan Motors
    Quantity1
    Diameter300 mm
    Voltage240V / 1 / 50Hz
  • cubigel_CUCA0039

    Units Dimensions (mm)
    W485
    D540
    H345
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-507.210
    3264180098611931426168621042279
    3859173890911011315155519412102
    4355669485510351237146218251976

    Note:

    Performance data based on 35°C return gas (ASHRAE conditions)
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-507.210
    3264180098611931426168621042279
    3859173890911011315155519412102
    4355669485510351237146218251976

    Note:

    Performance data based on 35°C return gas (ASHRAE conditions)
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-507.210
    3286810761314158720202197
    388009941217147218782040
    437509351147139117661917

    Note:

    Performance data based on 20°C return gas & inherent sub cooling
