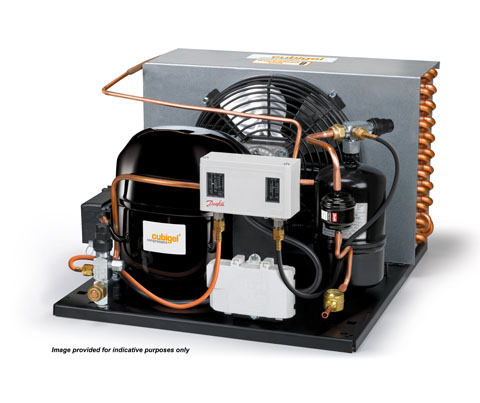

Cubigel Cond Unit HMBP 1Ø CSR- Drier, S/G, Press Cont 3/8HP - CMX16TBA6PNB

Cubigel Cond Unit HMBP 1Ø CSR- Drier, S/G, Press Cont 3/8HP

Part Number: CMX16TBA6PNB

Cubigel Cond Unit HMBP 1Ø CSR- Drier, S/G, Press Cont 3/8HP

Part Number: CMX16TBA6PNB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Cubigel condensing units are one of the highest quality fractional horsepower units available for the Australian market. The condensing units have many standard fitted features.

    The condensing units are rated to 43°C ambient. Compatible with most Common Refrigerants and Modern Low GWP Refrigerants. High efficiency Compressor model’s reduce energy consumption between 10%-30% compared to standard Compressors (CSR/CSIR).

    The Cubigel condensing unit is the most cost-effective fractional HP condensing unit available ranging in Compressor Displacements from 5.98 cm³ to 34.42 cm³. Suitable for High, Medium or Low Temperature Applications.

    Now available with optional factory fitted Drier, Sight glass and Dual Pressure Control saving time in installation for contractors.

    Standard Fitted Features:
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • ebm-papst Condenser Fans

    Options Fitted to Model's with P/N ending in 6PN:

    • Danfoss Drier
    • Danfoss Sight Glass
    • Danfoss Dual LP/HP Pressure control
    • Gomax flexible control hoses

  • Condensing Unit Specifications
    Weight32 Kg
    Liquid Line Connection3/8 "
    Suction Line Connection3/8 "
    Receiver Capacity2.4 L
    Compressor
    Nominal HP7/8 HP
    Max Continuous Current9 Amps
    Locked Rotor Amps34.5 Amps
    Voltage240V / 1 / 50Hz
    Motor TypeCSR
    Fan Motors
    Quantity1
    Diameter300 mm
    Voltage240V / 1 / 50Hz
  • cubigel_CUCA0037

    Units Dimensions (mm)
    W485
    D540
    H345
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-507.210
    32110513481580175020222137
    38101912431458161418651971
    4395811691370151717531853

    Note:

    Performance data based on 35°C return gas (ASHRAE conditions)
    Factory fitted with Dual Pressure Control, Liquid Line Drier & Sight Glass
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-507.210
    32110513481580175020222137
    38101912431458161418651971
    4395811691370151717531853

    Note:

    Performance data based on 35°C return gas (ASHRAE conditions)
    Factory fitted with Dual Pressure Control, Liquid Line Drier & Sight Glass
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-507.210
    3297312151456164719412060
    3889711231349152818041913
    4384110561271144316971798

    Note:

    Performance data based on 20°C return gas & inherent sub cooling
    Factory fitted with Dual Pressure Control, Liquid Line Drier & Sight Glass
