Cubigel Cond Unit LBP 1Ø CSIR 1/4HP - CML80FB3N

Cubigel Cond Unit LBP 1Ø CSIR 1/4HP

Part Number: CML80FB3N

Cubigel Cond Unit LBP 1Ø CSIR 1/4HP

Part Number: CML80FB3N
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel Hermetic Flat Base Condensing Units

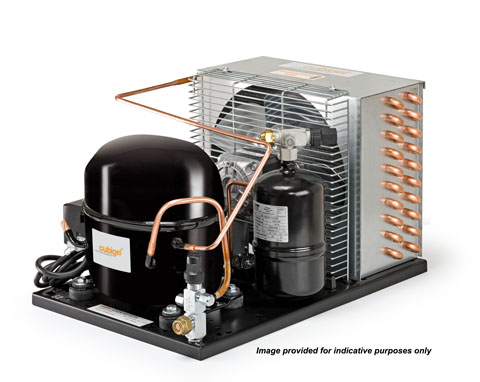

    Airefrig Australia’s range of Cubigel condensing units are one of the highest quality fractional horsepower units available for the Australian market. The condensing units have many standard fitted features.

    The condensing units are rated to 43°C ambient. Compatible with most Common Refrigerants and Modern Low GWP Refrigerants. High efficiency Compressor model’s reduce energy consumption between 10%-30% compared to standard Compressors (CSR/CSIR).

    The Cubigel condensing unit is the most cost-effective fractional HP condensing unit available ranging in Compressor Displacements from 5.98 cm³ to 34.42 cm³. Suitable for High, Medium or Low Temperature Applications.

    Now available with optional factory fitted Drier, Sight glass and Dual Pressure Control saving time in installation for contractors.

    Standard Fitted Features:
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • ebm-papst Condenser Fans

    Options Fitted to Model's with P/N ending in 6PN:

    • Danfoss Drier
    • Danfoss Sight Glass
    • Danfoss Dual LP/HP Pressure control
    • Gomax flexible control hoses

  • BrandCubigel
    Connections (Liquid)1/4" (6.5mm)
    Connections (Suction)3/8" (9.5mm)
    Fan Motor Assembly410351
    Motor FLA Amps2.21
    Motor TypeCSIR
    Motor Watts345
    Weight17.2kg

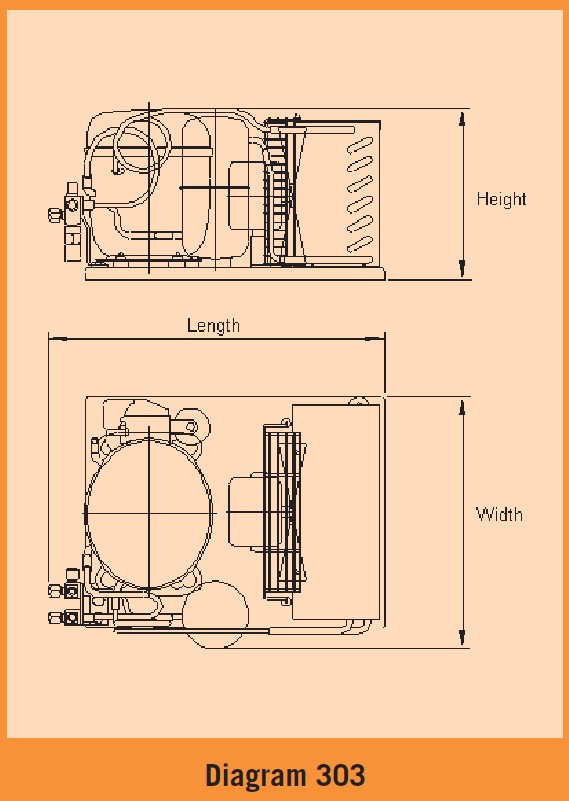

  • L: 425mm W: 325mm H: 220mm - Drawing Number 303

    Cubigel Cond Unit LBP 1Ø CSIR 1/4HP
