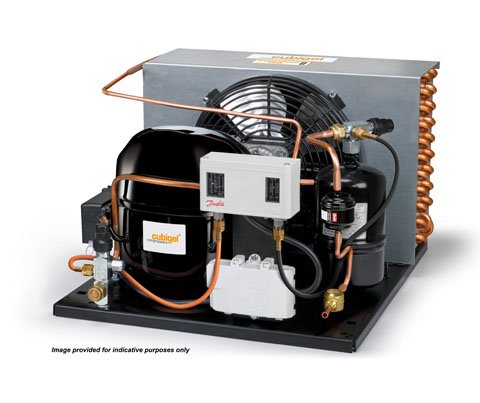

Cubigel CondUnit H-Eff HMBP 1Ø CSR-Drier,S/G,PressCont 1/2HP - CGPT18RA6PNB

Cubigel CondUnit H-Eff HMBP 1Ø CSR-Drier,S/G,PressCont 1/2HP

Part Number: CGPT18RA6PNB

Cubigel CondUnit H-Eff HMBP 1Ø CSR-Drier,S/G,PressCont 1/2HP

Part Number: CGPT18RA6PNB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Cubigel condensing units are one of the highest quality fractional horsepower units available for the Australian market. The condensing units have many standard fitted features.

    The condensing units are rated to 43°C ambient. Compatible with most Common Refrigerants and Modern Low GWP Refrigerants. High efficiency Compressor model’s reduce energy consumption between 10%-30% compared to standard Compressors (CSR/CSIR).

    The Cubigel condensing unit is the most cost-effective fractional HP condensing unit available ranging in Compressor Displacements from 5.98 cm³ to 34.42 cm³. Suitable for High, Medium or Low Temperature Applications.

    Now available with optional factory fitted Drier, Sight glass and Dual Pressure Control saving time in installation for contractors.

    Standard Fitted Features:
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • ebm-papst Condenser Fans

    Options Fitted to Model's with P/N ending in 6PN:

    • Danfoss Drier
    • Danfoss Sight Glass
    • Danfoss Dual LP/HP Pressure control
    • Gomax flexible control hoses

  • Condensing Unit Specifications
    Weight30 Kg
    Liquid Line Connection3/8 "
    Suction Line Connection3/8 "
    Receiver Capacity1.1 L
    Compressor
    Nominal HP1/2 HP
    Max Continuous Current5.5 Amps
    Locked Rotor Amps23 Amps
    Voltage240V / 1 / 50Hz
    Motor TypeCSR
    Fan Motors
    Quantity1
    Diameter254 mm
    Voltage240V / 1 / 50Hz
  • cubigel_CUCA0038

    Units Dimensions (mm)
    W485
    D540
    H305
  • R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-507.210
    327228761062128116551818
    38666808979118115261676
    43626760921111114351576

    Note:

    Performance data based on 35°C return gas (ASHRAE conditions)
    Factory fitted with Dual Pressure Control, Liquid Line Drier & Sight Glass
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-507.210
    327529091096131416801838
    386948381011121215501695
    43652788950113914571594

    Note:

    Performance data based on 35°C return gas (ASHRAE conditions)
    Factory fitted with Dual Pressure Control, Liquid Line Drier & Sight Glass
