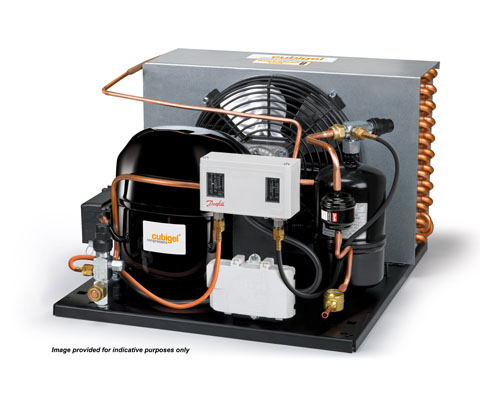

Cubigel CondUnit H-Eff LBP 1Ø CSR-Drier,S/G,PressCont 1/2HP - CMPT16LA6PN

Cubigel CondUnit H-Eff LBP 1Ø CSR-Drier,S/G,PressCont 1/2HP

Part Number: CMPT16LA6PN

Cubigel CondUnit H-Eff LBP 1Ø CSR-Drier,S/G,PressCont 1/2HP

Part Number: CMPT16LA6PN
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Cubigel condensing units are one of the highest quality fractional horsepower units available for the Australian market. The condensing units have many standard fitted features.

    The condensing units are rated to 43°C ambient. Compatible with most Common Refrigerants and Modern Low GWP Refrigerants. High efficiency Compressor model’s reduce energy consumption between 10%-30% compared to standard Compressors (CSR/CSIR).

    The Cubigel condensing unit is the most cost-effective fractional HP condensing unit available ranging in Compressor Displacements from 5.98 cm³ to 34.42 cm³. Suitable for High, Medium or Low Temperature Applications.

    Now available with optional factory fitted Drier, Sight glass and Dual Pressure Control saving time in installation for contractors.

    Standard Fitted Features:
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • ebm-papst Condenser Fans

    Options Fitted to Model's with P/N ending in 6PN:

    • Danfoss Drier
    • Danfoss Sight Glass
    • Danfoss Dual LP/HP Pressure control
    • Gomax flexible control hoses

  • Condensing Unit Specifications
    Weight24.8 Kg
    Liquid Line Connection3/8 "
    Suction Line Connection3/8 "
    Receiver Capacity1.1 L
    Compressor
    Nominal HP1/2 HP
    Max Continuous Current4 Amps
    Locked Rotor Amps19 Amps
    Voltage240V / 1 / 50Hz
    Motor TypeCSR
    Fan Motors
    Quantity1
    Diameter230 mm
    Voltage240V / 1 / 50Hz
  • cubigel_20160919_2e

    Units Dimensions (mm)
    W350
    L510
    H275
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    3243254666980184894210911248
    3839750261573678086610041148
    433574525536637027809031033

    Note:

    Performance data based on 32°C return gas (ASHRAE conditions)
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    3243254666980184894210911248
    3839750261573678086610041148
    433574525536637027809031033

    Note:

    Performance data based on 32°C return gas (ASHRAE conditions)
