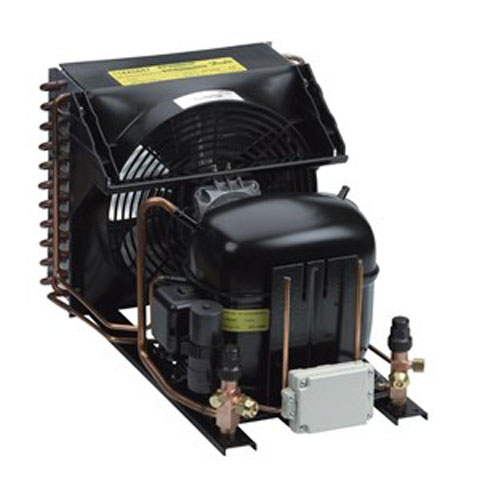

Danfoss Condensing Unit L/HBP 1Ø - 3/8HP - SC15GXT2
Danfoss Condensing Unit L/HBP 1Ø - 3/8HP
Part Number: SC15GXT2Danfoss Condensing Unit L/HBP 1Ø - 3/8HP
Part Number: SC15GXT2Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Danfoss Condensing Units
Danfoss condensing units are available for use with R134a, R404A & R507 refrigerants. Other refrigerant options are available upon request.
The Danfoss Black Star range of units are suitable for light commercial applications such as display counters, small cold rooms and catering appliances etc.
Condensing Unit Specifications | Weight | 19.6 Kg |
| Liquid Line Connection | 1/4 flare |
| Suction Line Connection | 3/8 flare |
| Total RLA | 3.39 Amps |
| Receiver Capacity R134A | 0 Kg |
Compressor | Nominal HP | 3/8 HP |
| Voltage | 198-254V / 1 / 50Hz |
| Motor Type | CSIR |
Fan Motors | Quantity | 1 |
| Diameter | 254 mm |
| Voltage | 220V / 1 / 50Hz 16w |
| Units Dimensions (mm) |
|---|
| H | 296 |
| W | 331 |
| D | 451 |
| a | 325 |
R134A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
|---|
| 32 | 348 | 463 | 591 | 731 | 882 | 1045 | 1220 | 1405 | 1603 |
Note:
Capacities @ 32ºC ambient based on CECOMAF conditions: Suction Gas Temperature +32ºC, Temperature of refrigerant @ condenser outlet is subcooled within the condensing limits of the unit.
No receiver or service valves fitted.
