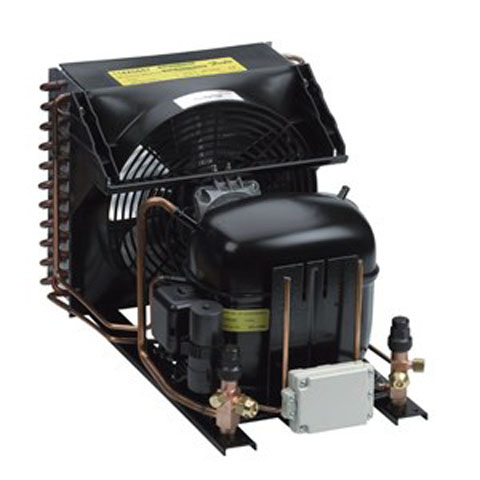

Danfoss Condensing Unit LBP 1Ø- 1/3HP - FR8.5CLXT2

Danfoss Condensing Unit LBP 1Ø- 1/3HP

Part Number: FR8.5CLXT2

Part Number: FR8.5CLXT2

Compare

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Danfoss Condensing Units
Danfoss condensing units are available for use with R134a, R404A & R507 refrigerants. Other refrigerant options are available upon request.
The Danfoss Black Star range of units are suitable for light commercial applications such as display counters, small cold rooms and catering appliances etc.
Condensing Unit Specifications
Weight 18.2 Kg
Liquid Line Connection 1/4 flare
Suction Line Connection 3/8 flare
Total RLA 2.17 Amps
Receiver Capacity R134A 0 Kg
Compressor
Nominal HP 1/3 HP
Voltage 198-254V / 1 / 50Hz
Motor Type CSIR
Fan Motors
Quantity 1
Diameter 230 mm
Voltage 220V / 1 / 50Hz 11w
Units Dimensions (mm)
H 256
W 321
D 444
a 325
R404A
Ambient (°C) Refrigeration Capacity (w)
Evaporating Temperature (°C)
-45 -40 -35 -30 -25 -20 -15 -10 -5
32 130 161 208 268 340 420 508 599 692
Note:
Capacities @ 32ºC ambient based on CECOMAF conditions: Suction Gas Temperature +32ºC, Temperature of refrigerant @ condenser outlet is subcooled within the condensing limits of the unit.
No receiver or service valves fitted.
R507
Ambient (°C) Refrigeration Capacity (w)
Evaporating Temperature (°C)
-45 -40 -35 -30 -25 -20 -15 -10 -5
32 130 161 208 268 340 420 508 599 692
Note:
Capacities @ 32ºC ambient based on CECOMAF conditions: Suction Gas Temperature +32ºC, Temperature of refrigerant @ condenser outlet is subcooled within the condensing limits of the unit.
No receiver or service valves fitted.
