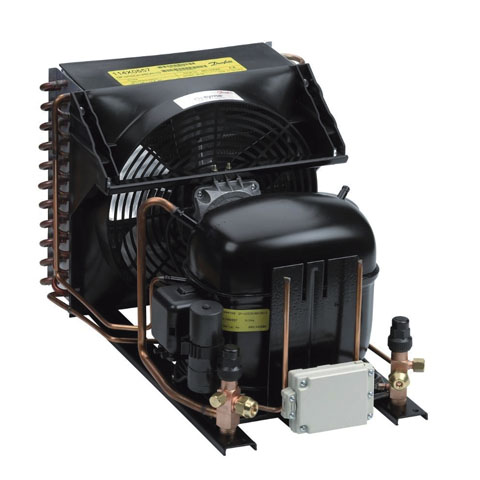

Danfoss Condensing Unit LBP 1Ø- 1.5HP - GS34CLXT2
Danfoss Condensing Unit LBP 1Ø- 1.5HP
Part Number: GS34CLXT2Danfoss Condensing Unit LBP 1Ø- 1.5HP
Part Number: GS34CLXT2Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Danfoss Condensing Units
Danfoss condensing units are available for use with R134a, R404A & R507 refrigerants. Other refrigerant options are available upon request.
The Danfoss Black Star range of units are suitable for light commercial applications such as display counters, small cold rooms and catering appliances etc.
Condensing Unit Specifications | Weight | 42 Kg |
| Liquid Line Connection | 3/8 ODS |
| Suction Line Connection | 5/8 ODS |
| Total RLA | 7.16 Amps |
| Receiver Capacity R404A | 1.94 Kg |
| Receiver Capacity R134A | 0 Kg |
Compressor | Nominal HP | 1.5 HP |
| Voltage | 198-254V / 1 / 50Hz |
| Motor Type | CSR |
Fan Motors | Quantity | 1 |
| Diameter | 300 mm |
| Voltage | 220V / 1 / 50Hz |
| Units Dimensions (mm) |
|---|
| H | 340 |
| W | 430 |
| D | 480 |
| a | 310 |
R404A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -45 | -40 | -35 | -30 | -25 | -20 | -15 | -10 |
|---|
| 32 | 450 | 650 | 850 | 1100 | 1350 | 1625 | 1900 | 2200 |
Note:
Capacities @ 32ºC ambient based on CECOMAF conditions: Suction Gas Temperature +32ºC, Temperature of refrigerant @ condenser outlet is subcooled within the condensing limits of the unit.
R507 | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -45 | -40 | -35 | -30 | -25 | -20 | -15 | -10 |
|---|
| 32 | 450 | 650 | 850 | 1100 | 1350 | 1625 | 1900 | 2200 |
Note:
Capacities @ 32ºC ambient based on CECOMAF conditions: Suction Gas Temperature +32ºC, Temperature of refrigerant @ condenser outlet is subcooled within the condensing limits of the unit.
