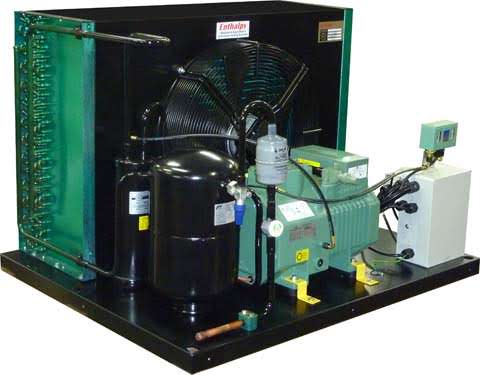

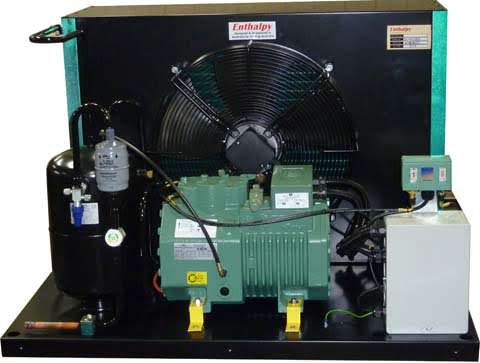

Enthalpy Semi Cond Unit - 3Ø 1.5HP - 2GES2Y2603

Enthalpy Semi Cond Unit - 3Ø 1.5HP

Part Number: 2GES2Y2603

Enthalpy Semi Cond Unit - 3Ø 1.5HP

Part Number: 2GES2Y2603
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy Semi-Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Bitzer Ecoline Compressor with Oil Sight Glass
    • Crankcase Heater
    • OLC-K1 Oil Level Monitor (4 Cylinder Compressors)
    • Service Shut Off Valves
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil Separator (Pre-charged with POE Oil)
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
    • Discharge Vibration Eliminator
    • ebmpapst Condenser Fans – Single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Pre - Wired Back to Junction Box
    • Nitrogen Holding Charge

    Options:
    • Suction Accumulator (factory fitted) (Not available for 2JES07Y1003)
    • Unit Weatherproof Cover (knockdown form)

  • Condensing Unit Specifications
    Weight113 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection5/8 "
    Receiver Capacity R404A4.29 Kg
    Compressor
    Nominal HP1.5 HP
    Max Continuous Current5 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater230V / 1 / 50Hz 60w
    Fan Motors
    Total FLA0.73 Amps
    Quantity1
    Diameter400 mm
    Voltage230V / 1 / 50Hz
  • Compressor2GES2Y
    ContactorMC12B240V
    OverloadGMP223P22A
    Circuit Breaker 1PLSMD10
    Oil Separator (Internal Float)EOS1004L
    Liquid Receiver1300134B
    Receiver Outlet ValveR051FA8DS
    Receiver Outlet Gasket20002800
    Electrical BoxAIRENTENCL
    Drier / Sight Glass ComboCSG084S
    Timer Start DelayICM105
    Oil Reservoir Separator Combo(no float)EOS1004L
    Saginomiya Pressure ControlDNSD306X
    Condenser Fan TypeS4E400AP0244
    Fan Speed ControllerRGEZ1N45MFQ1
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32954131817402224277533954088485556976613
    38809114115281970247430413673437151355965
    4369199913561765222927523334397546745430

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32954131817402224277533954088485556976613
    38809114115281970247430413673437151355965
    4369199913561765222927523334397546745430

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    3211421527197624973096378045565429
    3810311395181923112876352142525073
    439401286168921572695330740004779

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32681101614171894245431043843467856106640
    3856987212401677219127863464422850806021
    4345273310751482196025123144385546455517

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    3212661662212126483249393046955551
    3811441515194624403003363943555153
    4310431394180122672799339840724822

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
  • Notes for Commissioning:

    Set Dual Pressure Control to suit application.
    Set Fan Speed Control to suit application (ie: R134a).
    Adjust Motor Current Overload to suit application.
    Unit delivered with 1200 kpa nitrogen holding charge.
    Remove/adjust transport protection (Bitzer comps only).
    Check integrity of electrical connections/terminations.
    Check integrity of fixing screws & bolts etc.
