Enthalpy Semi Cond Unit - 3Ø 5.5HP- Accumulator Fitted - 4EES6Y8603ACC

Enthalpy Semi Cond Unit - 3Ø 5.5HP- Accumulator Fitted

Part Number: 4EES6Y8603ACC

Enthalpy Semi Cond Unit - 3Ø 5.5HP- Accumulator Fitted

Part Number: 4EES6Y8603ACC

Compare

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

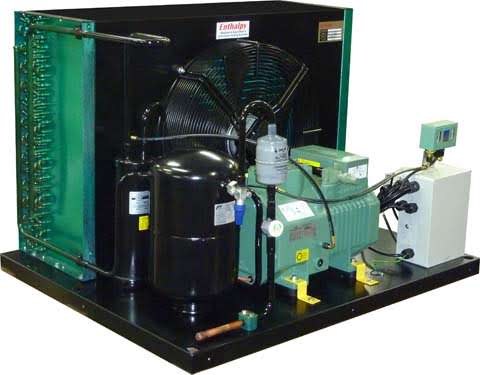

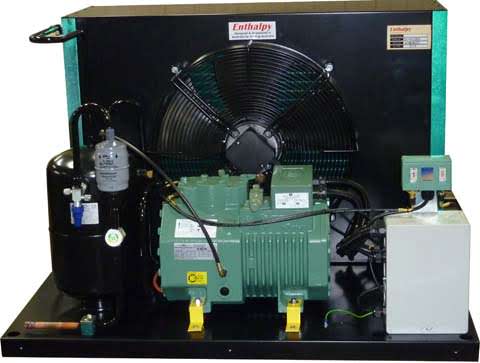

Enthalpy Semi Cond Unit - 3Ø 5.5HP- Accumulator Fitted

Enthalpy Semi-Hermetic Flat Base Condensing Units
Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.
The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.
The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.
Standard Fitted Features:
• Bitzer Ecoline Compressor with Oil Sight Glass
• Crankcase Heater
• OLC-K1 Oil Level Monitor (4 Cylinder Compressors)
• Service Shut Off Valves
• HP/LP Control
• Gomax Flexible Control Hoses
• Liquid Line Drier & Sight Glass
• Oil Separator (Pre-charged with POE Oil)
• Liquid Receiver
• Galvanised Black Powder Coated Unit Base
• Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
• Discharge Vibration Eliminator
• ebmpapst Condenser Fans – Single Phase
• Saginomiya Condenser Fan Speed Controller
• 3PH Contactor & Electronic Motor Protection Relay
• Phase Loss & Phase Imbalance Protection
• Pre - Wired Back to Junction Box
• Nitrogen Holding Charge
Options:
• Suction Accumulator (factory fitted) (Not available for 2JES07Y1003)
• Unit Weatherproof Cover (knockdown form)
Condensing Unit Specifications
Weight 315 Kg
Liquid Line Connection 5/8 "
Suction Line Connection 1-1/8 "
Receiver Capacity R404A 12 Kg
Compressor
Nominal HP 5.5 HP
Max Continuous Current 13.6 Amps
Voltage 380-400V / 3 / 50Hz
Motor Type DOL
Crankcase Heater 230V / 1 / 50Hz 120w
Fan Motors
Total FLA 3.1 Amps
Quantity 2
Diameter 450 mm
Voltage 230V / 1 / 50Hz

Compressor Model	4EES6Y
Compressor Contactor	MC22B240V
Compressor Electronic Overload	GMP223P22A
Circuit Breaker Control Circuit	PLSMD10
Circuit Breaker Condenser Fans	PLSMD16
Oil Separator (Internal Float)	EOS1007
Liquid Receiver	1320620A
Receiver Outlet Valve	R051FB2DS
Receiver Outlet Gasket	020002800
Unit Electrical Box	AIR50650
Liquid Line Drier / Sight Glass Combo	CSG165S
Unit Start Delay Timer	ICM105
Compressor Oil Monitor	34733403
Dual Pressure Control	DNSD306X
Condenser Fan Model (ebm)	S4E450AU0337
Fan Speed Controller	RGEZ1Q45MFQ1

R404A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	3196	4270	5548	7043	8767	10729	12931	15375	18057	20960
32	KTD	3.02	3.85	4.8	5.88	7.1	8.45	9.92	11.53	13.27	15.11
38	Refrigeration Capacity (w)	2816	3795	4958	6317	7881	9658	11647	13848	16253	18846
38	KTD	2.8	3.6	4.51	5.54	6.7	7.96	9.35	10.85	12.46	14.16
43	Refrigeration Capacity (w)	2495	3393	4460	5705	7136	8757	10567	12565	14739
43	KTD	2.61	3.38	4.25	5.24	6.33	7.54	8.85	10.26	11.76

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R507

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	3196	4270	5548	7043	8767	10729	12931	15375	18057	20960
32	KTD	3.02	3.85	4.8	5.88	7.1	8.45	9.92	11.53	13.27	15.11
38	Refrigeration Capacity (w)	2816	3795	4958	6317	7881	9658	11647	13848	16253	18846
38	KTD	2.8	3.6	4.51	5.54	6.7	7.96	9.35	10.85	12.46	14.16
43	Refrigeration Capacity (w)	2495	3393	4460	5705	7136	8757	10567	12565	14739
43	KTD	2.61	3.38	4.25	5.24	6.33	7.54	8.85	10.26	11.76

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R134A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-25	-20	-15	-10	-5	0	5	10
32	Refrigeration Capacity (w)	3743	4889	6246	7835	9672	11774	14154	16822
32	KTD	3.38	4.23	5.22	6.34	7.63	9.07	10.68	12.48
38	Refrigeration Capacity (w)	3394	4465	5732	7215	8928	10886	13101	15580
38	KTD	3.2	4.02	4.97	6.06	7.29	8.67	10.22	11.93
43	Refrigeration Capacity (w)	3105	4113	5307	6702	8313	10153	12231	14554
43	KTD	3.04	3.84	4.76	5.81	7	8.33	9.82	11.46

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R449A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	2484	3509	4745	6210	7927	9913	12193	14779	17689	20935
32	KTD	2.41	3.21	4.15	5.24	6.48	7.88	9.44	11.18	13.11	15.21
38	Refrigeration Capacity (w)	2151	3090	4227	5581	7171	9018	11138	13546	16254	19270
38	KTD	2.2	2.98	3.89	4.94	6.13	7.48	8.99	10.66	12.5	14.51
43	Refrigeration Capacity (w)	1885	2753	3808	5069	6555	8282	10268	12524	15059	17876
43	KTD	2.03	2.78	3.66	4.68	5.84	7.14	8.6	10.21	11.98	13.9

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R448A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	2479	3507	4747	6218	7940	9934	12224	14821	17741	21001
32	KTD	2.43	3.24	4.2	5.3	6.55	7.97	9.56	11.33	13.28	15.42
38	Refrigeration Capacity (w)	2146	3089	4230	5589	7187	9041	11171	13590	16309	19337
38	KTD	2.22	3.01	3.93	4.99	6.2	7.57	9.1	10.8	12.67	14.71
43	Refrigeration Capacity (w)	1880	2752	3811	5078	6570	8306	10301	12568	15115	17942
43	KTD	2.05	2.81	3.7	4.73	5.91	7.23	8.71	10.34	12.14	14.09

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R513A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-25	-20	-15	-10	-5	0	5	10
32	Refrigeration Capacity (w)	4112	5297	6686	8294	10136	12225	14569	17177
32	KTD	3.68	4.56	5.57	6.72	8.01	9.45	11.05	12.81
38	Refrigeration Capacity (w)	3721	4821	6110	7601	9307	11238	13403	15805
38	KTD	3.48	4.32	5.3	6.4	7.63	9	10.52	12.19
43	Refrigeration Capacity (w)	3397	4427	5631	7025	8618	10419	12434	14666
43	KTD	3.3	4.12	5.05	6.11	7.3	8.62	10.07	11.66

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

Notes for Commissioning:
●
Set Dual Pressure Control to suit application.
●
Set Fan Speed Control to suit application (ie: R134a).
●
Adjust Motor Current Overload to suit application.
●
Unit delivered with 1200 kpa nitrogen holding charge.
●
Remove/adjust transport protection (Bitzer comps only).
●
Check integrity of electrical connections/terminations.
●
Check integrity of fixing screws & bolts etc.
