Enthalpy Semi Cond Unit - 3Ø 5HP- Accumulator Fitted - 4FES5Y8603ACC

Enthalpy Semi Cond Unit - 3Ø 5HP- Accumulator Fitted

Part Number: 4FES5Y8603ACC

Enthalpy Semi Cond Unit - 3Ø 5HP- Accumulator Fitted

Part Number: 4FES5Y8603ACC

Compare

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

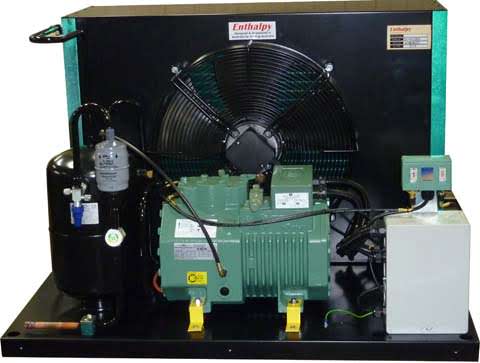

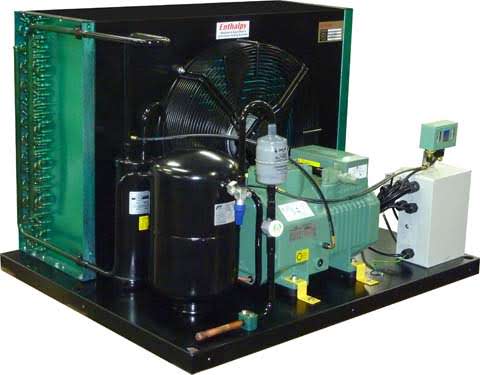

Enthalpy Semi Cond Unit - 3Ø 5HP- Accumulator Fitted

Enthalpy Semi-Hermetic Flat Base Condensing Units
Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.
The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.
The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.
Standard Fitted Features:
• Bitzer Ecoline Compressor with Oil Sight Glass
• Crankcase Heater
• OLC-K1 Oil Level Monitor (4 Cylinder Compressors)
• Service Shut Off Valves
• HP/LP Control
• Gomax Flexible Control Hoses
• Liquid Line Drier & Sight Glass
• Oil Separator (Pre-charged with POE Oil)
• Liquid Receiver
• Galvanised Black Powder Coated Unit Base
• Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
• Discharge Vibration Eliminator
• ebmpapst Condenser Fans – Single Phase
• Saginomiya Condenser Fan Speed Controller
• 3PH Contactor & Electronic Motor Protection Relay
• Phase Loss & Phase Imbalance Protection
• Pre - Wired Back to Junction Box
• Nitrogen Holding Charge
Options:
• Suction Accumulator (factory fitted) (Not available for 2JES07Y1003)
• Unit Weatherproof Cover (knockdown form)
Condensing Unit Specifications
Weight 315 Kg
Liquid Line Connection 5/8 "
Suction Line Connection 1-1/8 "
Receiver Capacity R404A 12 Kg
Compressor
Max Continuous Current 10.8 Amps
Voltage 380-400V / 3 / 50Hz
Motor Type DOL
Crankcase Heater 230V / 1 / 50Hz 120w
Fan Motors
Total FLA 3.1 Amps
Quantity 2
Diameter 450 mm
Voltage 230V / 1 / 50Hz

Compressor Contactor	MC22B240V
Compressor Electronic Overload	GMP223P22A
Compressor Model	4FES5Y
Condenser Fan Model (ebm)	S4E450AU0337
Control Fuse	10G10
Control Fuse Holder	CMS101
Dual Pressure Control	DNSD306X
Fan Fuse	10G16
Fan Fuse Holder	CMS101
Fan Speed Controller	RGEZ1Q45MFQ1
Liquid Line Drier / Sight Glass Combo	CSG165S
Liquid Receiver	1320620A
Oil Separator (Internal Float)	EOS1007
Receiver Outlet Gasket	20002800
Receiver Outlet Valve	2605101620
Suction Accumulator	1010853P
Unit Electrical Box	AIR50650

R404A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	2649	3515	4550	5771	7190	8819	10665	12729	15017	17527
32	KTD	2.51	3.17	3.93	4.8	5.77	6.86	8.06	9.38	10.81	12.35
38	Refrigeration Capacity (w)	2362	3152	4096	5205	6491	7963	9624	11477	13523	15758
38	KTD	2.36	3	3.72	4.54	5.46	6.48	7.6	8.82	10.14	11.54
43	Refrigeration Capacity (w)	2115	2841	3706	4721	5895	7234	8742	10417	12260
43	KTD	2.22	2.83	3.53	4.31	5.18	6.14	7.2	8.33	9.55

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R507

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	2649	3515	4550	5771	7190	8819	10665	12729	15017	17527
32	KTD	2.51	3.17	3.93	4.8	5.77	6.86	8.06	9.38	10.81	12.35
38	Refrigeration Capacity (w)	2362	3152	4096	5205	6491	7963	9624	11477	13523	15758
38	KTD	2.36	3	3.72	4.54	5.46	6.48	7.6	8.82	10.14	11.54
43	Refrigeration Capacity (w)	2115	2841	3706	4721	5895	7234	8742	10417	12260
43	KTD	2.22	2.83	3.53	4.31	5.18	6.14	7.2	8.33	9.55

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R134A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-25	-20	-15	-10	-5	0	5	10
32	Refrigeration Capacity (w)	2696	3617	4728	6051	7603	9404	11471	13820
32	KTD	2.47	3.15	3.95	4.88	5.95	7.17	8.55	10.1
38	Refrigeration Capacity (w)	2418	3275	4308	5537	6981	8655	10573	12750
38	KTD	2.31	2.96	3.74	4.63	5.65	6.82	8.13	9.6
43	Refrigeration Capacity (w)	2182	2986	3955	5109	6463	8031	9827	11864
43	KTD	2.16	2.8	3.55	4.41	5.39	6.51	7.77	9.17

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R449A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	2023	2855	3861	5059	6469	8110	10002	12166	14619	17380
32	KTD	1.97	2.62	3.38	4.25	5.25	6.38	7.65	9.06	10.64	12.38
38	Refrigeration Capacity (w)	1757	2520	3446	4554	5862	7388	9151	11169	13457	16031
38	KTD	1.82	2.44	3.17	4.01	4.97	6.06	7.28	8.64	10.15	11.81
43	Refrigeration Capacity (w)	1545	2250	3110	4143	5366	6795	8448	10342	12489	14903
43	KTD	1.68	2.28	2.99	3.81	4.74	5.79	6.97	8.28	9.73	11.31

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R448A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	2019	2854	3863	5066	6481	8129	10030	12203	14667	17441
32	KTD	1.99	2.65	3.41	4.3	5.31	6.45	7.74	9.18	10.78	12.55
38	Refrigeration Capacity (w)	1754	2519	3449	4561	5876	7409	9181	11208	13507	16094
38	KTD	1.83	2.46	3.2	4.05	5.03	6.14	7.38	8.76	10.29	11.97
43	Refrigeration Capacity (w)	1542	2249	3113	4151	5380	6817	8479	10382	12541	14966
43	KTD	1.7	2.31	3.02	3.85	4.79	5.86	7.06	8.39	9.86	11.47

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R513A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-25	-20	-15	-10	-5	0	5	10
32	Refrigeration Capacity (w)	2992	3952	5097	6445	8013	9816	11867	14179
32	KTD	2.7	3.41	4.24	5.2	6.28	7.51	8.88	10.41
38	Refrigeration Capacity (w)	2682	3570	4629	5875	7324	8988	10879	13007
38	KTD	2.52	3.21	4	4.91	5.95	7.11	8.41	9.85
43	Refrigeration Capacity (w)	2420	3248	4236	5398	6748	8297	10055	12031
43	KTD	2.36	3.02	3.79	4.66	5.65	6.77	8	9.37

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.

Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
