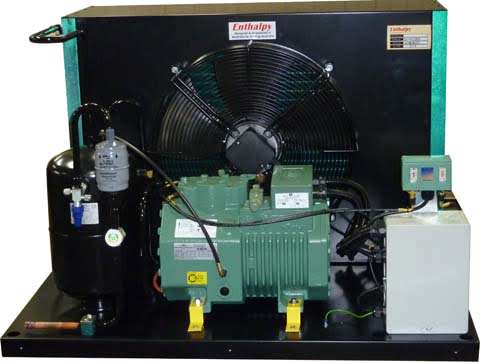

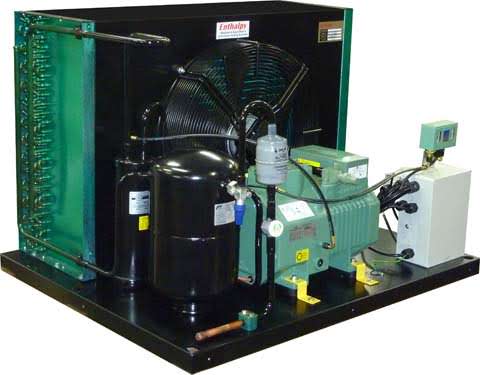

Enthalpy Semi Cond Unit - 3Ø 9HP- Accumulator Fitted - 4CES9Y11003ACC

Enthalpy Semi Cond Unit - 3Ø 9HP- Accumulator Fitted

Part Number: 4CES9Y11003ACC

Enthalpy Semi Cond Unit - 3Ø 9HP- Accumulator Fitted

Part Number: 4CES9Y11003ACC
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy Semi-Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Bitzer Ecoline Compressor with Oil Sight Glass
    • Crankcase Heater
    • OLC-K1 Oil Level Monitor (4 Cylinder Compressors)
    • Service Shut Off Valves
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil Separator (Pre-charged with POE Oil)
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
    • Discharge Vibration Eliminator
    • ebmpapst Condenser Fans – Single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Pre - Wired Back to Junction Box
    • Nitrogen Holding Charge

    Options:
    • Suction Accumulator (factory fitted) (Not available for 2JES07Y1003)
    • Unit Weatherproof Cover (knockdown form)

  • Condensing Unit Specifications
    Weight327 Kg
    Liquid Line Connection5/8 "
    Suction Line Connection1-1/8 "
    Receiver Capacity R404A12 Kg
    Compressor
    Nominal HP9 HP
    Max Continuous Current20.2 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater230V / 1 / 50Hz 120w
    Fan Motors
    Total FLA6 Amps
    Quantity2
    Diameter500 mm
    Voltage230V / 1 / 50Hz
  • Compressor Model4CES9Y
    Compressor ContactorMC32A240V
    Compressor Electronic OverloadGMP403P40A
    Circuit Breaker Control CircuitPLSMD10
    Circuit Breaker Condenser FansPLSMD16
    Oil Separator (Internal Float)EOS1007
    Liquid Receiver1320620A
    Receiver Outlet ValveR051FB2DS
    Receiver Outlet Gasket020002800
    Unit Electrical BoxAIR50650
    Liquid Line Drier / Sight Glass ComboCSG165S
    Unit Start Delay TimerICM105
    Compressor Oil Monitor34733403
    Dual Pressure ControlDNSD306X
    Condenser Fan Model (ebm)S4E500AM0301
    Fan Speed ControllerRGEZ1Q45MFQ1
  • Enthalpy_Semi-Herm-D
  • FBTDBIT2FAN(160216)FBTDBIT2FAN(010114)
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3246226174799910118125471530518393218162556829635
    384058547071369075113011382616650197752318426862
    43360749026436822310275126011519918067

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3246226174799910118125471530518393218162556829635
    384058547071369075113011382616650197752318426862
    43360749026436822310275126011519918067

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    325229685688001108913744167852022324065
    384772628880971022612695155181870622263
    43438458087508950611820144651744720767

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.
    Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    323721517469188980113841416117328209012489729318
    383267459962058111103411292015863191842289226985
    43290441375629740694881189914652177582121725026

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    325749743594261174314401174142078824523
    385231679286341077413227160031910622535
    43479262507968996212246148261770520879

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
  • Notes for Commissioning:

    Set Dual Pressure Control to suit application.
    Set Fan Speed Control to suit application (ie: R134a).
    Adjust Motor Current Overload to suit application.
    Unit delivered with 1200 kpa nitrogen holding charge.
    Remove/adjust transport protection (Bitzer comps only).
    Check integrity of electrical connections/terminations.
    Check integrity of fixing screws & bolts etc.
