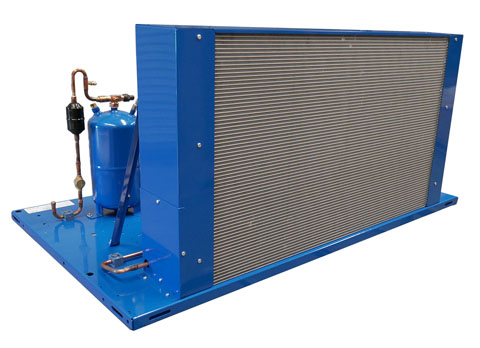

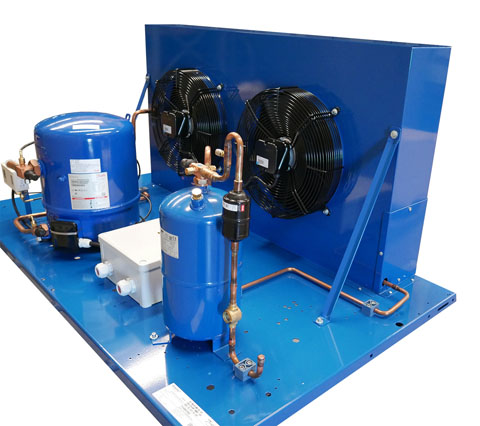

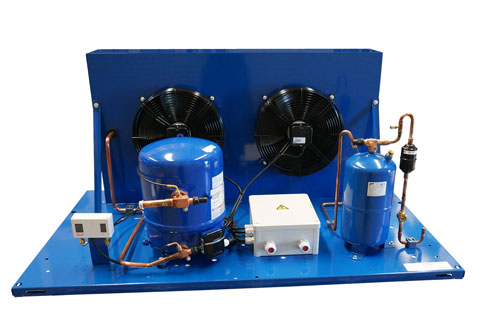

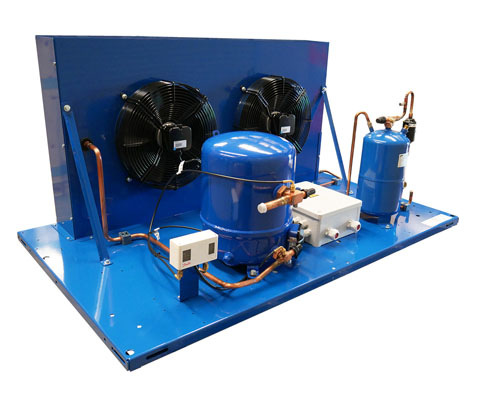

Optyma Commercial Flat Base Cond Unit - Low Temp - 3Ø 1-5/8HP - OPLGQN096NTA14E
Optyma Commercial Flat Base Cond Unit - Low Temp - 3Ø 1-5/8HP
Part Number: OPLGQN096NTA14EOptyma Commercial Flat Base Cond Unit - Low Temp - 3Ø 1-5/8HP
Part Number: OPLGQN096NTA14ESign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Optyma Blue Flat Base Units
Standard Features
- Suitable for Multiple Refrigerants (R134A, R513A, R404A/R507,R449A/R448A & R452A)
- Dedicated Low or Medium Temperature Units
- ebm-papst 6 Pole AC Fan Motor Assemblies
- Maneurop Hermetic Reciprocating Compressors
- Compressor Oil Sight Glass
- PTC Crankcase Heater
- Service Shut Off Valves
- Dual Pressure Control
- Gomax Pressure Control Lines
- Liquid Line Drier & Sight Glass
- Liquid Receiver
- Compressor Contactor & Overload Relay
- Pre-wired to Electrical Box
Externally mounted Service Ports
- Fast and easy installation
- Quick connections of suction & liquid lines
- Shut off valves on receiver
- Service valves with ports for easy servicing
Micro Channel Condenser Coil
- Easy and fast cleaning
- Less refrigerant charge
- Longer life time
- High Efficiency
Condensing Unit Specifications | Weight | 134 Kg |
| Liquid Line Connection | 1/2 " |
| Suction Line Connection | 7/8 " |
| Receiver Capacity | 7.3 L |
Compressor | Max Continuous Current | 10.1 Amps |
| Locked Rotor Amps | 32 Amps |
| Voltage | 400V / 3 / 50Hz |
| Motor Type | D.O.L. |
| Crankcase Heater | PTC 27watt 230-600V |
Fan Motors | Total FLA | 0.7 Amps |
| Quantity | 2 |
| Diameter | 350 mm |
| Voltage | 230V / 1 / 50Hz |
| Compressor | 120F0234 |
| Comp Suction Service Valve | 7968016 |
| Comp Discharge Service Valve | 7968013 |
| ebm Fan Motor Assembly | 118U0390 |
| PTC Crankcase Heater | 120Z0459 |
| Liquid Receiver | 8168181 |
| Receiver Shut Off Valve | 7968014 |
| Unit Contactor | 118U5263 |
| Unit Overload Relay | 118U5267 |
| Liquid Line Filter Drier | DML084S |
| Liquid Line Sight Glass | SGP12NSR410A |
| HP/LP Control | 060-539766 |
| Condenser Coil | 118U1004 |
R404A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -40 | -35 | -30 | -25 | -20 | -15 | -10 |
|---|
| 32 | 1458 | 2073 | 2850 | 3809 | 4964 | 6330 | 7918 |
| 38 | 1171 | 1717 | 2411 | 3270 | 4312 | 5552 | 7001 |
| 43 | | 1419 | 2039 | 2812 | 3757 | 4888 | |
| 46 | | 1243 | 1817 | 2537 | 3421 | 4485 | |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
R507 | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -40 | -35 | -30 | -25 | -20 | -15 | -10 |
|---|
| 32 | 1458 | 2073 | 2850 | 3809 | 4964 | 6330 | 7918 |
| 38 | 1171 | 1717 | 2411 | 3270 | 4312 | 5552 | 7001 |
| 43 | | 1419 | 2039 | 2812 | 3757 | 4888 | |
| 46 | | 1243 | 1817 | 2537 | 3421 | 4485 | |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
R452A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -35 | -30 | -25 | -20 | -15 | -10 |
|---|
| 32 | 2141 | 2938 | 3908 | 5061 | 6404 | 7942 |
| 38 | 1803 | 2509 | 3376 | 4413 | 5628 | 7029 |
| 43 | | 2158 | 2936 | 3873 | 4981 | |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
Danfoss Optyma Blue Flat Base Condensing Units
Micro Channel Heat Exchanger technology | A whole new level of system efficiency
