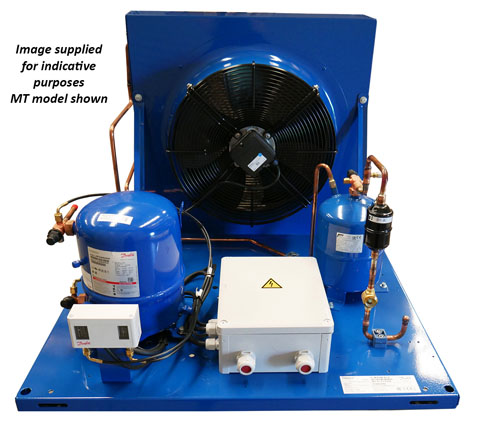

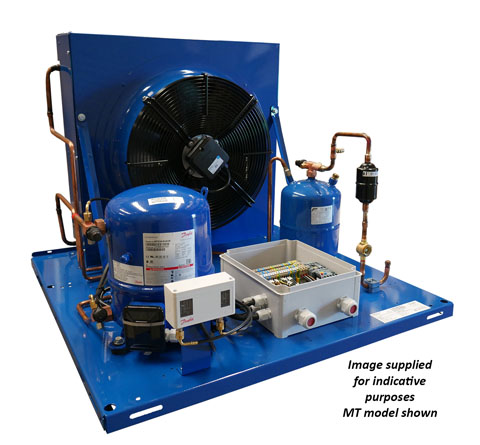

Optyma Commercial Flat Base Cond Unit - Low Temp - 1Ø 1-1/2HP

Part Number: OPLCQN068NTA14GNB

Optyma Commercial Flat Base Cond Unit - Low Temp - 1Ø 1-1/2HP

Part Number: OPLCQN068NTA14GNB
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Optyma Commercial Flat Base Cond Unit - Low Temp - 1Ø 1-1/2HP
Optyma Commercial Flat Base Cond Unit - Low Temp - 1Ø 1-1/2HP
Optyma Commercial Flat Base Cond Unit - Low Temp - 1Ø 1-1/2HPOptyma Commercial Flat Base Cond Unit - Low Temp - 1Ø 1-1/2HP

  • Optyma Blue Flat Base Units

    Standard Features

    • Suitable for Multiple Refrigerants (R134A, R513A, R404A/R507,R449A/R448A & R452A)
    • Dedicated Low or Medium Temperature Units
    • ebm-papst 6 Pole AC Fan Motor Assemblies
    • Maneurop Hermetic Reciprocating Compressors
    • Compressor Oil Sight Glass
    • PTC Crankcase Heater
    • Service Shut Off Valves
    • Dual Pressure Control
    • Gomax Pressure Control Lines
    • Liquid Line Drier & Sight Glass
    • Liquid Receiver
    • Compressor Contactor & Overload Relay
    • Pre-wired to Electrical Box

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

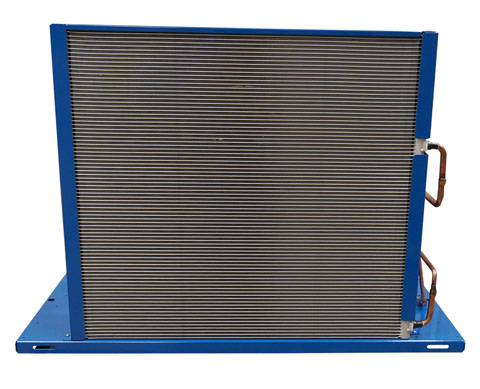

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency
  • Condensing Unit Specifications
    Weight89 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection5/8 "
    Receiver Capacity5.2 L
    Compressor
    Max Continuous Current17 Amps
    Locked Rotor Amps53 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase HeaterPTC 27watt 230-600V
    Fan Motors
    Total FLA0.65 Amps
    Quantity1
    Diameter450 mm
    Voltage230V / 1 / 50Hz
  • Compressor120F0232
    Comp Suction Service Valve7968014
    Comp Discharge Service Valve7968013
    ebm Fan Motor Assembly118U0391
    PTC Crankcase Heater120Z0459
    Liquid Receiver8168180
    Receiver Shut Off Valve7968013
    Unit Contactor118U5261
    Unit Overload Relay118U5265
    Comp Start Relay8173022
    Comp Start Cap8173001
    Comp Run Cap8173041
    Liquid Line Filter DrierDML084S
    Liquid Line Sight GlassSGP12NSR410A
    HP/LP Control060-539766
    Condenser Coil118U5218

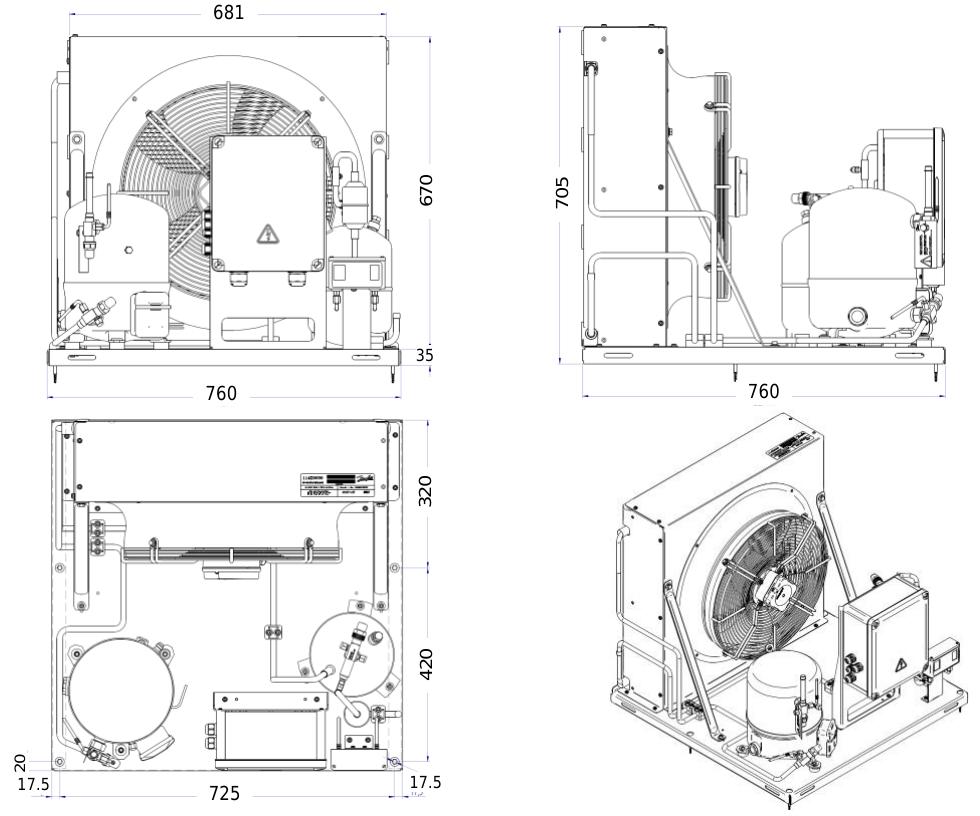

  • danfoss_blue_dim_DNFB02
  • danfoss_blue_elec_1
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10
    321139152719802494306036684307
    38971131417112157264931763731
    4311361486187923092769
    4610291352171221052525

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10
    321139152719802494306036684307
    38971131417112157264931763731
    4311361486187923092769
    4610291352171221052525

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R452A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -35-30-25-20-15-10
    32146719242433298835834209
    38120916222081258131163678
    431378179422472731

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
