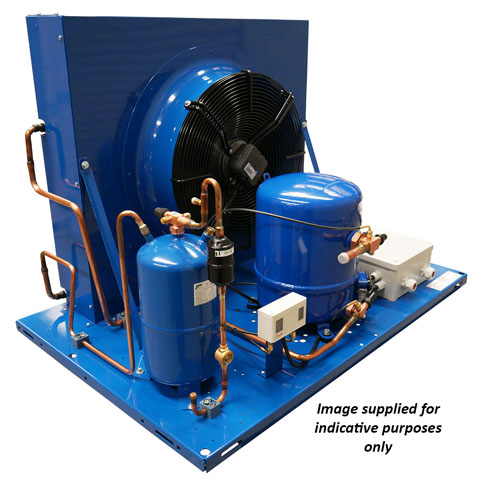

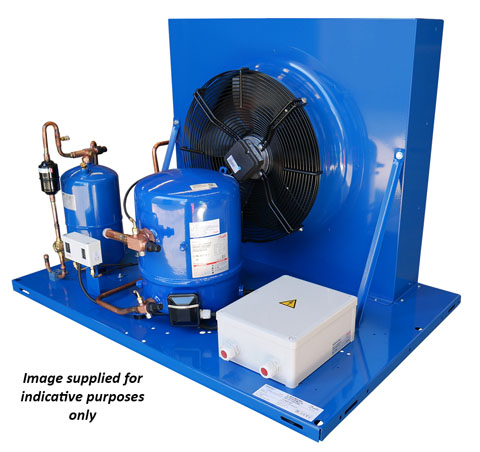

Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3HP

Part Number: OPMCRN096MTA14E

Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3HP

Part Number: OPMCRN096MTA14E
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3HP
Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3HP
Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3HPOptyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3HP

  • Optyma Blue Flat Base Units

    Standard Features

    • Suitable for Multiple Refrigerants (R134A, R513A, R404A/R507,R449A/R448A & R452A)
    • Dedicated Low or Medium Temperature Units
    • ebm-papst 6 Pole AC Fan Motor Assemblies
    • Maneurop Hermetic Reciprocating Compressors
    • Compressor Oil Sight Glass
    • PTC Crankcase Heater
    • Service Shut Off Valves
    • Dual Pressure Control
    • Gomax Pressure Control Lines
    • Liquid Line Drier & Sight Glass
    • Liquid Receiver
    • Compressor Contactor & Overload Relay
    • Pre-wired to Electrical Box

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

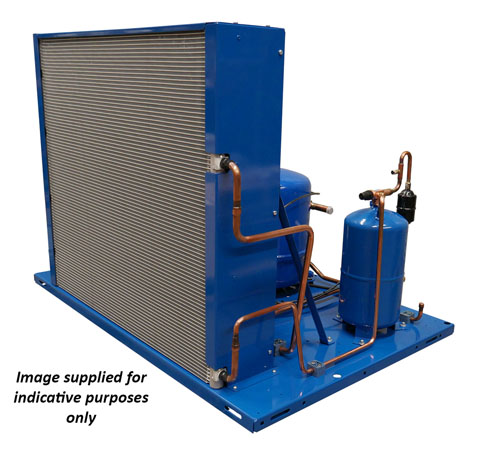

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency
  • Condensing Unit Specifications
    Weight140 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection7/8 "
    Compressor
    Max Continuous Current13.5 Amps
    Locked Rotor Amps64 Amps
    Voltage400V / 3 / 50Hz
    Motor TypeD.O.L.
    Crankcase HeaterPTC 27watt 230-600V
    Fan Motors
    Total FLA0.97 Amps
    Quantity1
    Diameter500 mm
    Voltage230V / 1 / 50Hz
  • CompressorMTZ564VI
    Comp Suction Service Valve7968017
    Comp Discharge Service Valve7968013
    ebm Fan Motor Assembly118U0392
    PTC Crankcase Heater120Z0459
    Liquid Receiver8168181
    Receiver Shut Off Valve7968014
    Unit Contactor118U5263
    Unit Overload Relay118U5268
    Liquid Line Filter DrierDML164S
    Liquid Line Sight GlassSGP12NSR410A
    HP/LP Control060-539766
    Condenser Coil118U5219
  • danfoss_blue_dim_DFB04
  • danfoss_blue_elec_3
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324680612578099738119121432616972
    384037533268458583105501274315156
    4335264696606576449436
    4632284323560670898776

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324680612578099738119121432616972
    384037533268458583105501274315156
    4335264696606576449436
    4632284323560670898776

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324012535069168712107361297915429
    38353447586187782796781173413986
    4331274257557370848791
    4628803953520266358257

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324012535069168712107361297915429
    38353447586187782796781173413986
    4331274257557370848791
    4628803953520266358257

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3219992935409354927145906311249
    3816802541361149086447823710286
    431442224032344444588575679499
    461313207230204176555771749036

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3224703425458559627564939611462
    3821443002405453116783847610394
    431908268336414796615777329524
    461784250734074500579372969012

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R425A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-505
    32335145355930754493771142413675
    38289139715237669783551020812250
    43249534844638596774769165
    46225431864271551969388528

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.

  • Danfoss Optyma Blue Flat Base Condensing Units



    Micro Channel Heat Exchanger technology | A whole new level of system efficiency
