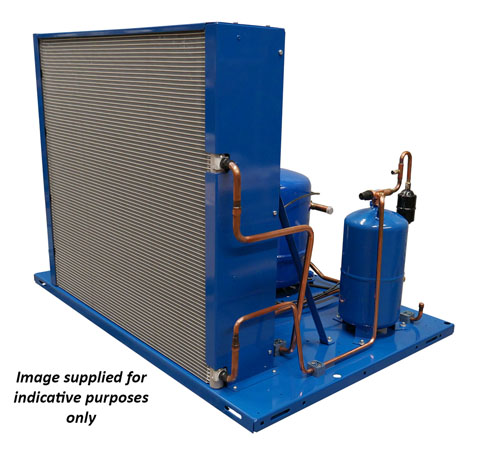

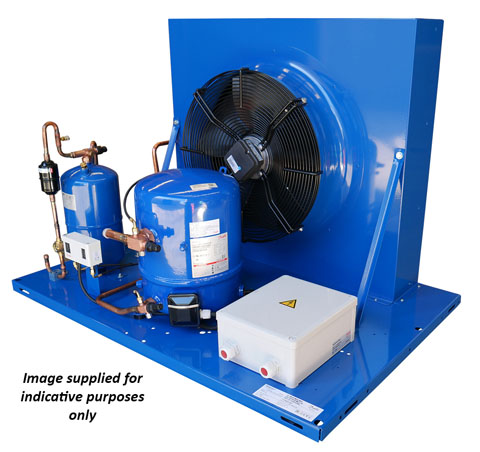

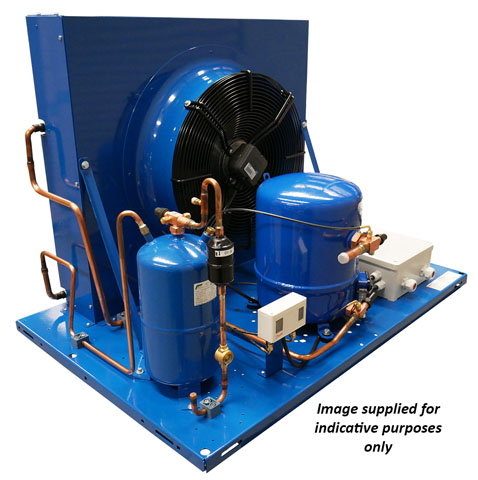

Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3-5/8HP

Part Number: OPMCRN108MTA14E

Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3-5/8HP

Part Number: OPMCRN108MTA14E
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3-5/8HP
Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3-5/8HP
Optyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3-5/8HPOptyma Commercial Flat Base Cond Unit - Med Temp - 3Ø 3-5/8HP

  • Optyma Blue Flat Base Units

    Standard Features

    • Suitable for Multiple Refrigerants (R134A, R513A, R404A/R507,R449A/R448A & R452A)
    • Dedicated Low or Medium Temperature Units
    • ebm-papst 6 Pole AC Fan Motor Assemblies
    • Maneurop Hermetic Reciprocating Compressors
    • Compressor Oil Sight Glass
    • PTC Crankcase Heater
    • Service Shut Off Valves
    • Dual Pressure Control
    • Gomax Pressure Control Lines
    • Liquid Line Drier & Sight Glass
    • Liquid Receiver
    • Compressor Contactor & Overload Relay
    • Pre-wired to Electrical Box

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency
  • Condensing Unit Specifications
    Weight160 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection7/8 "
    Receiver Capacity7.3 L
    Compressor
    Max Continuous Current13.5 Amps
    Locked Rotor Amps64 Amps
    Voltage400V / 3 / 50Hz
    Motor TypeD.O.L.
    Crankcase HeaterPTC 27watt 230-600V
    Fan Motors
    Total FLA0.97 Amps
    Quantity1
    Diameter500 mm
    Voltage230V / 1 / 50Hz
  • CompressorMTZ644VI
    Comp Suction Service Valve7968017
    Comp Discharge Service Valve7968013
    ebm Fan Motor Assembly118U0392
    PTC Crankcase Heater120Z0459
    Liquid Receiver8168181
    Receiver Shut Off Valve7968014
    Unit Contactor118U5263
    Unit Overload Relay118U5268
    Liquid Line Filter DrierDML164S
    Liquid Line Sight GlassSGP12NSR410A
    HP/LP Control060-539766
    Condenser Coil118U5219
  • danfoss_blue_dim_DFB04
  • danfoss_blue_elec_3
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3255377154903311178135881625419166
    384780623379239856120351445617108
    43415954727002875710742
    4637915019645180989966

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3255377154903311178135881625419166
    384780623379239856120351445617108
    43415954727002875710742
    4637915019645180989966

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324679614778349737118501416216659
    384084542569708716106601279315101
    4336054839626378779678
    4633264494584573799094

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324679614778349737118501416216659
    384084542569708716106601279315101
    4336054839626378779678
    4633264494584573799094

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    32227833854727631981671027312635
    3819102956421457007422938511587
    4316112607379651946812865410724
    4614352402355048956450822110211

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    32287539335209671784661046312711
    3824953456462060037614946111548
    4322033081415054266920864010592
    4620392866387850896511815510025

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R425A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-505
    323988529568098533104661260114926
    38341546035975753792891122713343
    432946402952796701829810069
    46266936874861619777009369

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.

  • Danfoss Optyma Blue Flat Base Condensing Units



    Micro Channel Heat Exchanger technology | A whole new level of system efficiency
