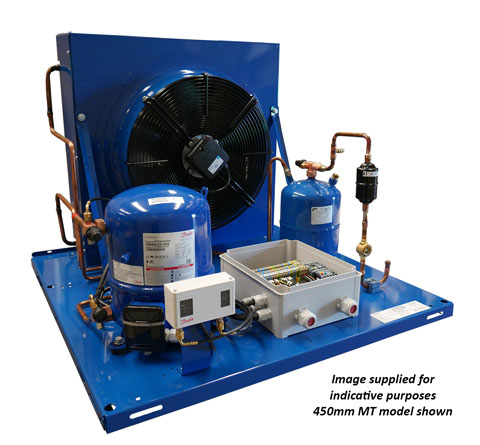

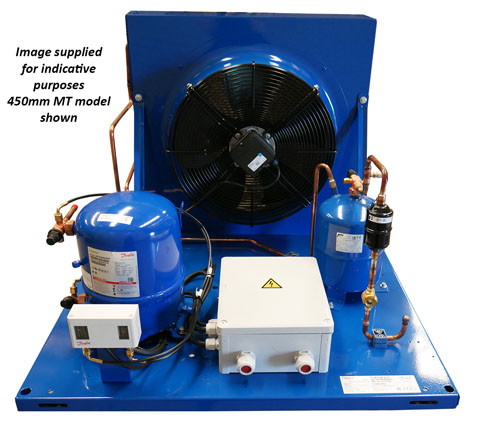

Optyma Commercial Flat Base Cond Unit - Med Temp - 1Ø 1-1/8HP

Part Number: OPMCRN038MTA14G

Optyma Commercial Flat Base Cond Unit - Med Temp - 1Ø 1-1/8HP

Part Number: OPMCRN038MTA14G
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Optyma Commercial Flat Base Cond Unit - Med Temp - 1Ø 1-1/8HP
Optyma Commercial Flat Base Cond Unit - Med Temp - 1Ø 1-1/8HP
Optyma Commercial Flat Base Cond Unit - Med Temp - 1Ø 1-1/8HPOptyma Commercial Flat Base Cond Unit - Med Temp - 1Ø 1-1/8HP

  • Optyma Blue Flat Base Units

    Standard Features

    • Suitable for Multiple Refrigerants (R134A, R513A, R404A/R507,R449A/R448A & R452A)
    • Dedicated Low or Medium Temperature Units
    • ebm-papst 6 Pole AC Fan Motor Assemblies
    • Maneurop Hermetic Reciprocating Compressors
    • Compressor Oil Sight Glass
    • PTC Crankcase Heater
    • Service Shut Off Valves
    • Dual Pressure Control
    • Gomax Pressure Control Lines
    • Liquid Line Drier & Sight Glass
    • Liquid Receiver
    • Compressor Contactor & Overload Relay
    • Pre-wired to Electrical Box

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

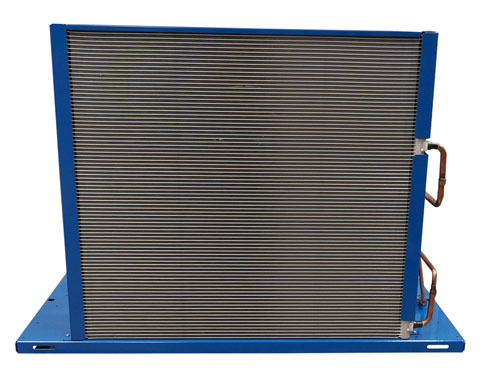

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency
  • Condensing Unit Specifications
    Weight65 Kg
    Liquid Line Connection3/8 "
    Suction Line Connection1/2 "
    Receiver Capacity3 L
    Compressor
    Max Continuous Current15 Amps
    Locked Rotor Amps41 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase HeaterPTC 27watt 230-600V
    Fan Motors
    Total FLA0.35 Amps
    Quantity1
    Diameter350 mm
    Voltage230V / 1 / 50Hz
  • CompressorMTZ225VI
    Comp Suction Service Valve7968013
    Comp Discharge Service Valve7968012
    ebm Fan Motor Assembly118U0390
    PTC Crankcase Heater120Z0459
    Liquid Receiver8168179
    Receiver Shut Off Valve7968012
    Unit Contactor118U5261
    Unit Overload Relay118U5265
    Comp Start Relay8173022
    Comp Start Cap8173001
    Comp Run Cap8173041
    Liquid Line Filter DrierDML083S
    Liquid Line Sight GlassSGP10NSR410A
    HP/LP Control060-539766
    Condenser Coil118U5217
  • danfoss_blue_dim_DFB01
  • danfoss_blue_elec_1
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    321741228729173630441852786200
    381484196925313167387446485481
    4312771710221227843423
    4611561556202325563153

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    321741228729173630441852786200
    381484196925313167387446485481
    4312771710221227843423
    4611561556202325563153

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    321565216228323573437752386148
    381309186224813163390546995539
    4310921608218428193509
    469611455200626123271

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    321565216228323573437752386148
    381309186224813163390546995539
    4310921608218428193509
    469611455200626123271

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    32815117916202145275434474223
    38676101714271912247331113824
    4357889612771725224328323491
    4652883011921616210826663292

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    32956131317442253284035044243
    38836115615452007254431553838
    43749103513881811230528693505
    4670296812991697216427013308

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.
    R452A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-505
    321104159121502781348042425063
    38892133918482422305637494495
    4371511261594211826983332
    4661010001441193624833081

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & 0 liquid subcooling.

  • Danfoss Optyma Blue Flat Base Condensing Units



    Micro Channel Heat Exchanger technology | A whole new level of system efficiency
