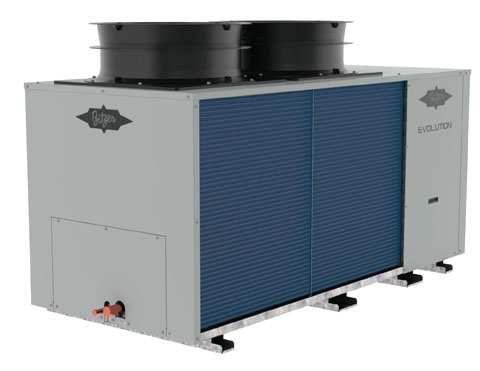

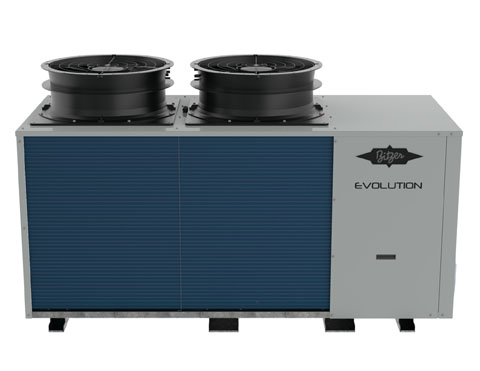

Bitzer Evolution Advanced Cond Unit 6FE44Y-EVO8 CRII - 6FE44YEVO8AD

Bitzer Evolution Advanced Cond Unit 6FE44Y-EVO8 CRII

Part Number: 6FE44YEVO8AD

Bitzer Evolution Advanced Cond Unit 6FE44Y-EVO8 CRII

Part Number: 6FE44YEVO8AD
Bitzer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Bitzer Evolution EVO8 - Air Cooled Condensing Units

    The Bitzer Evolution EVO7 & EVO8 unit series incorporates the latest compressor developments including Bitzer ECOLINE compressors, VARISTEP capacity regulation via CRII capacity control or VARIPACK Frequency Inverter coupled with world class fan technology to produce an extremely efficient unit.

    EVOLUTION EVO8 Outdoor Air Cooled Condensing Units are available in Basic, Advanced & Premium seriesmodels.

    Advanced Series – Standard Features:

    • 16 unit models available

    • BITZER ECOLINE compressor

    • Epoxy fin & copper tube condenser

    • Centrifugal Internal reservoir oil separator

    • 45L Liquid receiver c/w sight glass

    • Demountable liquid line drier

    • Liquid line sight glass

    • Liquid line ball valve

    • 3 Phase EC condenser fans

    • Vertical airflow design

    • Fan speed control

    • Galvanised steel base

    • High quality powder coated panel set

    • Mechanical dual pressure control

    • DPII oil pressure switch

    • Oil level monitoring and control

    • Pre-wired electrical panel and componentry

    • Bitzer proprietary unit controller

    • VARISTEP capacity regulation

    10..100% for 4-cyl compressors
    33..100% for 6-cyl compressors

    • Simple set up & commissioning via BEST tool

    Advanced Series Units

    The CRII System

    Capacity control is often required to match the output of a refrigeration, air-conditioning or heat pump system to the actual requirement. It prevents high switching frequency of the compressor and, thus, ensures more efficient operation of the system.

    The CRII system is designed for the special requirements of intelligent system controls.

    This enables higher cycling frequency of capacity control.

    As a standard feature BITZER utilises a proprietary controller to operate and control the functionality of the BITZER CRII capacity control system.

    The controller will start/stop, load/unload the compressor based upon the suction pressure set point.

    The capacity steps can be activated /deactivated rapidly (5 s).

  • Condensing Unit Specifications
    Weight1359 Kg
    Liquid Line Connection1-1/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A36 Kg
    Receiver Capacity R134A43 Kg
    Compressor
    Max Continuous Current83.2 Amps
    Voltage380-420YY / 3 / 50Hz (P.W.S.)
    Motor Type2
    Crankcase Heater240V / 1 / 50Hz (140 watts)
    Fan Motors
    Total FLA8.8 Amps
    Quantity2
    Diameter800 mm
    Voltage415V / 3 / 50Hz (EC Fans)
  • Bitzer_EVO7_EVO8

    Units Dimensions (mm)
    A2945
    B1400
    C1731
    D2165
    E1150
    F1262
    G1360
    H800
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-5
    35375574692857494693168243396858
    38355864452154569657977825291955
    40342624290552606634397545388676
    43322594046349645598847123783739

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    Additional cooling maybe required with the use of CRII capacity control - contact Airefrig Australia for further information.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-5
    35375574692857494693168243396858
    38355864452154569657977825291955
    40342624290552606634397545388676
    43322594046349645598847123783739

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    Additional cooling maybe required with the use of CRII capacity control - contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-50510
    351799524107312833965449320603447275886561101723
    38170402301429973380514735357948698748314097724
    40164012228329098369814604156350679538086295062
    43154392118427783353754407353956650757745191076

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    Additional cooling maybe required with the use of CRII capacity control - contact Airefrig Australia for further information.
    Indicates additional cooling required, contact Airefrig Australia for further information
