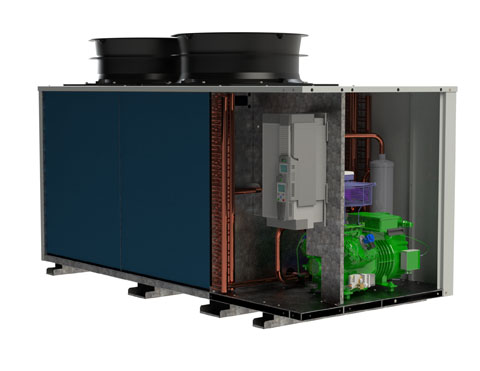

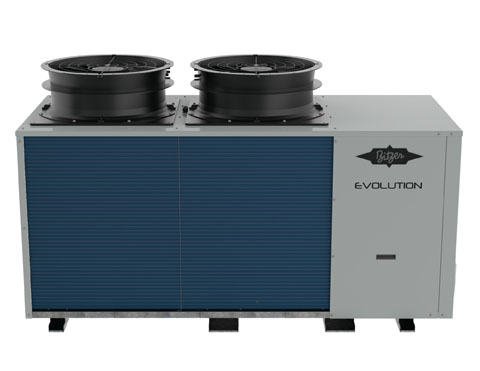

Bitzer Evolution Prem.Cond Unit 6FE44YFJU+105-EVO7 Inverter - 6FE44YEVO7PR

Bitzer Evolution Prem.Cond Unit 6FE44YFJU+105-EVO7 Inverter

Part Number: 6FE44YEVO7PR

Bitzer Evolution Prem.Cond Unit 6FE44YFJU+105-EVO7 Inverter

Part Number: 6FE44YEVO7PR
Bitzer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Bitzer Evolution EVO7 - Air Cooled Condensing Units

    The Bitzer Evolution EVO7 & EVO8 unit series incorporates the latest compressor developments including Bitzer ECOLINE compressors, VARISTEP capacity regulation via CRII capacity control or VARIPACK Frequency Inverter coupled with world class fan technology to produce an extremely efficient unit.

    EVOLUTION EVO7 Outdoor Air Cooled Condensing Units are available in Basic, Advanced & Premium seriesmodels.

    Premium Series – Standard Features:

    • 32 unit models available

    • BITZER ECOLINE compressor

    • Epoxy fin & copper tube condenser

    • Centrifugal Internal reservoir oil separator

    • 45L Liquid receiver c/w sight glass

    • Demountable liquid line drier

    • Liquid line sight glass

    • Liquid line ball valve

    • 3 Phase EC condenser fans

    • Vertical airflow design

    • Fan speed control

    • Galvanised steel base

    • High quality powder coated panel set

    • Mechanical dual pressure control

    • DPII oil pressure switch

    • Oil level monitoring and control

    • Pre-wired electrical panel and componentry

    • Bitzer VARIPACK Frequency Inverter with
    expansion module for self-regulation included

    • Simple set up & commissioning via BEST tool

    Premium Series Units

    The VARIPACK Frequency Inverters


    A frequency inverter series for all BITZER reciprocating compressors.

    For easy and safe capacity control, BITZER VARIPACK series offers a new generation of intelligent frequency inverters that can be used with all BITZER reciprocating compressors.

    The VARIPACK frequency inverter series was specially developed for refrigeration and operation of BITZER refrigeration compressors.

    The focus of the development was the easy use, the reliability and the high performance of the frequency inverters.

    They can be for example put into operation intuitively and perform control functions of the refrigeration system.

    The optimised adaptation to the current cooling demand of a system reduces energy consumption effectively and thus ongoing energy costs.

    The VARIPACK Unit Controller (Premium Units)

    The unit will be fitted standard with a unit safety control module. This controller will perform and provide the following actions:

    • Provide energy & cost savings through intelligent capacity control incl.
    - Compressor frequency inverter by suction pressure
    - Condenser Fan control also by internal inverter control

    • Start / Stop the compressor

    • Compressor Protection

    • Easy installation

    • Refrigerant configurable

    • Provide energy and cost savings through intelligent fan speed regulation to achieve constant condensing temperature.

  • Condensing Unit Specifications
    Weight1371 Kg
    Liquid Line Connection1-1/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A36 Kg
    Receiver Capacity R134A43 Kg
    Compressor
    Max Continuous Current83.2 Amps
    Voltage380-420YY / 3 / 50Hz (P.W.S.)
    Motor Type2
    Crankcase Heater240V / 1 / 50Hz (140 watts)
    Fan Motors
    Total FLA8.8 Amps
    Quantity2
    Diameter800 mm
    Voltage415V / 3 / 50Hz (EC Fans)
  • Bitzer_EVO7_EVO8

    Units Dimensions (mm)
    A2945
    B1400
    C1731
    D2165
    E1150
    F1262
    G1360
    H800
  • R404A

    Frequency - 25

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20
    35187442357729109
    38177592236827633
    40170952155526640
    43160902032425140

    Frequency - 50

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20
    35359744471454456
    38340094231651549
    40326884070649600
    43306913827446659

    Frequency - 60

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20
    35461305695068994
    38435165380465244
    40417625169662735
    43391144851858957

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    R507

    Frequency - 25

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20
    35187442357729109
    38177592236827633
    40170952155526640
    43160902032425140

    Frequency - 50

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20
    35359744471454456
    38340094231651549
    40326884070649600
    43306913827446659

    Frequency - 60

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20
    35461305695068994
    38435165380465244
    40417625169662735
    43391144851858957

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    R134A

    Frequency - 25

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-505
    3512219159332032925488314783835446156
    3811673152761952324494302603687844391
    4011306148371898423830294463589343213
    4310755141761817322832282253441441446

    Frequency - 50

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-505
    3523838308553897548265587567044383294
    3822748295513738346317563916761179951
    4022020286803632045018548166572677726
    4320926273733472743072524586290374397

    Frequency - 70

    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-505
    35311394003550146615237416488026103030
    3829688383004804258972711038440498807
    4028719371444664157277690718199996004
    4327266354134454654744660357840991819

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
