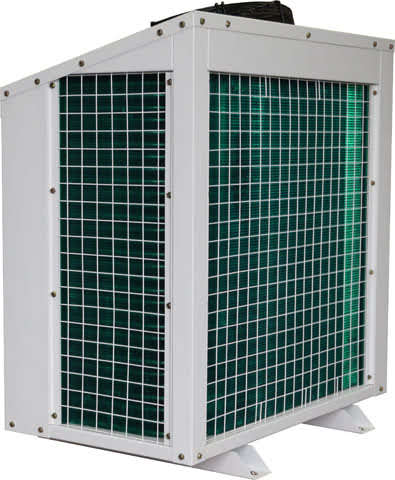

Enthalpy TD Hermetic Cond Unit - 1Ø 1.3HP - TDCS10ML3001

Enthalpy TD Hermetic Cond Unit - 1Ø 1.3HP

Part Number: TDCS10ML3001

Enthalpy TD Hermetic Cond Unit - 1Ø 1.3HP

Part Number: TDCS10ML3001
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy Hermetic TD Series Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder Coated Unit Casing
    • Hermetic Copeland Compressors
    • Compressor Oil Sight Glass
    • Crankcase Heater
    • Service Shut Off Valves
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil Separator (Pre-charged with POE Oil)
    • Liquid Receiver
    • Top Discharge High Ambient Condenser
    • Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
    • Space Saving Unit Design (Can be installed in a corner or back to back – not ML series)
    • ebmpapst Condenser Fans – Single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch (4 x M4 nutspots & 38mm diameter knockout for switch option)

  • Condensing Unit Specifications
    Weight110 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection3/4 "
    Receiver Capacity R404A4.29 Kg
    Compressor
    Nominal HP1.3 HP
    Max Continuous Current14.2 Amps
    Rated Load Amps10.1 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase Heater240V / 1 / 50Hz 40 w
    Fan Motors
    Total FLA0.32 Amps
    Quantity1
    Diameter300 mm
    Voltage230V / 1 / 50Hz
    Sound Data
    High Speed54 dB(A)
    Speed Controlled50 dB(A)
  • Compressor ModelCS10K6EPFJ595
    Compressor Start Relay040000154
    Compresor Run Capacitor014003602
    Compressor Start Capacitor014004810
    Oil Separator (Internal Float)EOS1004L
    Liquid Receiver1300134B
    Receiver Outlet ValveR051FA8DS
    Receiver Outlet Gasket020002800
    Suction Service ValveR052FB4DS
    Suction Valve Gasket020002802
    Unit Electrical BoxAIRENTENCL
    Liquid Line Drier / Sight Glass ComboCSG084S
    Dual Pressure ControlDNSD306X
    Condenser Fan Model (ebm)S4E300AS7244
    Fan Speed ControllerRGEZ1N45MFQ1
    TD Case ModelML400
  • Enthalpy_TD-D
  • CSFB&ML1PH(100214)
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50
    322322291035304214
    381939246030103596
    431625209725933117

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Note: Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50
    322322291035304214
    381939246030103596
    431625209725933117

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Note: Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32138718582291286234684227
    38114715551934242129323578
    4395213121650207725173069

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Note: Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
