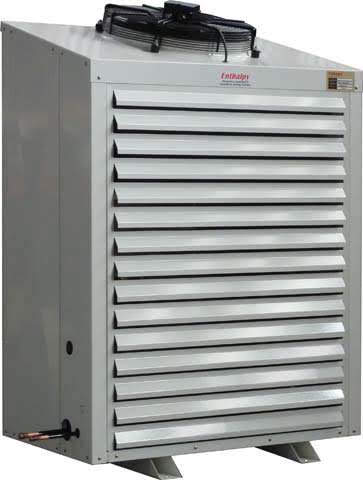

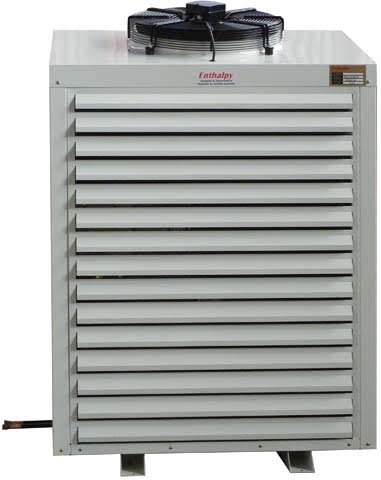

Enthalpy TD Hermetic Cond Unit- 3Ø 3.5HP - TDCS27MP123

Enthalpy TD Hermetic Cond Unit- 3Ø 3.5HP

Part Number: TDCS27MP123

Enthalpy TD Hermetic Cond Unit- 3Ø 3.5HP

Part Number: TDCS27MP123
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy Hermetic TD Series Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder Coated Unit Casing
    • Hermetic Copeland Compressors
    • Compressor Oil Sight Glass
    • Crankcase Heater
    • Service Shut Off Valves
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil Separator (Pre-charged with POE Oil)
    • Liquid Receiver
    • Top Discharge High Ambient Condenser
    • Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
    • Space Saving Unit Design (Can be installed in a corner or back to back – not ML series)
    • ebmpapst Condenser Fans – Single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch (4 x M4 nutspots & 38mm diameter knockout for switch option)

  • Condensing Unit Specifications
    Weight150 Kg
    Liquid Line Connection5/8 "
    Suction Line Connection7/8 "
    Receiver Capacity R404A8.1 Kg
    Receiver Capacity R134A0 Kg
    Compressor
    Nominal HP3.5 HP
    Max Continuous Current11.8 Amps
    Voltage380-420V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater240-600V / 1 / 50Hz 40w
    Fan Motors
    Total FLA1.55 Amps
    Quantity1
    Diameter450 mm
    Voltage230V / 1 / 50Hz
    Sound Data
    High Speed59 dB(A)
    Speed Controlled57 dB(A)
  • Compressor ModelCS27K6ETFD595
    Compressor ContactorMC12B240V
    Compressor Electronic OverloadGMP223P22A
    Circuit Breaker Control CircuitPLSMD10
    Circuit Breaker Condenser FansPLSMD10
    Oil Separator (Internal Float)EOS1005
    Liquid Receiver1320315A
    Receiver Outlet ValveR051FB2DS
    Receiver Outlet Gasket020002800
    Suction Service ValveR052FB7DS
    Suction Valve Gasket020002800
    Unit Electrical BoxAIR50650
    Liquid Line Drier / Sight Glass ComboCSG165S
    Dual Pressure ControlDNSD306X
    Condenser Fan Model (ebm)S4E450AU0337
    Fan Speed ControllerRGEZ1N45MFQ1
    TD Case ModelMP12
  • Enthalpy_TD_MP12
  • TDCS1FAN1(270418)
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50
    3260677513905710616
    385242649578489224
    434525563768488072

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50
    3260677513905710616
    385242649578489224
    434525563768488072

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    323426445856086969872510914
    38304340055034629078989874
    43270536184558571271518957

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Note: Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
  • Notes for Commissioning:

    Set Dual Pressure Control to suit application.
    Set Fan Speed Control to suit application (ie: R134a).
    Adjust Motor Current Overload to suit application.
    Unit delivered with 1200 kpa nitrogen holding charge.
    Remove/adjust transport protection (Bitzer comps only).
    Check integrity of electrical connections/terminations.
    Check integrity of fixing screws & bolts etc.
