Enthalpy TD Semi Cond Unit- 3Ø 20HP. Oil Reg. - TD4NES20MP573LL
Enthalpy TD Semi Cond Unit- 3Ø 20HP. Oil Reg.
Part Number: TD4NES20MP573LLEnthalpy TD Semi Cond Unit- 3Ø 20HP. Oil Reg.
Part Number: TD4NES20MP573LLSign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

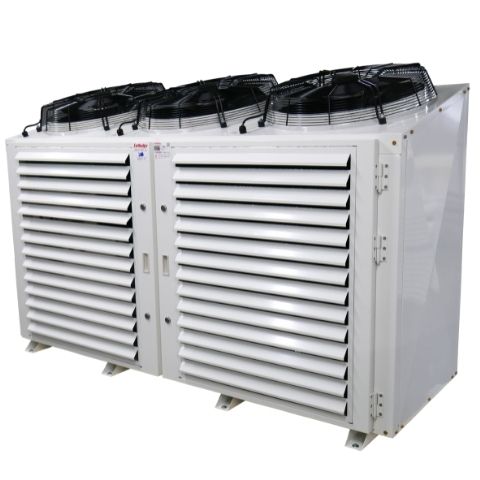

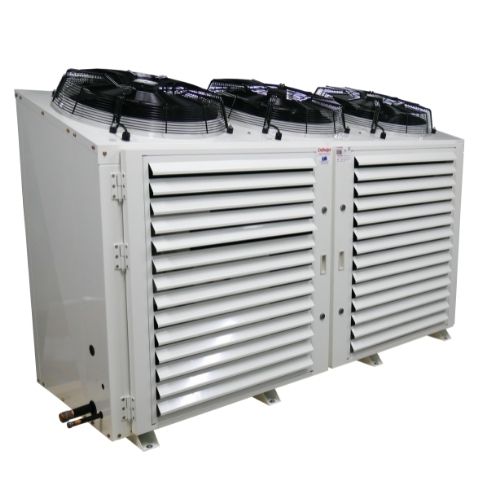

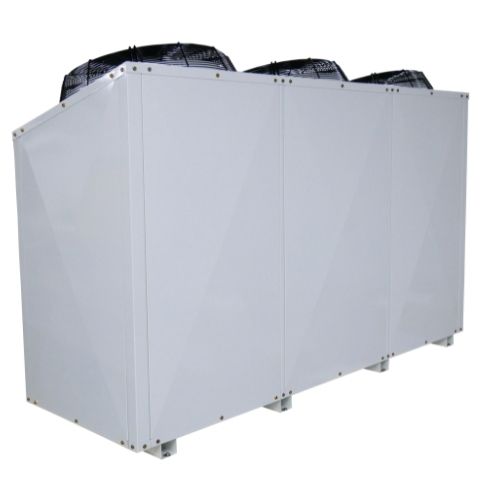

Enthalpy TD Semi-Hermetic Condensing Units
Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.
The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.
The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

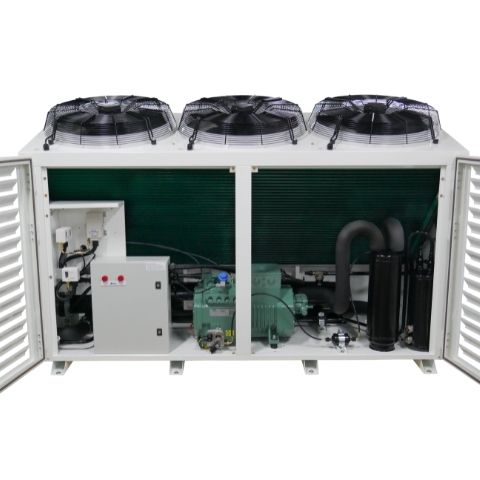

Standard Fitted Features:
- Weatherproof White Powder coated unit casing
- Semi-Hermetic Bitzer Compressors
- Compressor oil sight glass
- Crankcase Heater
- HP/LP Control
- Gomax Flexible Control Hoses
- Liquid Line Drier & Sight Glass
- Oil separator (Pre-charged with Poe oil)
- Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
- Top Discharge High Ambient Condenser
- Space saving unit design (Can be installed into a corner or back to back)
- ebm-papst condenser Fans – single Phase
- Saginomiya Condenser Fan Speed Controller
- 3PH Contactor & Electronic Motor Protection Relay
- Phase Loss & Phase Imbalance Protection
- Dust & Weatherproof Electrical Box
- Pre-Wired Back to Electrical Box
- 1.22mm (18G) Interconnecting Copper Pipe Work
- Pre-Drilled ready to fit IPW series isolating switch
- Discharge Vibration Eliminator
- Suction Accumulator
Condensing Unit Specifications Weight | 505 Kg |
Liquid Line Connection | 3/4 " |
Suction Line Connection | 1-3/8 " |
Receiver Capacity R404A | 34 Kg |
Compressor Nominal HP | 20 HP |
Max Continuous Current | 33.2 Amps |
Voltage | 380-400V / 3 / 50Hz |
Motor Type | P.W.S. |
Crankcase Heater | 230V / 1 / 50Hz 140w |
Fan Motors Total FLA | 8.1 Amps |
Quantity | 3 |
Diameter | 630 mm |
Voltage | 230V / 1 / 50Hz |
Sound Data High Speed | 63 dB(A) |
Speed Controlled | 61 dB(A) |
Circuit Breaker Condenser Fans | PLSMD16 |
Circuit Breaker Control Circuit | PLSMD10 |
Compressor Capacity Unloader Solenoid Valve | 34760147 |
Compressor Contactor | MC22B240V |
Compressor Electronic Overload | GMP223P22A |
Compressor Model | 4NES20Y |
Compressor Oil Monitor | 34733403 |
Compressor Part Wind Start Timer | CRM93H |
Condenser Fan Model (ebm) | S6E630AN0101 |
Dual Pressure Control | DNSD306X |
Fan Speed Controller | RGEZ1Q45MFQ1 |
Liquid Line Drier | C416S |
Liquid Line Drier Core | RC4864 |
Liquid Line Drier Shell | NFDS487 |
Liquid Line Sight Glass | SA16S |
Liquid Receiver | HHR018 |
Oil Level Monitor / Regulator (DEKA) | 308COM1230 |
Oil Reservoir Separator Combo (no float) | 30722E2 |
Oil Return Strainer | SH9105 |
Receiver Inlet Gasket | 020002802PK |
Receiver Inlet Valve | R053FB7DS |
Receiver Outlet Gasket | 020002802PK |
Receiver Outlet Valve | R052FB4DS |
Suction Accumulator | 1010854P |
TD Case Model | MP57 |
Unit Electrical Box | BM40515G |
Unit Start Delay Timer | ICM105 |
R404A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 7549 | 10219 | 13376 | 17054 | 21277 | 26072 | 31437 | 37371 | 43857 | 50855 |
38 | 6558 | 8976 | 11845 | 15194 | 19048 | 23422 | 28312 | 33711 | 39589 | 45904 |
43 | 5764 | 7974 | 10605 | 13682 | 17222 | 21241 | 25727 | 30668 | | |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R507 Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 7549 | 10219 | 13376 | 17054 | 21277 | 26072 | 31437 | 37371 | 43857 | 50855 |
38 | 6558 | 8976 | 11845 | 15194 | 19048 | 23422 | 28312 | 33711 | 39589 | 45904 |
43 | 5764 | 7974 | 10605 | 13682 | 17222 | 21241 | 25727 | 30668 | | |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R449A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 6018 | 8484 | 11470 | 15026 | 19195 | 24026 | 29549 | 35785 | 42762 | 50470 |
38 | | 7470 | 10209 | 13481 | 17329 | 21801 | 26916 | 32696 | 39158 | 46288 |
43 | | 6654 | 9190 | 12229 | 15812 | 19980 | 24752 | 30145 | 36168 | 42805 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R513A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
---|
32 | 9494 | 12482 | 15969 | 19991 | 24585 | 29770 | 35568 | 41997 |
38 | 8567 | 11314 | 14528 | 18242 | 22488 | 27281 | 32638 | 38571 |
43 | 7815 | 10364 | 13351 | 16807 | 20761 | 25225 | 30212 | 35728 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Saginomiya fan speed controller will require to be adjusted to suit R513a refrigerant at time of commissioning.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R134A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
---|
32 | 8566 | 11461 | 14878 | 18860 | 23455 | 28694 | 34605 | 41219 |
38 | 7748 | 10422 | 13588 | 17287 | 21563 | 26441 | 31943 | 38101 |
43 | 7087 | 9580 | 12540 | 16005 | 20013 | 24589 | 29753 | 35518 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Saginomiya fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
