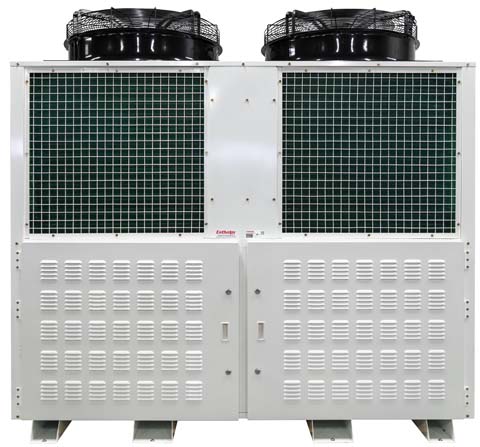

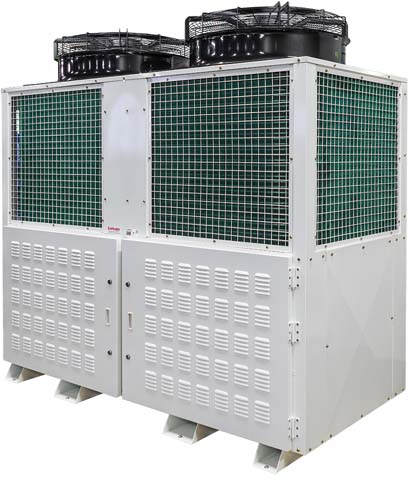

Enthalpy TD Semi Cond Unit-3Ø 30HP. CMRC CapCon. EC Fan - TD4GE30MC723SUCM

Enthalpy TD Semi Cond Unit-3Ø 30HP. CMRC CapCon. EC Fan

Part Number: TD4GE30MC723SUCM

Enthalpy TD Semi Cond Unit-3Ø 30HP. CMRC CapCon. EC Fan

Part Number: TD4GE30MC723SUCM
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight900 Kg
    Liquid Line Connection7/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A34 Kg
    Compressor
    Nominal HP30 HP
    Max Continuous Current51.2 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeP.W.S.
    Crankcase Heater230V / 1 / 50Hz
    Fan Motors
    Total FLA6.2 Amps
    Quantity2
    Diameter800 mm
    Voltage400V / 3 / 50Hz
    Sound Data
    High Speed72 dB(A)
    Speed Controlled62 dB(A)
  • Compressor4GE30YCRII
    ContactorMC32A240V
    OverloadGMP403P40A
    Circuit Breaker 1PLSMD10
    EC Fan 3 Pole ContactorGMC9M10
    EC Fan 3 Pole Circuit BreakerBKN63P10D
    Oil Separator (Internal Float)1030122U
    Liquid ReceiverHHR018
    Receiver Outlet ValveR052FB7DS
    Receiver Outlet Gasket20002802
    Receiver Inlet ValveR053FB7DS
    Receiver Inlet Gasket20002803
    Electrical BoxEUR705020
    Liquid Line Sight GlassSA17S
    Suction Accumulator3100348615
    Timer Part Wind StartCRM93H
    Timer Start DelayICM105
    CRII Solenoid Valve34760148
    Oil Monitor Delta P1/234739401
    Oil StrainerSH9105
    Suction Line Drier ShellNFDS4817
    Liquid Line Drier ShellNFDS487
    Liquid Line Core DrierRC4864
    Suction Line Drier/FilterRPE48BD
    Saginomiya Pressure ControlSNSC106X & SNSC130X
    CM-RC-01 Control Module34702850
    Comp Head Cooling Fan34302124
    Carel Suction TransducerSPKT0143P0
    Carel Discharge TransducerSPKT0033P0
    Condenser Fan TypeW3G800KS3903
    Carel ControllerIR33E9HR20
  • Enthalpy_TD-F
  • enthalpy_B28_2019-12-05
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3212129162402099726432325633939346911550776384673134
    3810653143981873323686292683547342284496545753365826
    4394461288316864214082652532201384124510852222

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    3 phase EC fans fitted that are speed controlled from 0% to 100% controlled via the Carel IR33E9HR20 controller
    Compressor is fitted standard with 50% capacity control controlled via the Carel IR33E9HR20 controller
    Alternating digital diplays of Discharge & Suction pressures via the Carel IR33E9HR20 controller
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3212129162402099726432325633939346911550776384673134
    3810653143981873323686292683547342284496545753365826
    4394461288316864214082652532201384124510852222

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    3 phase EC fans fitted that are speed controlled from 0% to 100% controlled via the Carel IR33E9HR20 controller
    Compressor is fitted standard with 50% capacity control controlled via the Carel IR33E9HR20 controller
    Alternating digital diplays of Discharge & Suction pressures via the Carel IR33E9HR20 controller
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    329665135431812423464296093659044435531436270473084
    38120331625821188268623330840543485625734966864
    431078714713192962457530570372904473152867

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    3 phase EC fans fitted that are speed controlled from 0% to 100% controlled via the Carel IR33E9HR20 controller
    Compressor is fitted standard with 50% capacity control controlled via the Carel IR33E9HR20 controller
    Alternating digital diplays of Discharge & Suction pressures via the Carel IR33E9HR20 controller
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    321522219775250603110237926455445393263072
    381383118066229702856434871418924960557984
    431261916595211902642032301388314598853737

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R513a refrigerant at time of commissioning.
    3 phase EC fans fitted that are speed controlled from 0% to 100% controlled via the Carel IR33E9HR20 controller
    Compressor is fitted standard with 50% capacity control controlled via the Carel IR33E9HR20 controller
    Alternating digital diplays of Discharge & Suction pressures via the Carel IR33E9HR20 controller
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    321380818233234312944636309440515266862144
    381256816714215742718533580407774877157541
    431148015400199882527531289380414552453713

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    3 phase EC fans fitted that are speed controlled from 0% to 100% controlled via the Carel IR33E9HR20 controller
    Compressor is fitted standard with 50% capacity control controlled via the Carel IR33E9HR20 controller
    Alternating digital diplays of Discharge & Suction pressures via the Carel IR33E9HR20 controller
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
