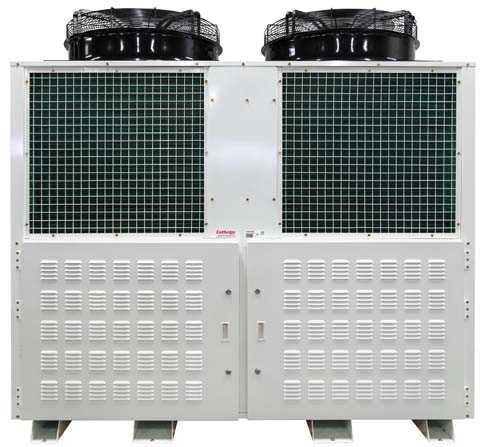

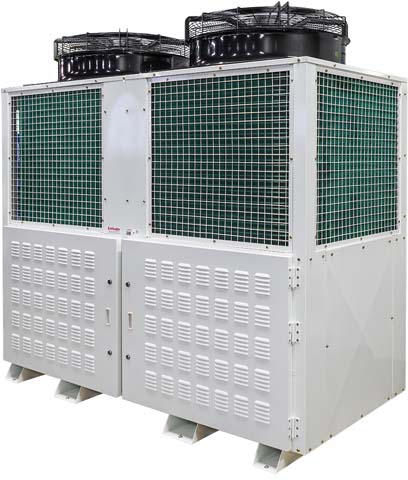

Enthalpy TD Semi Cond Unit- 3Ø 30HP. Oil Reg. EC Fan - TD4GE30MC723LL

Enthalpy TD Semi Cond Unit- 3Ø 30HP. Oil Reg. EC Fan

Part Number: TD4GE30MC723LL

Enthalpy TD Semi Cond Unit- 3Ø 30HP. Oil Reg. EC Fan

Part Number: TD4GE30MC723LL
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight900 Kg
    Liquid Line Connection7/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A34 Kg
    Compressor
    Nominal HP30 HP
    Max Continuous Current51.2 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeP.W.S.
    Crankcase Heater230V / 1 / 50Hz
    Fan Motors
    Total FLA6.2 Amps
    Quantity2
    Diameter800 mm
    Voltage400V / 3 / 50Hz
    Sound Data
    High Speed72 dB(A)
    Speed Controlled62 dB(A)
  • Compressor Model4GE30Y
    Compressor ContactorMC32A240V
    Compressor Electronic OverloadGMP403P40A
    Circuit Breaker Control CircuitPLSMD10
    EC Fan 3 Pole ContactorGMC9M10
    EC Fan 3 Pole Circuit BreakerBKN63P10D
    Liquid ReceiverHHR018
    Receiver Outlet ValveR052FB7DS
    Receiver Outlet Gasket20002802
    Receiver Inlet ValveR053FB7DS
    Receiver Inlet Gasket20002803
    Unit Electrical BoxEUR705020
    Controller Box MC72 CaseAIRENTENCL
    Liquid Line Sight GlassSA17S
    Suction Accumulator3100348615
    Compressor Part Wind Start TimerCRM93H
    Unit Start Delay TimerICM105
    Oil Reservoir Separator Combo (no float)30722E2
    Compressor Capacity Unloader Solenoid Valve34760148
    Oil Level Monitor / Regulator (DEKA)308COM1230
    Compressor Oil Monitor34731911
    Oil Return StrainerSH9105
    Suction Line Drier ShellNFDS4817
    Liquid Line Drier ShellNFDS487
    Liquid Line Drier CoreRC4864
    Suction Line Filter ElementRPE48BD
    Dual Pressure ControlDNSD306X
    Low Pressure Transducer (Carel)SPKT0143P0
    High Pressure Transducer (Carel)SPKT0033P0
    Condenser Fan Model (ebm)W3G800KS3903
    Carel ControllerIR33E9HR20
    TD Case ModelMC72
  • Enthalpy_TD-F
  • (B15)TD25&30MC723LL Unloader+DEKA (07
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3212129162402099726432325633939346911550776384673134
    3810653143981873323686292683547342284496545753365826
    4394461288316864214082652532201384124510852222

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3212129162402099726432325633939346911550776384673134
    3810653143981873323686292683547342284496545753365826
    4394461288316864214082652532201384124510852222

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    329665135431812423464296093659044435531436270473084
    38120331625821188268623330840543485625734966864
    431078714713192962457530570372904473152867

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    321522219775250603110237926455445393263072
    381383118066229702856434871418924960557984
    431261916595211902642032301388314598853737

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    321380818233234312944636309440515266862144
    381256816714215742718533580407774877157541
    431148015400199882527531289380414552453713

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
