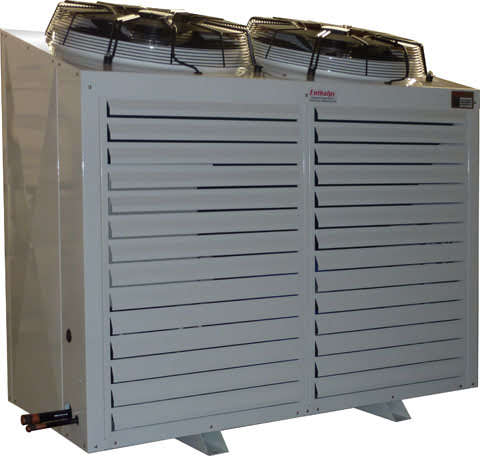

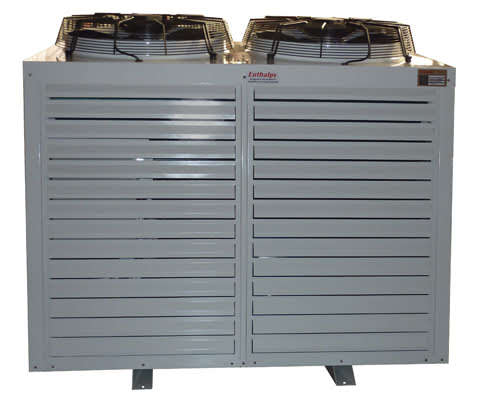

Enthalpy TD Semi-Hermetic Condensing Units
Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.
The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.
The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.
Standard Fitted Features:
- Weatherproof White Powder coated unit casing
- Semi-Hermetic Bitzer Compressors
- Compressor oil sight glass
- Crankcase Heater
- HP/LP Control
- Gomax Flexible Control Hoses
- Liquid Line Drier & Sight Glass
- Oil separator (Pre-charged with Poe oil)
- Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
- Top Discharge High Ambient Condenser
- Space saving unit design (Can be installed into a corner or back to back)
- ebm-papst condenser Fans – single Phase
- Saginomiya Condenser Fan Speed Controller
- 3PH Contactor & Electronic Motor Protection Relay
- Phase Loss & Phase Imbalance Protection
- Dust & Weatherproof Electrical Box
- Pre-Wired Back to Electrical Box
- 1.22mm (18G) Interconnecting Copper Pipe Work
- Pre-Drilled ready to fit IPW series isolating switch
- Discharge Vibration Eliminator
- Suction Accumulator
Condensing Unit Specifications Weight | 325 Kg |
Liquid Line Connection | 5/8 " |
Suction Line Connection | 1-1/8 " |
Receiver Capacity R404A | 12 Kg |
Compressor Nominal HP | 9 HP |
Max Continuous Current | 20.2 Amps |
Voltage | 380-400V / 3 / 50Hz |
Motor Type | DOL |
Crankcase Heater | 230V / 1 / 50Hz 120w |
Fan Motors Total FLA | 5.4 Amps |
Quantity | 2 |
Diameter | 630 mm |
Voltage | 230V / 1 / 50Hz |
Sound Data High Speed | 61 dB(A) |
Speed Controlled | 58 dB(A) |
Compressor Model | 4CES9CY |
Compressor Contactor | MC32A240V |
Compressor Electronic Overload | GMP403P40A |
Circuit Breaker Control Circuit | PLSMD4 |
Circuit Breaker Condenser Fans | PLSMD16 |
Oil Separator (Internal Float) | EOS1007 |
Liquid Receiver | 1320620A |
Receiver Outlet Valve | R051FB2DS |
Receiver Outlet Gasket | 020002800PK |
Unit Electrical Box | EUR604015 |
Liquid Line Drier | C305S |
Liquid Line Sight Glass | SA15S |
Suction Accumulator | 1010854P |
Unit Start Delay Timer | ICM105 |
Compressor CRII Solenoid Valve | 34760147 |
Compressor Oil Monitor | 34731602 |
Oil Return Strainer | SH9105 |
Liquid Line Drier Shell | NFDS487 |
Liquid Line Drier Core | RC4864 |
Low Pressure Control | SNSC106X |
High Pressure Control | SNSC130X |
CM-RC-01 Control Module | 34702850 |
Compressor Head Cooling Fan | 34302129 |
Low Pressure Transducer (Carel) | SPKT0143P0 |
High Pressure Transducer (Carel) | SPKT0033P0 |
Condenser Fan Model (ebm) | S6E630AN0101 |
Fan Speed Controller | RGEZ1Q45MFQ1 |
TD Case Model | MP38 |
R404A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 4670 | 6250 | 8117 | 10293 | 12799 | 15657 | 18881 | 22480 | 26458 | 30813 |
38 | 4101 | 5539 | 7243 | 9236 | 11533 | 14155 | 17110 | 20403 | 24033 | 27987 |
43 | 3645 | 4966 | 6535 | 8373 | 10495 | 12914 | 15637 | 18667 | 21997 | |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel DN33) & head cooling fan
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil separator (internal float)
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R507 Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 4670 | 6250 | 8117 | 10293 | 12799 | 15657 | 18881 | 22480 | 26458 | 30813 |
38 | 4101 | 5539 | 7243 | 9236 | 11533 | 14155 | 17110 | 20403 | 24033 | 27987 |
43 | 3645 | 4966 | 6535 | 8373 | 10495 | 12914 | 15637 | 18667 | 21997 | |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel DN33) & head cooling fan
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil separator (internal float)
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R449A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 3753 | 5227 | 7004 | 9110 | 11578 | 14436 | 17717 | 21441 | 25631 | 30304 |
38 | 3295 | 4647 | 6283 | 8231 | 10520 | 13178 | 16230 | 19695 | 23591 | 27930 |
43 | 2929 | 4180 | 5700 | 7517 | 9657 | 12143 | 15002 | 18248 | 21894 | 25941 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel DN33) & head cooling fan
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil separator (internal float)
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R513A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
---|
32 | 5800 | 7514 | 9545 | 11920 | 14661 | 17785 | 21308 | 25239 |
38 | 5281 | 6869 | 8749 | 10945 | 13475 | 16357 | 19601 | 23215 |
43 | 4840 | 6323 | 8079 | 10126 | 12484 | 15165 | 18178 | 21528 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel DN33) & head cooling fan
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Saginomiya fan speed controller will require to be adjusted to suit R513a refrigerant at time of commissioning.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil separator (internal float)
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R134A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
---|
32 | 5270 | 6921 | 8900 | 11239 | 13965 | 17105 | 20678 | 24698 |
38 | 4813 | 6350 | 8193 | 10370 | 12906 | 15823 | 19139 | 22863 |
43 | 4423 | 5869 | 7600 | 9644 | 12023 | 14758 | 17861 | 21343 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel DN33) & head cooling fan
1 phase AC fans are speed controlled via Saginomiya RGEZ controller
Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
Saginomiya fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
Fitted with suction accumulator, oil return strainer, liquid receiver, liquid line drier shell & sight glass
Fitted with oil separator (internal float)
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
