Enthalpy TD Semi Cond Unit-3Ø 9HP. Oil Reg.CMRC CapCon.ECFan

Part Number: TD4CES9IQ2MP383LLCMEC

Enthalpy TD Semi Cond Unit-3Ø 9HP. Oil Reg.CMRC CapCon.ECFan

Part Number: TD4CES9IQ2MP383LLCMEC
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Enthalpy TD Semi Cond Unit-3Ø 9HP. Oil Reg.CMRC CapCon.ECFan
Enthalpy TD Semi Cond Unit-3Ø 9HP. Oil Reg.CMRC CapCon.ECFan

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight325 Kg
    Liquid Line Connection5/8 "
    Suction Line Connection1-1/8 "
    Receiver Capacity R404A12 Kg
    Compressor
    Nominal HP9 HP
    Max Continuous Current20.2 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater230V / 1 / 50Hz 120w
    Fan Motors
    Total FLA2.2 Amps
    Quantity2
    Diameter630 mm
    Voltage380-480V / 3 / 50-60Hz
    Sound Data
    High Speed61 dB(A)
    Speed Controlled58 dB(A)
  • Compressor Model4CES9CYIQ2
    Compressor ContactorMC32A240V
    Compressor Electronic OverloadGMP403P40A
    Circuit Breaker Control CircuitLSBS1P4D
    Circuit Breaker CM-RC01LSBS1P4D
    Circuit Breaker Condenser FansPLSMD16
    EC Fan 3 Pole ContactorGMC9M10
    EC Fan 3 Pole Circuit BreakerBKN63P10D
    Liquid Receiver1320620A
    Receiver Outlet ValveR051FB2DS
    Receiver Outlet Gasket020002800PK
    Unit Electrical BoxEUR604015
    Liquid Line DrierC305S
    Liquid Line Sight GlassSA15S
    Suction Accumulator1010854P
    Oil Reservoir Separator Combo (no float)30722E2
    Compressor CRII Solenoid Valve34760147
    Oil Level Monitor / Regulator (DEKA)040B0119
    Compressor Oil Monitor34770246
    PT1000 Temp Sensor34770242
    Oil Return StrainerSH9105
    Liquid Line Drier ShellNFDS487
    Liquid Line Drier CoreRC4864
    Low Pressure ControlSNSC106X
    High Pressure ControlSNSC130X
    CM-RC-01 Control Module34702850
    Compressor Head Cooling Fan34302129
    Low Pressure Transducer (Carel)SPKT0043P0
    High Pressure Transducer (Carel)SPKT0033P0
    Condenser Fan Model (ebm)S3G630AE5551
    Carel ControllerDN33E9HR20
    TD Case ModelMP38
  • Enthalpy_TD_MP38

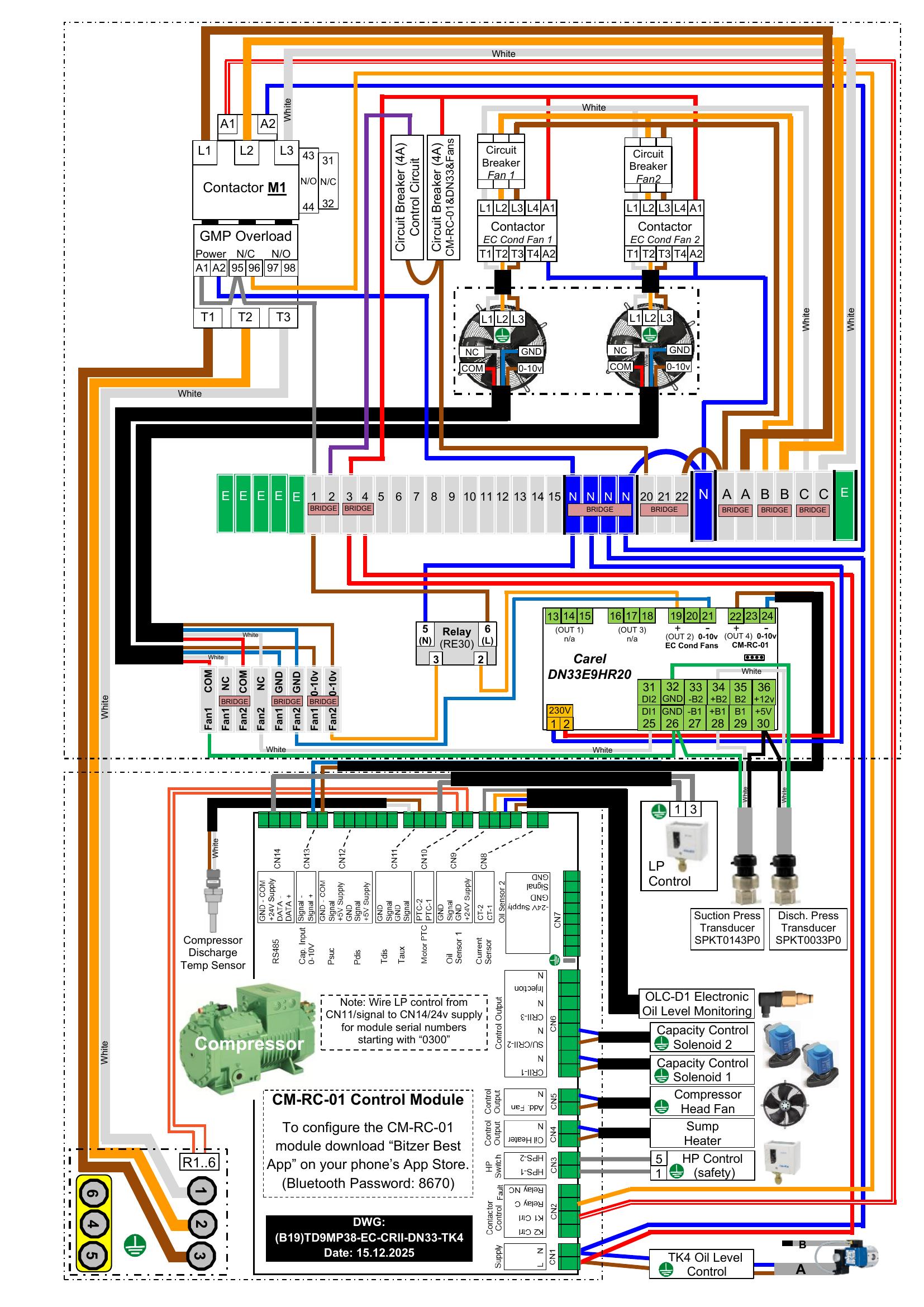

  • (B19)TD9MP38 EC-CRII-DN33-TK4 (15
  • R452A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)3756527170079085115311442917775215862591930620
    KTD2.443.214.075.076.217.549.0110.6712.514.5
    38Refrigeration Capacity (w)3178448960207955101891288516022195262355727951
    KTD2.222.923.754.725.87.068.4910.0911.8713.77
    43Refrigeration Capacity (w)2696391452897062913511674145611782121612
    KTD2.052.713.514.435.486.728.069.5811.29

    Note:

    Nominal ratings should be used as a guide, based on 15K evaporator superheat and inherent liquid subcooling (R452A)
    3 phase EC condenser fans are speed controlled from 0% to 100% via Carel controller
    Compressor fitted with CRII 10-100% capacity regulation controlled by Carel controller plus head cooling fan fitted
    Fitted with oil reservoir/separator combo, oil level regulator & oil return strainer
    Fitted with suction accumulator and liquid receiver
    Fitted with liquid line drier shell & sight glass plus return oil line strainer
    R404A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)46706250811710293127991565718881224802645830813
    KTD2.993.834.795.887.18.469.9611.613.3815.3
    38Refrigeration Capacity (w)4101553972439236115331415517110204032403327987
    KTD2.783.584.55.546.7189.4310.9812.6714.47
    43Refrigeration Capacity (w)36454966653583731049512914156371866721997
    KTD2.63.374.255.256.377.618.9710.4512.05

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling
    3 phase EC condenser fans are speed controlled from 0% to 100% via Carel controller
    Compressor fitted with CRII 10-100% capacity regulation controlled by Carel controller plus head cooling fan fitted
    Fitted with oil reservoir/separator combo, oil level regulator & oil return strainer
    Fitted with suction accumulator and liquid receiver
    Fitted with liquid line drier shell & sight glass plus return oil line strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information
    R507
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)46706250811710293127991565718881224802645830813
    KTD2.993.834.795.887.18.469.9611.613.3815.3
    38Refrigeration Capacity (w)4101553972439236115331415517110204032403327987
    KTD2.783.584.55.546.7189.4310.9812.6714.47
    43Refrigeration Capacity (w)36454966653583731049512914156371866721997
    KTD2.63.374.255.256.377.618.9710.4512.05

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling
    3 phase EC condenser fans are speed controlled from 0% to 100% via Carel controller
    Compressor fitted with CRII 10-100% capacity regulation controlled by Carel controller plus head cooling fan fitted
    Fitted with oil reservoir/separator combo, oil level regulator & oil return strainer
    Fitted with suction accumulator and liquid receiver
    Fitted with liquid line drier shell & sight glass plus return oil line strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information
    R449A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)3753522770049110115781443617717214412563130304
    KTD2.493.284.215.286.57.899.4311.1613.0615.15
    38Refrigeration Capacity (w)3295464762838231105201317816230196952359127930
    KTD2.33.063.964.996.177.51910.6612.4914.49
    43Refrigeration Capacity (w)292941805700751796571214315002182482189425941
    KTD2.152.883.754.755.897.198.6310.2311.9913.91

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling
    3 phase EC condenser fans are speed controlled from 0% to 100% via Carel controller
    Compressor fitted with CRII 10-100% capacity regulation controlled by Carel controller plus head cooling fan fitted
    Fitted with oil reservoir/separator combo, oil level regulator & oil return strainer
    Fitted with suction accumulator and liquid receiver
    Fitted with liquid line drier shell & sight glass plus return oil line strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information
    R448A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)3748522770109124116031447417771215122572230418
    KTD2.513.314.255.336.567.969.5311.2713.215.32
    38Refrigeration Capacity (w)3290464862908247105471321816286197702368628047
    KTD2.323.093.995.046.237.589.0910.7712.6214.65
    43Refrigeration Capacity (w)292541825709753496851218515059183222198826056
    KTD2.162.93.784.795.957.268.7210.3412.1214.07

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling
    3 phase EC condenser fans are speed controlled from 0% to 100% via Carel controller
    Compressor fitted with CRII 10-100% capacity regulation controlled by Carel controller plus head cooling fan fitted
    Fitted with oil reservoir/separator combo, oil level regulator & oil return strainer
    Fitted with suction accumulator and liquid receiver
    Fitted with liquid line drier shell & sight glass plus return oil line strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information
    R513A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)5800751495451192014661177852130825239
    KTD3.564.445.466.627.949.4211.0712.89
    38Refrigeration Capacity (w)5281686987491094513475163571960123215
    KTD3.384.225.196.317.568.9710.5312.25
    43Refrigeration Capacity (w)4840632380791012612484151651817821528
    KTD3.214.034.966.037.248.5810.0711.7

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling
    3 phase EC condenser fans are speed controlled from 0% to 100% via Carel controller
    Compressor fitted with CRII 10-100% capacity regulation controlled by Carel controller plus head cooling fan fitted
    Fitted with oil reservoir/separator combo, oil level regulator & oil return strainer
    Fitted with suction accumulator and liquid receiver
    Fitted with liquid line drier shell & sight glass plus return oil line strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information
    R134A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)5270692189001123913965171052067824698
    KTD3.274.115.16.247.559.0310.6912.55
    38Refrigeration Capacity (w)4813635081931037012906158231913922863
    KTD3.113.924.875.977.228.6310.2211.98
    43Refrigeration Capacity (w)442358697600964412023147581786121343
    KTD2.963.754.675.736.938.299.8111.5

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling
    3 phase EC condenser fans are speed controlled from 0% to 100% via Carel controller
    Compressor fitted with CRII 10-100% capacity regulation controlled by Carel controller plus head cooling fan fitted
    Fitted with oil reservoir/separator combo, oil level regulator & oil return strainer
    Fitted with suction accumulator and liquid receiver
    Fitted with liquid line drier shell & sight glass plus return oil line strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information
