Enthalpy TD Semi CondUnit-3Ø 30HP.Oil Reg.CMRC CapCon.EC Fan - TD4GE30MC723LLCM
Enthalpy TD Semi CondUnit-3Ø 30HP.Oil Reg.CMRC CapCon.EC Fan
Part Number: TD4GE30MC723LLCMEnthalpy TD Semi CondUnit-3Ø 30HP.Oil Reg.CMRC CapCon.EC Fan
Part Number: TD4GE30MC723LLCMSign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

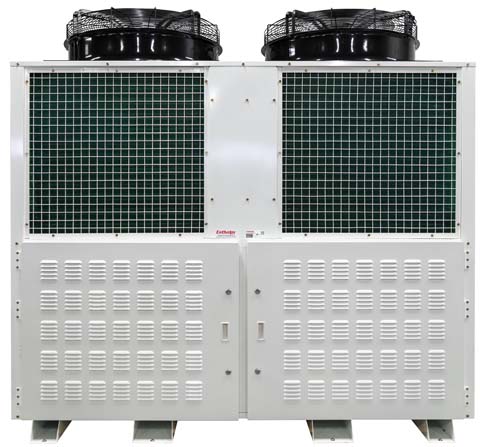

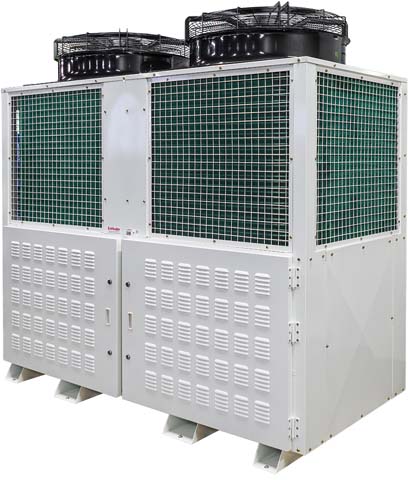

Enthalpy TD Semi-Hermetic Condensing Units
Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.
The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.
The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.
Standard Fitted Features:
- Weatherproof White Powder coated unit casing
- Semi-Hermetic Bitzer Compressors
- Compressor oil sight glass
- Crankcase Heater
- HP/LP Control
- Gomax Flexible Control Hoses
- Liquid Line Drier & Sight Glass
- Oil separator (Pre-charged with Poe oil)
- Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
- Top Discharge High Ambient Condenser
- Space saving unit design (Can be installed into a corner or back to back)
- ebm-papst condenser Fans – single Phase
- Saginomiya Condenser Fan Speed Controller
- 3PH Contactor & Electronic Motor Protection Relay
- Phase Loss & Phase Imbalance Protection
- Dust & Weatherproof Electrical Box
- Pre-Wired Back to Electrical Box
- 1.22mm (18G) Interconnecting Copper Pipe Work
- Pre-Drilled ready to fit IPW series isolating switch
- Discharge Vibration Eliminator
- Suction Accumulator
Condensing Unit Specifications Weight | 900 Kg |
Liquid Line Connection | 7/8 " |
Suction Line Connection | 2-1/8 " |
Receiver Capacity R404A | 34 Kg |
Compressor Nominal HP | 30 HP |
Max Continuous Current | 51.2 Amps |
Voltage | 380-400V / 3 / 50Hz |
Motor Type | P.W.S. |
Crankcase Heater | 230V / 1 / 50Hz |
Fan Motors Total FLA | 6.2 Amps |
Quantity | 2 |
Diameter | 800 mm |
Voltage | 400V / 3 / 50Hz |
Sound Data High Speed | 72 dB(A) |
Speed Controlled | 62 dB(A) |
Compressor Model | 4GE30Y |
Compressor Contactor | MC32A240V |
Compressor Electronic Overload | GMP403P40A |
Circuit Breaker Control Circuit | PLSMD4 |
Circuit Breaker Condenser Fans | PLSMD16 |
EC Fan 3 Pole Contactor | GMC9M10 |
EC Fan 3 Pole Circuit Breaker | BKN63P10D |
Liquid Receiver | HHR018 |
Receiver Outlet Valve | R052FB7DS |
Receiver Outlet Gasket | 20002802 |
Receiver Inlet Valve | R053FB7DS |
Receiver Inlet Gasket | 20002803 |
Unit Electrical Box | EUR705020 |
Controller Box MC72 Case | AIRENTENCL |
Liquid Line Sight Glass | SA17S |
Suction Accumulator | 3100348615 |
Unit Start Delay Timer | ICM105 |
Oil Reservoir Separator Combo (no float) | 3.07E+06 |
Compressor CRII Solenoid Valve | 34760148 |
Oil Level Monitor / Regulator (DEKA) | 308COM1230 |
Compressor Oil Monitor | 34739401 |
Oil Return Strainer | SH9105 |
Suction Line Drier Shell | NFDS4817 |
Liquid Line Drier Shell | NFDS487 |
Liquid Line Drier Core | RC4864 |
Suction Line Filter Element | RPE48BD |
Low Pressure Control | SNSC106X |
High Pressure Control | SNSC130X |
CM-RC-01 Control Module | 34702850 |
Compressor Head Cooling Fan | 34302124 |
Low Pressure Transducer (Carel) | SPKT0143P0 |
High Pressure Transducer (Carel) | SPKT0033P0 |
Condenser Fan Model (ebm) | W3G800KS3903 |
Carel Controller | IR33E9HR20 |
TD Case Model | MC72 |
R404A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 12129 | 16240 | 20997 | 26432 | 32563 | 39393 | 46911 | 55077 | 63846 | 73134 |
38 | 10653 | 14398 | 18733 | 23686 | 29268 | 35473 | 42284 | 49654 | 57533 | 65826 |
43 | 9446 | 12883 | 16864 | 21408 | 26525 | 32201 | 38412 | 45108 | 52222 | |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel IR33) & head cooling fan
3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
Alternating digital display of discharge & suction pressures via the Carel IR33 controller
Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R507 Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 12129 | 16240 | 20997 | 26432 | 32563 | 39393 | 46911 | 55077 | 63846 | 73134 |
38 | 10653 | 14398 | 18733 | 23686 | 29268 | 35473 | 42284 | 49654 | 57533 | 65826 |
43 | 9446 | 12883 | 16864 | 21408 | 26525 | 32201 | 38412 | 45108 | 52222 | |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel IR33) & head cooling fan
3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
Alternating digital display of discharge & suction pressures via the Carel IR33 controller
Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R449A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 |
---|
32 | 9665 | 13543 | 18124 | 23464 | 29609 | 36590 | 44435 | 53143 | 62704 | 73084 |
38 | | 12033 | 16258 | 21188 | 26862 | 33308 | 40543 | 48562 | 57349 | 66864 |
43 | | 10787 | 14713 | 19296 | 24575 | 30570 | 37290 | 44731 | 52867 | |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel IR33) & head cooling fan
3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
Alternating digital display of discharge & suction pressures via the Carel IR33 controller
Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R513A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
---|
32 | 15222 | 19775 | 25060 | 31102 | 37926 | 45544 | 53932 | 63072 |
38 | 13831 | 18066 | 22970 | 28564 | 34871 | 41892 | 49605 | 57984 |
43 | 12619 | 16595 | 21190 | 26420 | 32301 | 38831 | 45988 | 53737 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel IR33) & head cooling fan
3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
Alternating digital display of discharge & suction pressures via the Carel IR33 controller
Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
R134A Ambient (°C) | Refrigeration Capacity (w) |
---|
Evaporating Temperature (°C) |
---|
-25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
---|
32 | 13808 | 18233 | 23431 | 29446 | 36309 | 44051 | 52668 | 62144 |
38 | 12568 | 16714 | 21574 | 27185 | 33580 | 40777 | 48771 | 57541 |
43 | 11480 | 15400 | 19988 | 25275 | 31289 | 38041 | 45524 | 53713 |
Note:
Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
Compressor fitted with CRII 10-100% capacity regulation (CM-RC-01 module controlled by Carel IR33) & head cooling fan
3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
Alternating digital display of discharge & suction pressures via the Carel IR33 controller
Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
