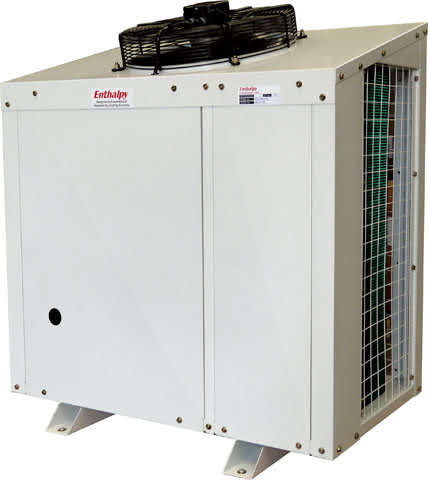

Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 0.75HP

Part Number: TD2JES07ML3003

Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 0.75HP

Part Number: TD2JES07ML3003
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 0.75HP
Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 0.75HP

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight130 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection5/8 "
    Receiver Capacity R404A4.29 Kg
    Compressor
    Nominal HP0.75 HP
    Max Continuous Current3.7 Amps
    Voltage380-420V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater230 / 1 / 50Hz 0-60w
    Fan Motors
    Total FLA0.32 Amps
    Quantity1
    Diameter300 mm
    Voltage230V / 1 / 50Hz
    Sound Data
    High Speed52 dB(A)
    Speed Controlled50 dB(A)
  • Compressor Model2JES07Y
    Compressor ContactorMC12B240V
    Compressor Electronic OverloadGMP223P5A
    Circuit Breaker Control CircuitPLSMD10
    Oil Separator (Internal Float)EOS1004L
    Liquid Receiver1300134B
    Receiver Outlet ValveR051FA8DS
    Receiver Outlet Gasket020002800PK
    Unit Electrical BoxAIRENTENCL
    Liquid Line Drier / Sight Glass ComboCSG084S
    Suction AccumulatorPA5083116C
    Unit Start Delay TimerICM105
    Dual Pressure ControlDNSD306X
    Condenser Fan Model (ebm)S4E300AS7244
    Fan Speed ControllerRGEZ1N45MFQ1
    TD Case ModelML400
  • Enthalpy_TD-D
  • (B1)FBTDBIT1FAN(090424)FBTDBIT1FAN(010114)
  • R404A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)56481511071442182122472722324638174437
    KTD2.793.724.745.857.068.399.8411.4113.1114.93
    38Refrigeration Capacity (w)4566879541260160819972431290834273989
    KTD2.443.354.345.426.67.879.2610.7512.3614.08
    43Refrigeration Capacity (w)3705838311113143417932193263131063618
    KTD2.143.044.025.076.217.458.7810.2111.7413.37

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)56481511071442182122472722324638174437
    KTD2.793.724.745.857.068.399.8411.4113.1114.93
    38Refrigeration Capacity (w)4566879541260160819972431290834273989
    KTD2.443.354.345.426.67.879.2610.7512.3614.08
    43Refrigeration Capacity (w)3705838311113143417932193263131063618
    KTD2.143.044.025.076.217.458.7810.2111.7413.37

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)4106328991220159520302524308137014383
    KTD2.072.913.884.996.267.679.2410.9512.8314.85
    38Refrigeration Capacity (w)3315327761068141218092260276933353958
    KTD1.822.613.534.65.87.158.6510.2912.0714
    43Refrigeration Capacity (w)251438663934125216202040251330373616
    KTD1.582.333.224.245.416.718.169.7411.4613.32

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R448A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)4076319001220159720332529308737104393
    KTD2.082.933.925.056.337.769.3511.0912.9915.04
    38Refrigeration Capacity (w)3295307761068141318122265277633443969
    KTD1.842.633.574.645.877.248.7510.4112.2214.18
    43Refrigeration Capacity (w)249435662934125416232045252030463628
    KTD1.592.353.254.295.476.798.269.8711.6113.5

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)665935125016122025249330173600
    KTD3.074.065.156.377.719.210.8312.62
    38Refrigeration Capacity (w)581837113314741861230027913334
    KTD2.853.834.916.097.398.8210.3812.08
    43Refrigeration Capacity (w)519762104313651731214526063117
    KTD2.683.664.735.887.148.5210.0111.64

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Saginomiya fan speed controller will require to be adjusted to suit R513a refrigerant at time of commissioning.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)581843115115091920239129233519
    KTD2.763.714.785.977.38.7910.4412.27
    38Refrigeration Capacity (w)502752104413831772221727183279
    KTD2.553.514.565.737.028.4510.0411.79
    43Refrigeration Capacity (w)44568396212851656207825553087
    KTD2.43.354.395.546.88.29.7311.41

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Saginomiya fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R515B
    Ambient (°C)Evaporating Temperature (°C)
    -15-10-50510
    32Refrigeration Capacity (w)83311121435180622292708
    KTD3.614.565.636.848.199.69
    38Refrigeration Capacity (w)73710001305165520522502
    KTD3.384.315.366.527.829.26
    43Refrigeration Capacity (w)6639131203153419112337
    KTD3.194.125.146.277.538.91

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Saginomiya fan speed controller will require to be adjusted to suit R515B refrigerant at time of commissioning.
    R515B_DA12
    Ambient (°C)Evaporating Temperature (°C)
    -15-10-50510
    32Refrigeration Capacity (w)76510331347171221312610
    KTD
    38Refrigeration Capacity (w)6689191215155919562409
    KTD
    43Refrigeration Capacity (w)5928311111143818152247
    KTD

    Note:

    DA12 capacity ratings: 15.0K Suction Gas Superheat & 0K Liquid Sub Cooling
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Saginomiya fan speed controller will require to be adjusted to suit R515B refrigerant at time of commissioning.
