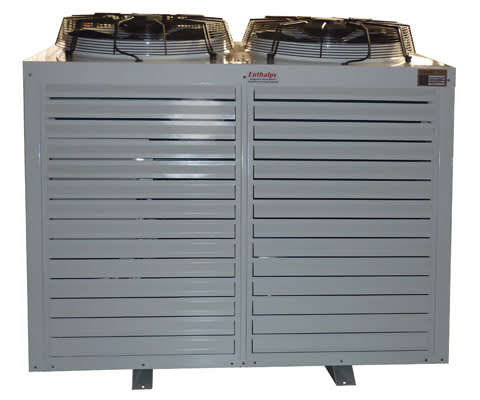

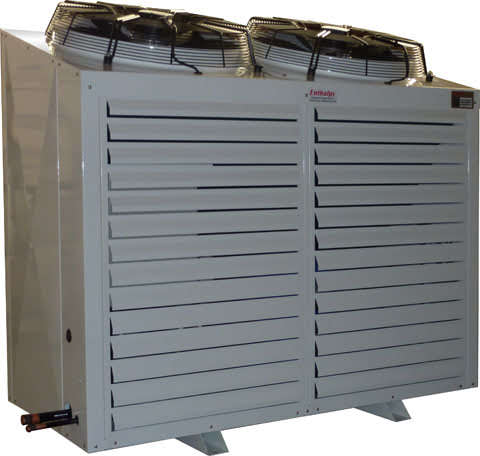

Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 12HP

Part Number: TD4TES12MP383

Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 12HP

Part Number: TD4TES12MP383
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 12HP
Enthalpy TD Semi-Hermetic Condensing Unit - 3Ø 12HP

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight385 Kg
    Liquid Line Connection5/8 "
    Suction Line Connection1-3/8 "
    Receiver Capacity R404A12 Kg
    Compressor
    Nominal HP12 HP
    Max Continuous Current25.1 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeP.W.S.
    Crankcase Heater230V / 1 / 50Hz 140w
    Fan Motors
    Total FLA5.4 Amps
    Quantity2
    Diameter630 mm
    Voltage230V / 1 / 50Hz
    Sound Data
    High Speed62 dB(A)
    Speed Controlled60 dB(A)
  • Compressor Model4TES12Y
    Compressor ContactorMC22B240V
    Compressor Electronic OverloadGMP223P22A
    Circuit Breaker Control CircuitPLSMD10
    Circuit Breaker Condenser FansPLSMD16
    Oil Separator (Internal Float)EOS1007
    Liquid Receiver1320620A
    Receiver Outlet ValveR051FB2DS
    Receiver Outlet Gasket020002800PK
    Unit Electrical BoxBM40515G
    Liquid Line DrierC305S
    Liquid Line Sight GlassSA15S
    Suction Accumulator1010854P
    Compressor Part Wind Start TimerCRM93H
    Unit Start Delay TimerICM105
    Compressor Oil Monitor34733403
    Dual Pressure ControlDNSD306X
    Condenser Fan Model (ebm)S6E630AN0101
    Fan Speed ControllerRGEZ1Q45MFQ1
    TD Case ModelMP38
  • Enthalpy_TD_MP38
  • (B6-02)TD4TMP38(010924)(B6)TD4TMP38(090424)
  • R404A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)54717425973012408154781895322828271023175336749
    KTD3.464.495.687.038.5510.2412.0914.116.2718.58
    38Refrigeration Capacity (w)47346505860011040138421701120542244272864033140
    KTD3.184.165.296.578.029.6211.3813.2815.3117.47
    43Refrigeration Capacity (w)41425762768499261250115412186522220426036
    KTD2.953.884.976.27.589.1110.7812.5814.5

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)54717425973012408154781895322828271023175336749
    KTD3.464.495.687.038.5510.2412.0914.116.2718.58
    38Refrigeration Capacity (w)47346505860011040138421701120542244272864033140
    KTD3.184.165.296.578.029.6211.3813.2815.3117.47
    43Refrigeration Capacity (w)41425762768499261250115412186522220426036
    KTD2.953.884.976.27.589.1110.7812.5814.5

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)43446150833310927139621747221472259803100436537
    KTD2.793.814.986.327.849.5511.4413.5415.8318.32
    38Refrigeration Capacity (w)539473979785125881583519539237152836733482
    KTD3.484.625.917.389.0210.8412.8415.0217.38
    43Refrigeration Capacity (w)478366398857114661449417951218452618230943
    KTD3.24.315.576.998.5710.3212.2414.3316.57

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R448A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)43356146833610939139871751121529260553110136657
    KTD2.813.835.026.377.919.6411.5613.6815.9918.51
    38Refrigeration Capacity (w)539174019799126151587719598237932846633603
    KTD3.514.655.967.459.110.9412.9715.1817.56
    43Refrigeration Capacity (w)478066438872114931453618010219242627931060
    KTD3.234.345.627.058.6510.4212.3714.4816.75

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)69269105116461457217909216682586530502
    KTD4.25.346.658.139.7711.5913.5815.76
    38Refrigeration Capacity (w)62428246105871329016373198472372227999
    KTD3.955.046.287.689.2410.9712.8714.94
    43Refrigeration Capacity (w)5688754697231223815108183422194625920
    KTD3.754.785.967.38.810.4612.2714.25

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Saginomiya fan speed controller will require to be adjusted to suit R513a refrigerant at time of commissioning.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)62498362108531375417095208992518229965
    KTD3.824.936.217.669.311.1213.1515.38
    38Refrigeration Capacity (w)5644759799051260015709192502323727686
    KTD3.614.665.887.268.8310.5812.5214.65
    43Refrigeration Capacity (w)5156697791351165814572178942163325795
    KTD3.444.445.66.938.4310.1211.9914.04

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Saginomiya fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

  • Notes for Commissioning:

    ●
    Set Dual Pressure Control to suit application.
    ●
    Set Fan Speed Control to suit application (ie: R134a).
    ●
    Adjust Motor Current Overload to suit application.
    ●
    Unit delivered with 1200 kpa nitrogen holding charge.
    ●
    Remove/adjust transport protection (Bitzer comps only).
    ●
    Check integrity of electrical connections/terminations.
    ●
    Check integrity of fixing screws & bolts etc.
