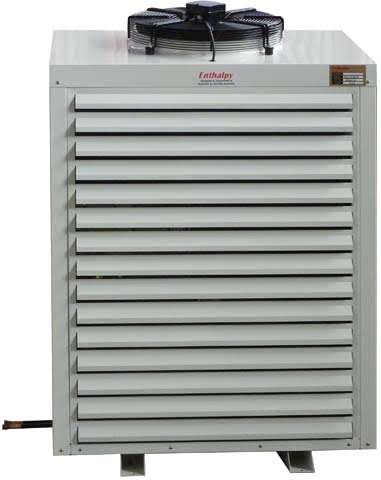

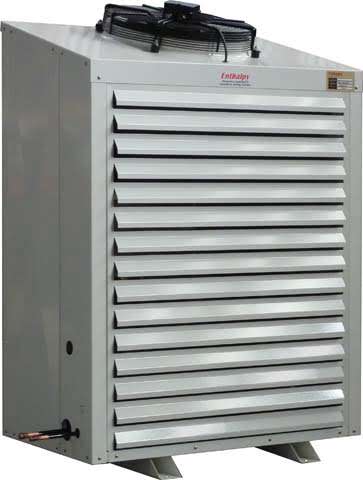

Enthalpy TD Semi-Hermetic Condensing Unit -3Ø 3HP

Part Number: TD2DES3MP123

Enthalpy TD Semi-Hermetic Condensing Unit -3Ø 3HP

Part Number: TD2DES3MP123
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Enthalpy TD Semi-Hermetic Condensing Unit -3Ø 3HP
Enthalpy TD Semi-Hermetic Condensing Unit -3Ø 3HP

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight195 Kg
    Liquid Line Connection5/8 "
    Suction Line Connection7/8 "
    Receiver Capacity R404A8.1 Kg
    Compressor
    Nominal HP3 HP
    Max Continuous Current8.6 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater230V / 1 / 50Hz 120w
    Fan Motors
    Total FLA1.55 Amps
    Quantity1
    Diameter450 mm
    Voltage230V / 1 / 50Hz
    Sound Data
    High Speed60 dB(A)
    Speed Controlled57 dB(A)
  • Compressor - Bitzer2DES3Y
    ebm Fan MotorS4E450AU0337
    Speed ControllerRGEZ1N45MF
    HP/LPDNSD306X
    Compressor ContactorMC12B240V
    Thermal Overload BlockGMP223P22A
    Control Fuse HolderCMS101
    Control Fuse10G10
    Oil SeparatorEOS1005
    Liquid Receiver1320315A
    Receiver Outlet Valve2605101620
    Receiver Valve Gasket20002800
    Liquid Drier & Sight GlassCSG165S (combo)
    Electrical BoxAIR50650
    Suction AccumulatorPA5083157C
  • Enthalpy_TD_MP12
  • (B3)TD2DES3+2CES3-MP123(090424)TD2DES3MP123(010114)
  • R404A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)183525213311421352326367762389981048512080
    KTD3.194.155.226.417.729.1610.7212.4114.2116.12
    38Refrigeration Capacity (w)15762204292437474672570268388077941210837
    KTD2.913.834.855.997.238.5910.0611.6413.3215.08
    43Refrigeration Capacity (w)1354193125943348419551386173729885079789
    KTD2.663.544.525.616.88.099.4810.9612.5414.18

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)183525213311421352326367762389981048512080
    KTD3.194.155.226.417.729.1610.7212.4114.2116.12
    38Refrigeration Capacity (w)15762204292437474672570268388077941210837
    KTD2.913.834.855.997.238.5910.0611.6413.3215.08
    43Refrigeration Capacity (w)1354193125943348419551386173729885079789
    KTD2.663.544.525.616.88.099.4810.9612.5414.18

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)141620262757361846225780710285941026512116
    KTD2.553.434.455.626.958.4510.1211.9714.0116.24
    38Refrigeration Capacity (w)12121773244732444177525564847874942811146
    KTD2.33.154.145.286.578.019.6211.413.3615.5
    43Refrigeration Capacity (w)10451565219229373810481959737276873010334
    KTD2.082.913.874.986.237.639.1910.9112.814.86

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R448A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)137219682681352345065641693684021004311865
    KTD2.493.364.375.536.848.329.9611.813.8116.03
    38Refrigeration Capacity (w)11741722238031614074513063377702923010922
    KTD2.253.094.075.196.467.889.4711.2413.1815.3
    43Refrigeration Capacity (w)10131520213328623717470758397120855110131
    KTD2.042.863.84.896.137.519.0510.7512.6314.67

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)229530243873485059617215861210158
    KTD3.824.825.967.248.6710.2612.0113.93
    38Refrigeration Capacity (w)20732750353744435472663279239349
    KTD3.64.565.656.888.259.7711.4313.25
    43Refrigeration Capacity (w)18912524326041075068614973518677
    KTD3.414.335.386.577.899.3410.9312.67

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Saginomiya fan speed controller will require to be adjusted to suit R513a refrigerant at time of commissioning.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)20682775360645735685694983739959
    KTD3.494.455.566.828.259.8411.6213.58
    38Refrigeration Capacity (w)18702530330642095246642577519228
    KTD3.294.225.296.517.889.4111.1112.98
    43Refrigeration Capacity (w)17072328306039094885599272378622
    KTD3.124.025.066.237.569.0310.6712.46

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    1 phase AC fans are speed controlled via Saginomiya RGEZ controller
    Saginomiya fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Saginomiya fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fitted with suction accumulator, liquid receiver, liquid line drier & sight glass combo
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

  • Notes for Commissioning:

    ●
    Set Dual Pressure Control to suit application.
    ●
    Set Fan Speed Control to suit application (ie: R134a).
    ●
    Adjust Motor Current Overload to suit application.
    ●
    Unit delivered with 1200 kpa nitrogen holding charge.
    ●
    Remove/adjust transport protection (Bitzer comps only).
    ●
    Check integrity of electrical connections/terminations.
    ●
    Check integrity of fixing screws & bolts etc.
