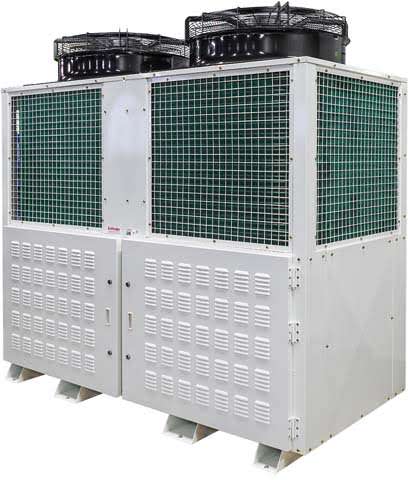

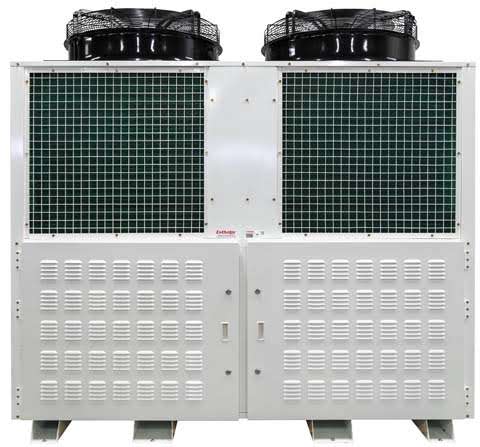

Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 25HP EC Fan

Part Number: TD4HE25MC723SU

Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 25HP EC Fan

Part Number: TD4HE25MC723SU
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 25HP EC Fan
Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 25HP EC Fan

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight780 Kg
    Liquid Line Connection7/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A34 Kg
    Compressor
    Nominal HP25 HP
    Max Continuous Current44 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeP.W.S.
    Crankcase Heater230V / 1 / 50Hz
    Fan Motors
    Total FLA6.2 Amps
    Quantity2
    Diameter800 mm
    Voltage400V / 3 / 50Hz
    Sound Data
    High Speed73 dB(A)
    Speed Controlled62 dB(A)
  • Compressor - Bitzer4HE25Y
    ebm EC Fan MotorW3G800KS3903
    Fan Speed & Comp Unloader ControllerIR33E9HR20
    HP/LPDNSD306X
    Compressor ContactorMC32A240V
    Thermal Overload BlockGMP403P40A
    Control Circuit BreakerPLSMD10
    Crankcase Heater Circuit BreakerPLSMD10
    EC Fan 3 Pole ContactorMC12B240V
    EC Fan 3 Pole Circuit BreakerBKN63P10D
    Oil Separator1030122U
    Liquid ReceiverHHR018
    Receiver Outlet ValveR052FB7DS
    Receiver Outlet Valve Gasket20002802
    Receiver Inlet ValveR053FB7DS
    Receiver Inlet Valve Gasket20002803
    Liquid Line Sight GlassSA17S
    Liquid Line Drier CoreRC4864
    Electrical BoxEUR705020
    Suction Accumulator3100348615
    Timer - Part Wind StartCRM93H
    Oil Level Monitor - DELTA PII34731911
  • Enthalpy_TD_MC72
  • (B11-2)TD4H25+4G30+4FE28-MC72SU(010924)(B11)TD4H25+4G30+4FE28-MC72SU(090424)
  • R404A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)10451141151837323265288183505241972495735782166682
    KTD3.454.435.556.818.29.7411.4313.2615.2117.3
    38Refrigeration Capacity (w)9093124421634020817258983159437903448115227560253
    KTD3.174.115.186.387.719.1710.7612.4814.3216.26
    43Refrigeration Capacity (w)7983110681466218789234702871134500408204761454828
    KTD2.933.844.866.017.288.6810.1911.8213.5415.35

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)10451141151837323265288183505241972495735782166682
    KTD3.454.435.556.818.29.7411.4313.2615.2117.3
    38Refrigeration Capacity (w)9093124421634020817258983159437903448115227560253
    KTD3.174.115.186.387.719.1710.7612.4814.3216.26
    43Refrigeration Capacity (w)7983110681466218789234702871134500408204761454828
    KTD2.933.844.866.017.288.6810.1911.8213.5415.35

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)8258117001577820551260753239039535475415641166153
    KTD2.863.84.886.137.539.110.8412.7614.8517.12
    38Refrigeration Capacity (w)103061408118505236282948836114435305173660726
    KTD3.534.585.787.138.6410.312.1314.1116.25
    43Refrigeration Capacity (w)91551267516806215902706733256401744782056175
    KTD3.314.335.496.798.249.8411.5813.4715.5

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R448A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)8238116911578420576261213246039634476715657266348
    KTD2.883.834.946.27.629.2110.9812.9315.0517.34
    38Refrigeration Capacity (w)102981408918533236782956336218436645190160925
    KTD3.574.635.857.228.7410.4312.2914.316.46
    43Refrigeration Capacity (w)91481268316834216412714333361403094798556370
    KTD3.344.375.556.878.349.9611.7313.6515.7

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)1313117148218102715433213400134756755875
    KTD4.155.216.427.789.310.9712.814.79
    38Refrigeration Capacity (w)1187415611199412489730508367944376251410
    KTD3.924.946.17.48.8410.4212.1614.03
    43Refrigeration Capacity (w)1081014316183732301028248341064058847687
    KTD3.74.695.817.068.449.9611.6113.39

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)1187815779203562565731729386084631854876
    KTD3.794.8267.348.8510.5312.414.44
    38Refrigeration Capacity (w)1075314406186872364029305357154288750834
    KTD3.584.585.727.018.4510.0611.8313.77
    43Refrigeration Capacity (w)979813248172872195527286333084003647477
    KTD3.394.365.466.718.19.6511.3513.2

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
