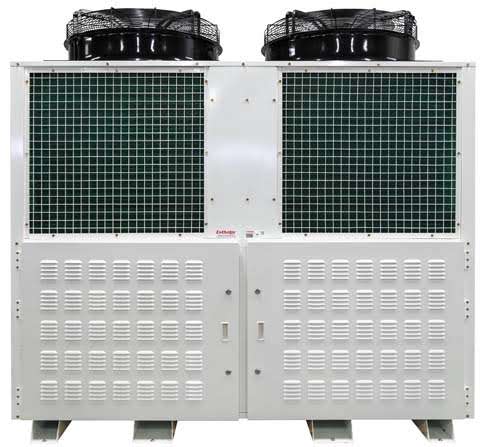

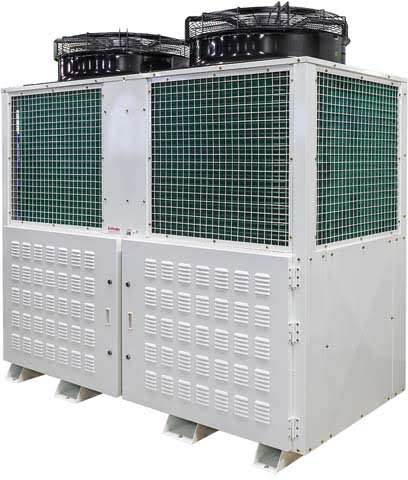

Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 30HP EC Fan

Part Number: TD4GE30MC723SU

Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 30HP EC Fan

Part Number: TD4GE30MC723SU
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 30HP EC Fan
Enthalpy TD Semi-Hermetic Series Cond Unit - 3Ø 30HP EC Fan

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight790 Kg
    Liquid Line Connection7/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A34 Kg
    Compressor
    Nominal HP30 HP
    Max Continuous Current51.2 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeP.W.S.
    Crankcase Heater230V / 1 / 50Hz
    Fan Motors
    Total FLA6.2 Amps
    Quantity2
    Diameter800 mm
    Voltage400V / 3 / 50Hz
    Sound Data
    High Speed72 dB(A)
    Speed Controlled62 dB(A)
  • Compressor - Bitzer4GE30Y
    ebm EC Fan MotorW3G800KS3903
    Fan Speed & Comp Unloader ControllerIR33E9HR20
    HP/LPDNSD306X
    Compressor ContactorMC32A240V
    Thermal Overload BlockGMP403P40A
    Control Circuit BreakerPLSMD10
    Crankcase Heater Circuit BreakerPLSMD10
    EC Fan 3 Pole ContactorMC12B240V
    EC Fan 3 Pole Circuit BreakerBKN63P10D
    Oil Separator1030122U
    Liquid ReceiverHHR018
    Receiver Outlet ValveR052FB7DS
    Receiver Outlet Valve Gasket20002802
    Receiver Inlet ValveR053FB7DS
    Receiver Inlet Valve Gasket20002803
    Liquid Line Sight GlassSA17S
    Liquid Line Drier CoreRC4864
    Electrical BoxEUR705020
    Suction Accumulator3100348615
    Timer - Part Wind StartCRM93H
    Oil Level Monitor - DELTA PII34731911
  • Enthalpy_TD_MC72
  • (B11-2)TD4H25+4G30+4FE28-MC72SU(010924)(B11)TD4H25+4G30+4FE28-MC72SU(090424)
  • R404A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)12129162402099726432325633939346911550776384673134
    KTD3.995.116.387.799.3611.0712.9414.9417.0819.31
    38Refrigeration Capacity (w)10653143981873323686292683547342284496545753365826
    KTD3.74.775.977.318.810.4212.1814.0516.0318.09
    43Refrigeration Capacity (w)94461288316864214082652532201384124510852222
    KTD3.454.475.626.98.329.8611.5213.2815.13

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)12129162402099726432325633939346911550776384673134
    KTD3.995.116.387.799.3611.0712.9414.9417.0819.31
    38Refrigeration Capacity (w)10653143981873323686292683547342284496545753365826
    KTD3.74.775.977.318.810.4212.1814.0516.0318.09
    43Refrigeration Capacity (w)94461288316864214082652532201384124510852222
    KTD3.454.475.626.98.329.8611.5213.2815.13

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)9665135431812423464296093659044435531436270473084
    KTD3.334.45.637.038.6110.3612.314.4216.7119.17
    38Refrigeration Capacity (w)120331625821188268623330840543485625734966864
    KTD4.125.36.658.169.8411.6913.6915.8518.15
    43Refrigeration Capacity (w)1078714713192962457530570372904473152867
    KTD3.895.036.337.789.3911.1613.0715.12

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R448A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)9645135361813223491296583666544538532756286373267
    KTD3.364.445.697.118.7110.4912.4614.6116.9319.42
    38Refrigeration Capacity (w)120271626921219269173338940652486995751367049
    KTD4.165.366.738.269.9611.8313.8716.0618.39
    43Refrigeration Capacity (w)1078314725193292463130652374004486853028
    KTD3.935.086.47.879.5111.313.2415.31

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)1522219775250603110237926455445393263072
    KTD4.816.047.438.9810.712.614.6716.91
    38Refrigeration Capacity (w)1383118066229702856434871418924960557984
    KTD4.545.737.068.5410.1811.9813.9316.03
    43Refrigeration Capacity (w)1261916595211902642032301388314598853737
    KTD4.295.446.728.159.7211.4413.2915.29

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)1380818233234312944636309440515266862144
    KTD4.45.596.958.4910.2112.1314.2416.55
    38Refrigeration Capacity (w)1256816714215742718533580407774877157541
    KTD4.175.326.638.19.7511.5813.5815.77
    43Refrigeration Capacity (w)1148015400199882527531289380414552453713
    KTD3.945.066.337.769.3511.113.0315.11

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil separator (internal float)
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507_DA12
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)9765133231753422454281333460541903500295897068727
    KTD
    38Refrigeration Capacity (w)8171113371510319520246333047237060443965247061297
    KTD
    43Refrigeration Capacity (w)690797311311017091217172701232991396594697154967
    KTD

    Note:

    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
