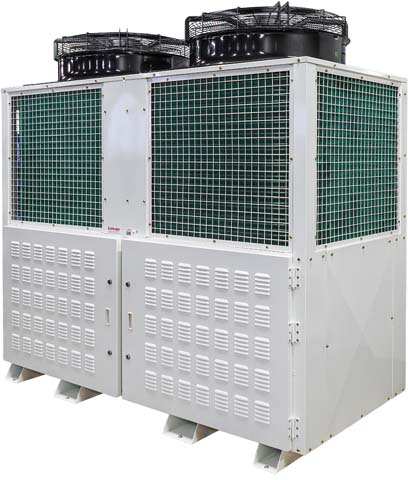

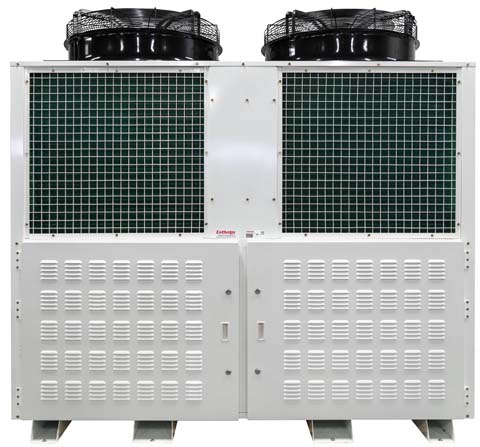

Enthalpy TD Semi MC Cond Unit- 3Ø 25HP. Oil Reg. EC Fan - TD4HE25MC723LL

Enthalpy TD Semi MC Cond Unit- 3Ø 25HP. Oil Reg. EC Fan

Part Number: TD4HE25MC723LL

Enthalpy TD Semi MC Cond Unit- 3Ø 25HP. Oil Reg. EC Fan

Part Number: TD4HE25MC723LL
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy TD Semi-Hermetic Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Weatherproof White Powder coated unit casing
    • Semi-Hermetic Bitzer Compressors
    • Compressor oil sight glass
    • Crankcase Heater
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil separator (Pre-charged with Poe oil)
    • Liquid Receiver• Supercoatcondenser treatment (5000 Hour Salt Spray Test)
    • Top Discharge High Ambient Condenser
    • Space saving unit design (Can be installed into a corner or back to back)
    • ebm-papst condenser Fans – single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Dust & Weatherproof Electrical Box
    • Pre-Wired Back to Electrical Box
    • 1.22mm (18G) Interconnecting Copper Pipe Work
    • Pre-Drilled ready to fit IPW series isolating switch
    • Discharge Vibration Eliminator
    • Suction Accumulator
  • Condensing Unit Specifications
    Weight890 Kg
    Liquid Line Connection7/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A34 Kg
    Compressor
    Nominal HP25 HP
    Max Continuous Current44 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeP.W.S.
    Crankcase Heater230V / 1 / 50Hz
    Fan Motors
    Total FLA6.2 Amps
    Quantity2
    Diameter800 mm
    Voltage400V / 3 / 50Hz
    Sound Data
    High Speed73 dB(A)
    Speed Controlled62 dB(A)
  • Carel ControllerIR33E9HR20
    Circuit Breaker Control CircuitPLSMD10
    Compressor Capacity Unloader Solenoid Valve34760148
    Compressor ContactorMC32A240V
    Compressor Electronic OverloadGMP403P40A
    Compressor Model4HE25Y
    Compressor Oil Monitor34731911
    Compressor Part Wind Start TimerCRM93H
    Condenser Fan Model (ebm)W3G800KS3903
    Controller Box MC72 CaseAIRENTENCL
    Dual Pressure ControlDNSD306X
    EC Fan 3 Pole Circuit BreakerBKN63P10D
    EC Fan 3 Pole ContactorGMC9M10
    High Pressure Transducer (Carel)SPKT0033P0
    Liquid Line Drier CoreRC4864
    Liquid Line Drier ShellNFDS487
    Liquid Line Sight GlassSA17S
    Liquid ReceiverHHR018
    Low Pressure Transducer (Carel)SPKT0143P0
    Oil Level Monitor / Regulator (DEKA)308COM1230
    Oil Reservoir Separator Combo (no float)30722E2
    Oil Return StrainerSH9105
    Receiver Inlet Gasket20002803
    Receiver Inlet ValveR053FB7DS
    Receiver Outlet Gasket20002802
    Receiver Outlet ValveR052FB7DS
    Suction Accumulator3100348615
    Suction Line Drier ShellNFDS4817
    Suction Line Filter ElementRPE48BD
    TD Case ModelMC72
    Unit Electrical BoxEUR705020
    Unit Start Delay TimerICM105
  • Enthalpy_TD_MC72
  • (B15)TD25&30MC723LLUnloader+DEKA(15
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3210451141151837323265288183505241972495735782166682
    389093124421634020817258983159437903448115227560253
    437983110681466218789234702871134500408204761454828

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3210451141151837323265288183505241972495735782166682
    389093124421634020817258983159437903448115227560253
    437983110681466218789234702871134500408204761454828

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    328258117001577820551260753239039535475415641166153
    38103061408118505236282948836114435305173660726
    4391551267516806215902706733256401744782056175

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    321313117148218102715433213400134756755875
    381187415611199412489730508367944376251410
    431081014316183732301028248341064058847687

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    321187815779203562565731729386084631854876
    381075314406186872364029305357154288750834
    43979813248172872195527286333084003647477

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Compressor fitted with 50% capacity control (via Saginomiya LP pressure control)
    3 phase EC fans are speed controlled from 0% to 100% via Carel IR33 controller
    Alternating digital display of discharge & suction pressures via the Carel IR33 controller
    Fitted with suction accumulator, oil return strainer, liquid receiver, suction line shell, liquid line drier shell & sight glass
    Fitted with oil reservoir/separator combo, DEKA oil level regulator & oil return strainer
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
