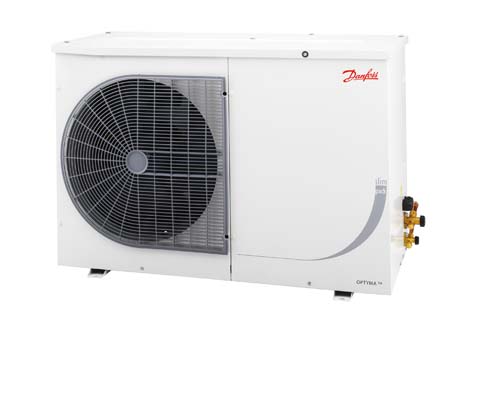

Optyma Slim Condensing Unit - Low Temp - 1Ø 1-1/2HP - OPLPQE048NTW10G

Optyma Slim Condensing Unit - Low Temp - 1Ø 1-1/2HP

Part Number: OPLPQE048NTW10G

Optyma Slim Condensing Unit - Low Temp - 1Ø 1-1/2HP

Part Number: OPLPQE048NTW10G
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Crankcase Heater (Low Temp Models Only)
    • Service Shut Off Valves

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

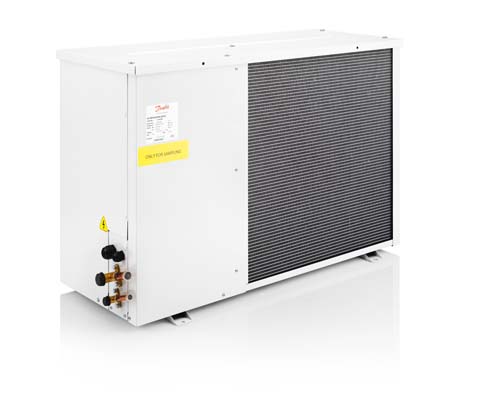

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

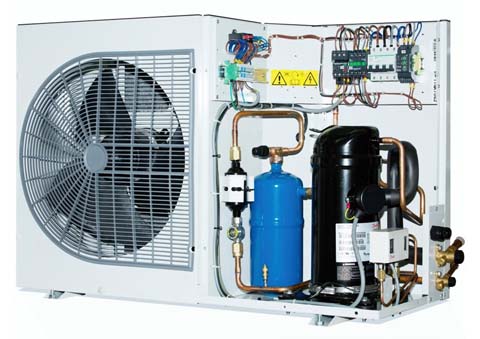

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight62 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection5/8 "
    Receiver Capacity3.4 L
    Compressor
    Nominal HP1.5 HP
    Max Continuous Current11 Amps
    Locked Rotor Amps37 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase HeaterPTC 240V / 1 / 50Hz
    Fan Motors
    Total FLA1.1 Amps
    Quantity1
    Diameter457 mm
    Voltage230V / 1 / 50Hz
  • Circuit Breaker118U3976
    Comp Contactor118U3894
    Comp Overload118U3877
    Comp Run Cap8173041
    Comp Start Cap8173001
    Comp Start Relay8173022
    CompressorNTZ0485LR1
    Condenser118U5218
    Crankcase Heater120Z0459
    Fan BladeRefer to Technical Guide
    Fan Grille/Guard118U3484
    Fan Motor + CapacitorRefer to Technical Guide
    Fan Speed ControlRefer to Technical Guide
    Filter DrierDML084
    HP/LP Control60539766
    Seq Phase Relay118U3882
    Sight GlassSGP12N
  • danfoss_optyma_b2
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10
    3266399614001877243030603765
    3851481311741600209426573290
    433946639871370181423212892

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10
    3266399614001877243030603765
    3851481311741600209426573290
    433946639871370181423212892

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
