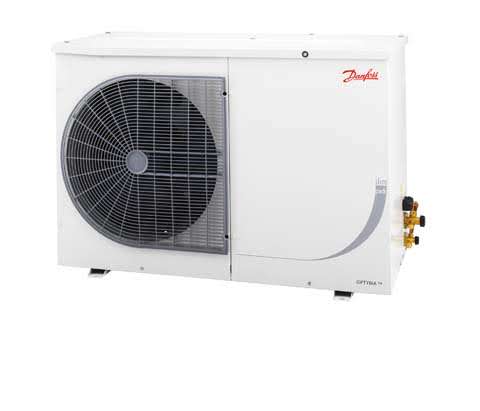

Optyma Slim Condensing Unit - Low Temp - 1Ø 2HP - OPLPQE068NTW10G

Optyma Slim Condensing Unit - Low Temp - 1Ø 2HP

Part Number: OPLPQE068NTW10G

Optyma Slim Condensing Unit - Low Temp - 1Ø 2HP

Part Number: OPLPQE068NTW10G
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Crankcase Heater
    • Service Shut Off Valves

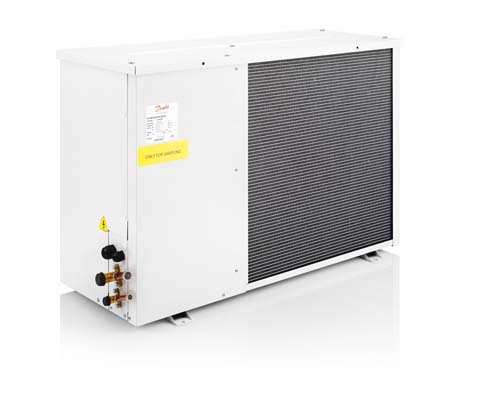

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

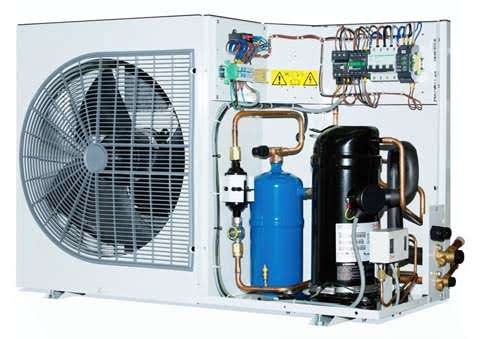

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight64 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection5/8 "
    Receiver Capacity3.4 L
    Compressor
    Nominal HP2 HP
    Max Continuous Current17 Amps
    Locked Rotor Amps53 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase HeaterNot Supplied (PTC 240V / 1 / 50Hz - P/No: 120Z0459)
    Fan Motors
    Total FLA1.1 Amps
    Quantity1
    Diameter457 mm
    Voltage230V / 1 / 50Hz
  • OPLPQE068NTW10G
    Compressor120F0232 - NTZ068-5B (1PH)
    Comp Contactor118U3896 - LC1E1801M5
    Comp Start Relay8173022 - RVA6AMKL
    Comp Overload118U3878 - LRE21+LAEB2
    Comp Start Cap8173001 (100MF 330V+R)
    Comp Run Cap8173041 (30MF 450V)
    Circuit Breaker118U3869 - C60H2P25AC
    Seq Phase Relay118U3882 - KIT SPPR GIC-SM500-MG73BF
    Crankcase Heater120Z0459 (PTC 200-600V 35W)
    Filter DrierPART NO: 023Z5041 MODEL NO: DML084
    Sight GlassPART NO: 014F0173 MODEL NO: SGP12 N
    Condenser118U5218
    Fan Motor + Capacitor118U3765 - B2 HOUSING TYPE (HIGH AMBIENT)
    Fan Blade118U3766 (457MM DIAMETER)
    Fan Grille/Guard118U3484 (B2 HOUSING TYPE)
    Fan Speed Control61H3140 (XGE-4C) - UNITS PRE-09/08/2018 ALSO
    HP/LP Control60539766 (KP17WB)
  • danfoss_optyma_b2
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10
    321180164021802800349042705110
    38970138018602410303037204470
    43810118016102100266032803960
    46107014701930244030203650

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10
    321180164021802800349042705110
    38970138018602410303037204470
    43810118016102100266032803960
    46107014701930244030203650

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
  • Micro Channel Heat Exchanger technology | A whole new level of system efficiency
