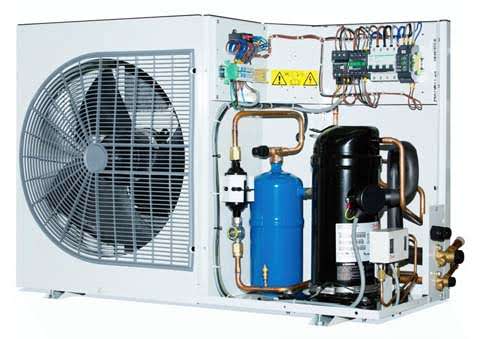

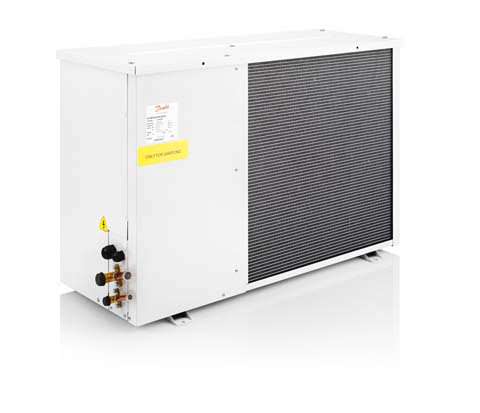

Optyma Slim Condensing Unit - Med Temp - 1Ø 2HP - OPMPVE034MLW10G

Optyma Slim Condensing Unit - Med Temp - 1Ø 2HP

Part Number: OPMPVE034MLW10G

Optyma Slim Condensing Unit - Med Temp - 1Ø 2HP

Part Number: OPMPVE034MLW10G
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Crankcase Heater
    • Service Shut Off Valves

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight67 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection3/4 "
    Receiver Capacity3.4 L
    Compressor
    Nominal HP2 HP
    Max Continuous Current19 Amps
    Locked Rotor Amps60 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase HeaterNot Supplied (240V / 1 / 50Hz 70w Part no: 120Z5040)
    Fan Motors
    Total FLA1.1 Amps
    Quantity1
    Diameter457 mm
    Voltage230V / 1 / 50Hz
  • OPMPVE034MLW10G
    Compressor121L8631 - MLZ015T5A (1PH)
    Comp Contactor118U3867 - LC1E2501M6
    Comp Start Relay120Z0394 - RVA3EKL
    Comp Overload118U3879 - LRE22+LAEB2
    Comp Start Cap120Z0399 (145-175MF 330V+R)
    Comp Run Cap8173231 (40MF 450V)
    Circuit Breaker118U3869 - C60H2P25AC
    Seq Phase Relay118U3882 - KIT SPPR GIC-SM500-MG73BF
    Crankcase Heater120Z5040 (240V 70W)
    Filter DrierPART NO: 023Z5041 MODEL NO: DML084
    Sight GlassPART NO: 014F0173 MODEL NO: SGP12 N
    Condenser118U5218
    Fan Motor + Capacitor118U3765 - B2 HOUSING TYPE (HIGH AMBIENT)
    Fan Blade118U3766 (457MM DIAMETER)
    Fan Grille/Guard118U3484 (B2 HOUSING TYPE)
    Fan Speed Control61H3140 (XGE-4C) - UNITS PRE-09/08/2018 ALSO
    HP/LP Control60539766 (KP17WB)
  • danfoss_optyma_b2
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    322270282034304120488057206630
    381940245030103630431050705910
    431650212026303200383045205290
    4624002940353041804910

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    322270282034304120488057206630
    381940245030103630431050705910
    431650212026303200383045205290
    4624002940353041804910

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32172021702700332040204810
    38160020202520310037604510
    43150019002360291035404260
    462270279034004100

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32180022362754336140664873
    38165620642545310937634514
    4319162366289335044208
    462257276133464021

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    322195273633564061485657436725
    381992249130633715445152776194
    43228328123416410248755737

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    322195273633564061485657436725
    381992249130633715445152776194
    43228328123416410248755737

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
  • Micro Channel Heat Exchanger technology | A whole new level of system efficiency
