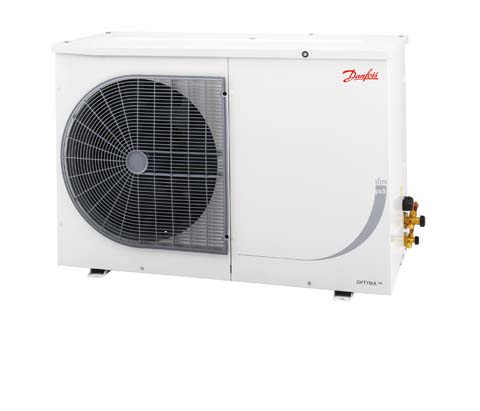

Optyma Slim Condensing Unit - Med Temp - 1Ø 3-1/2HP

Part Number: OPMPVE057MLW10G

Optyma Slim Condensing Unit - Med Temp - 1Ø 3-1/2HP

Part Number: OPMPVE057MLW10G
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Optyma Slim Condensing Unit - Med Temp - 1Ø 3-1/2HP
Optyma Slim Condensing Unit - Med Temp - 1Ø 3-1/2HP
Optyma Slim Condensing Unit - Med Temp - 1Ø 3-1/2HPOptyma Slim Condensing Unit - Med Temp - 1Ø 3-1/2HP

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Service Shut Off Valves

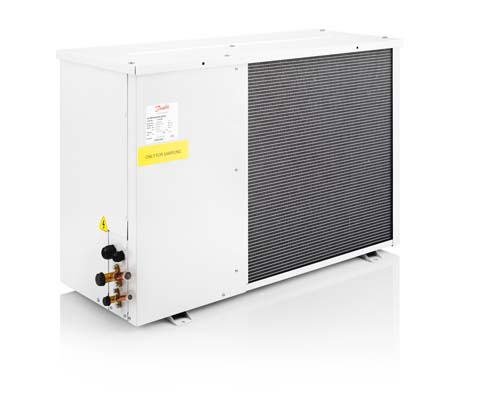

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

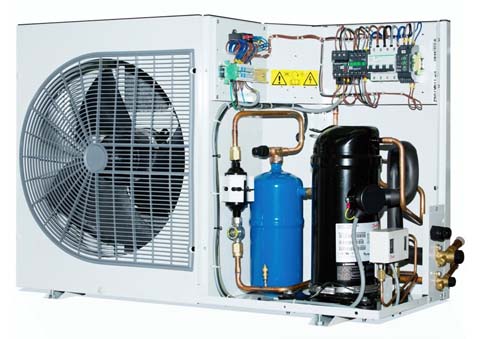

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight67 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection3/4 "
    Receiver Capacity3.4 L
    Compressor
    Nominal HP3.5 HP
    Max Continuous Current26 Amps
    Locked Rotor Amps97 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase Heater240V / 1 / 50Hz 70w (fitted standard from Jan 2023)
    Fan Motors
    Total FLA1.1 Amps
    Quantity1
    Diameter457 mm
    Voltage230V / 1 / 50Hz
  • Circuit Breaker118U3870
    Comp Contactor118U3867
    Comp Overload118U3880
    CompressorMLZ026T5A
    Compressor Start Relay120Z0394
    Compressor Start Capacitor8173001
    Compressor Run Capacitor8173041
    Condenser118U5218
    Crankcase Heater120Z5040
    Fan BladeRefer to Technical Guide
    Fan Grille/Guard118U3484
    Fan Motor + CapacitorRefer to Technical Guide
    Fan Speed ControlRefer to Technical Guide
    Filter DrierDML084
    HP/LP Control60539766
    Seq Phase Relay118U3882
    Sight GlassSGP12N
  • danfoss_optyma_b2
  • danfoss_optyma_slim_2022-10-11_w1
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323692447753646356745086409913
    383260395547405621659776668816
    4328873502419949815853

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323692447753646356745086409913
    383260395547405621659776668816
    4328873502419949815853

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32290636924599563167958096
    38269734224271525063627614
    43253231953988491459777180

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32299337254574555166617909
    38274234314227514061777344
    43252631773926478457596858

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3237094606563067898088952911109
    3833424159509361547349868110152
    4337734626560067027940-

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3237094606563067898088952911109
    3833424159509361547349868110152
    4337734626560067027940-

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
