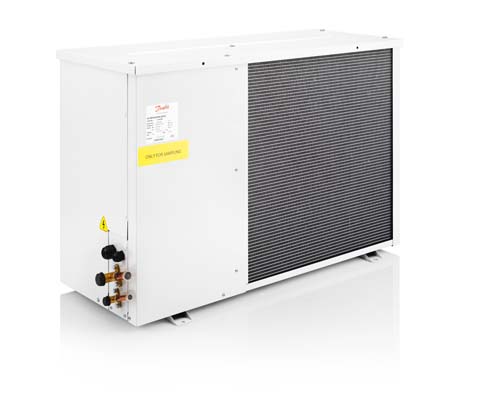

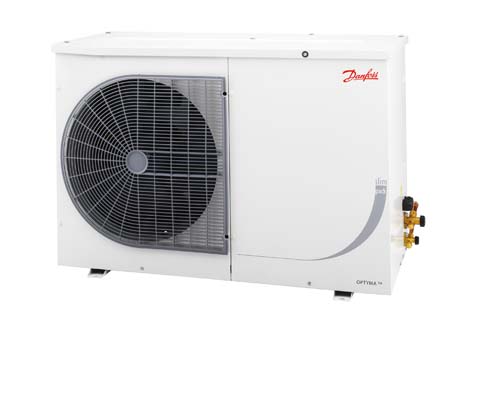

Optyma Slim Condensing Unit - Med Temp - 1Ø 3HP

Part Number: OPMPVE046MLW10G

Optyma Slim Condensing Unit - Med Temp - 1Ø 3HP

Part Number: OPMPVE046MLW10G
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Optyma Slim Condensing Unit - Med Temp - 1Ø 3HP
Optyma Slim Condensing Unit - Med Temp - 1Ø 3HP
Optyma Slim Condensing Unit - Med Temp - 1Ø 3HPOptyma Slim Condensing Unit - Med Temp - 1Ø 3HP

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Service Shut Off Valves

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

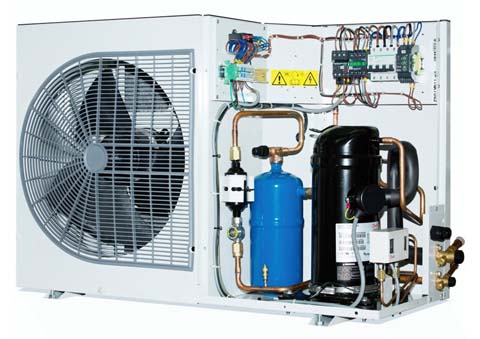

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight67 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection3/4 "
    Receiver Capacity3.4 L
    Compressor
    Nominal HP3 HP
    Max Continuous Current25 Amps
    Locked Rotor Amps97 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase Heater240V / 1 / 50Hz 70w (fitted standard from Jan 2023)
    Fan Motors
    Total FLA1.1 Amps
    Quantity1
    Diameter457 mm
    Voltage230V / 1 / 50Hz
  • Circuit Breaker118U3867
    Comp Contactor118U3867
    Comp Overload118U3880
    CompressorMLZ021T5A
    Compressor Start Relay120Z0394
    Compressor Start Capacitor120Z0399
    Compressor Run Capacitor120Z0051
    Condenser118U5218
    Crankcase Heater120Z5040
    Fan BladeRefer to Technical Guide
    Fan Grille/Guard118U3484
    Fan Motor + CapacitorRefer to Technical Guide
    Fan Speed ControlRefer to Technical Guide
    Filter DrierDML084
    HP/LP Control60539766
    Seq Phase Relay118U3882
    Sight GlassSGP12N
  • danfoss_optyma_b2
  • danfoss_optyma_slim_2022-10-11_w1
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323087382646595583660077098897
    382751341541644995590869107996
    4324513042371844685295

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323087382646595583660077098897
    382751341541644995590869107996
    4324513042371844685295

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32238130263771462155816655
    38220428033506431552376274
    43206326163275404549285929

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32242030183718453054616519
    38221927833440420050736066
    43204725793198391447365674

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323005373445705520659177879107
    382722339341635040603271458383
    4331043815462855526594

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323005373445705520659177879107
    382722339341635040603271458383
    4331043815462855526594

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
