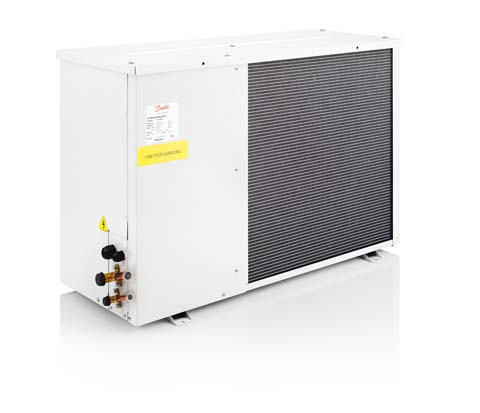

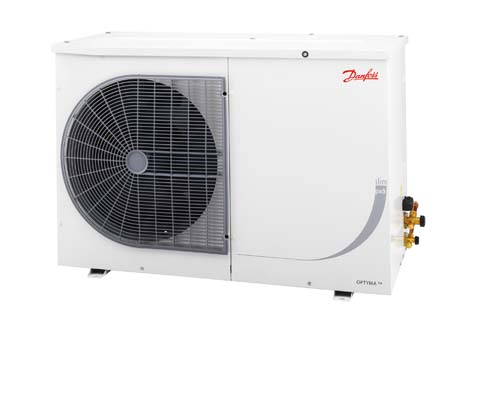

Optyma Slim Condensing Unit - Med Temp - 1Ø 4HP

Part Number: OPMPVE068MLW10G

Optyma Slim Condensing Unit - Med Temp - 1Ø 4HP

Part Number: OPMPVE068MLW10G
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Optyma Slim Condensing Unit - Med Temp - 1Ø 4HP
Optyma Slim Condensing Unit - Med Temp - 1Ø 4HP
Optyma Slim Condensing Unit - Med Temp - 1Ø 4HPOptyma Slim Condensing Unit - Med Temp - 1Ø 4HP

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Service Shut Off Valves

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

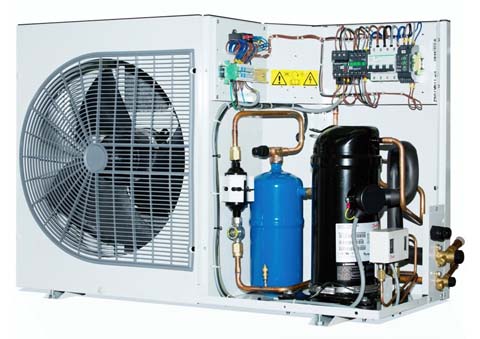

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight88 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection7/8 "
    Receiver Capacity6.2 L
    Compressor
    Nominal HP4 HP
    Max Continuous Current32 Amps
    Locked Rotor Amps127 Amps
    Voltage230V / 1 / 50Hz
    Motor TypeCSR
    Crankcase Heater240V / 1 / 50Hz 70w (fitted standard from Jan 2023)
    Fan Motors
    Total FLA0.97 Amps
    Quantity1
    Diameter500 mm
    Voltage230V / 1 / 50Hz
  • Circuit Breaker118U3871
    Comp Contactor118U3895
    Comp Overload118U3880
    CompressorMLZ030T5A
    Compressor Start Relay120Z0394
    Compressor Start Capacitor120Z0400
    Compressor Run Capacitor8173233
    Condenser118U5219
    Crankcase Heater120Z5040
    Fan BladeRefer to Technical Guide
    Fan Grille/Guard118U3485
    Fan Motor + CapacitorRefer to Technical Guide
    Fan Speed ControlRefer to Technical Guide
    Filter DrierDML164
    HP/LP Control60539766
    Seq Phase Relay118U3882
    Sight GlassSGP12N
  • danfoss_optyma_b3
  • danfoss_optyma_slim_2022-10-11_w3
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324848594572018625102201198613917
    38430152976440774292101084912658
    4338284734577669708325985111553

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    324848594572018625102201198613917
    38430152976440774292101084912658
    4338284734577669708325985111553

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32364244265449667280599581
    38347941465072621475349001
    43335639154751581770738487

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32368245535577676781369693
    38336641855144625975449008
    43309638674769581870308414

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    32446855446773816897371149213440
    38402550176150743888941053012359
    434567561568108167970011427

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    32446855446773816897371149213440
    38402550176150743888941053012359
    434567561568108167970011427

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
