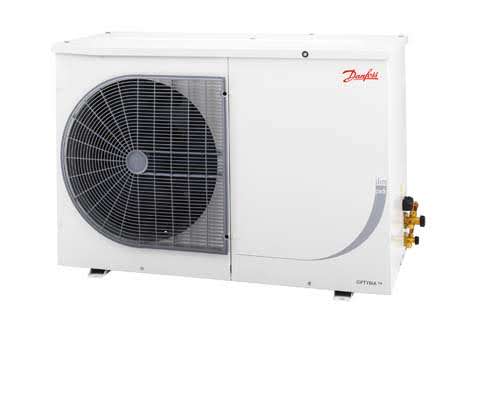

Optyma Slim Condensing Unit - Med Temp - 3Ø 3HP - OPMPVE046MLW10E

Optyma Slim Condensing Unit - Med Temp - 3Ø 3HP

Part Number: OPMPVE046MLW10E

Optyma Slim Condensing Unit - Med Temp - 3Ø 3HP

Part Number: OPMPVE046MLW10E
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Service Shut Off Valves

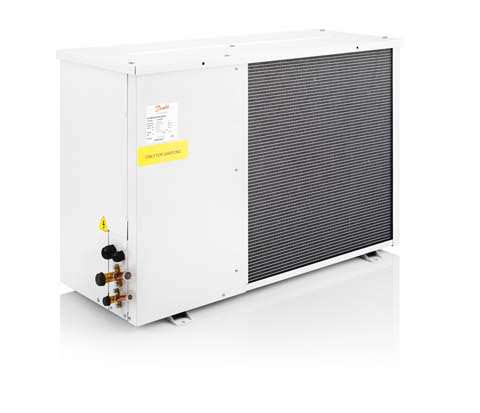

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

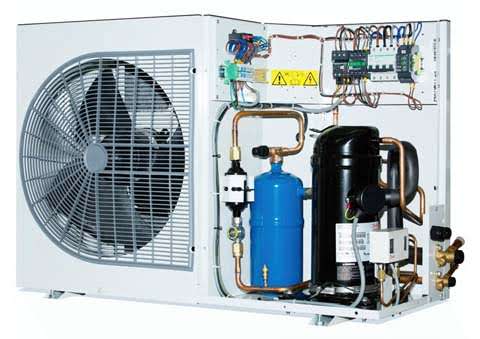

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight67 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection3/4 "
    Receiver Capacity3.4 L
    Compressor
    Nominal HP3 HP
    Max Continuous Current9.5 Amps
    Locked Rotor Amps45 Amps
    Voltage400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater240V / 1 / 50Hz 70w (fitted standard from Jan 2023)
    Fan Motors
    Total FLA1.1 Amps
    Quantity1
    Diameter457 mm
    Voltage230V / 1 / 50Hz
  • Circuit Breaker118U3873
    Comp Contactor118U3894
    Comp Overload118U3876
    CompressorMLZ021T4LP9A
    Condenser118U5218
    Crankcase Heater120Z5040
    Fan BladeRefer to Technical Guide
    Fan Grille/Guard118U3484
    Fan Motor + CapacitorRefer to Technical Guide
    Fan Speed ControlRefer to Technical Guide
    Filter DrierDML084
    HP/LP Control60539766
    Seq Phase Relay118U3882
    Sight GlassSGP12N
  • danfoss_optyma_b2
  • danfoss_optyma_slim_2022-10-11_w2
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323141381745735419636074038555
    382764337240514811566266127673
    4324292978359142805054

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    323141381745735419636074038555
    382764337240514811566266127673
    4324292978359142805054

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32239730053733458455636671
    38222627983483428652116259
    43208126203268402949075905

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    32247730813788460455396598
    38225728263489425451316126
    43206926073231395247795720

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    322985370945375477653377078995
    382686335141124978595570458247
    4330453746454754556473

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    322985370945375477653377078995
    382686335141124978595570458247
    4330453746454754556473

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
  • Micro Channel Heat Exchanger technology | A whole new level of system efficiency
