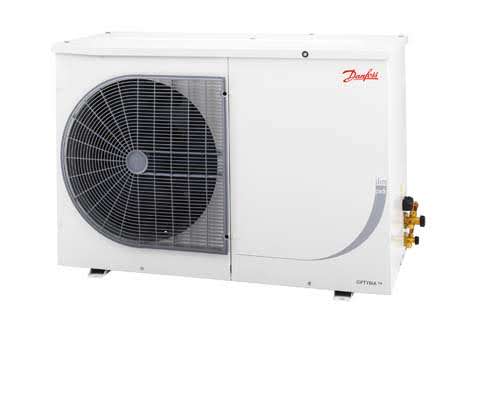

Optyma Slim Condensing Unit - Med Temp - 3Ø 4HP - OPMPVE068MLW10E
Optyma Slim Condensing Unit - Med Temp - 3Ø 4HP
Part Number: OPMPVE068MLW10EOptyma Slim Condensing Unit - Med Temp - 3Ø 4HP
Part Number: OPMPVE068MLW10ESign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Danfoss Optyma Slim Pack Condensing Units
With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.
Main Product Features
Outdoor Applications
- Weatherproof Housing IP54
- Robust and resistant to corrosion
- Compact design
- Service Shut Off Valves

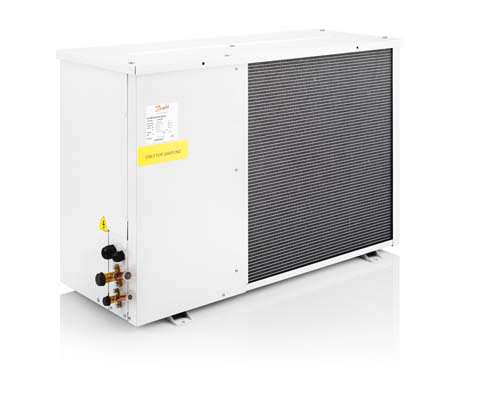

Micro Channel Condenser Coil
- Easy and fast cleaning
- Less refrigerant charge
- Longer life time
- High Efficiency
Externally mounted Service Ports
- Fast and easy installation
- Quick connections of suction & liquid lines
- Shut off valves on receiver
- Service valves with ports for easy servicing

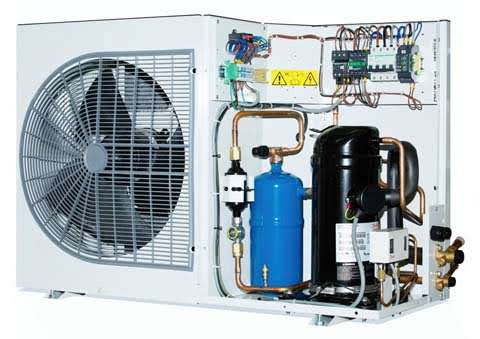

Standard Features
- Weatherproof Housing IP54
- Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
- Dedicated Low or Medium Temperature Units
- Danfoss Hermetic & Scroll Compressors
- Compressor Oil Sight Glass
- Service Shut Off Valves
- Fan Speed Controller
- Dual Pressure Control
- Drier & Sight Glass
- Liquid Receiver
- Pre-wired
Condensing Unit Specifications | Weight | 88 Kg |
| Liquid Line Connection | 1/2 " |
| Suction Line Connection | 7/8 " |
| Receiver Capacity | 6.2 L |
Compressor | Nominal HP | 4 HP |
| Max Continuous Current | 13 Amps |
| Locked Rotor Amps | 60 Amps |
| Voltage | 400V / 3 / 50Hz |
| Motor Type | DOL |
| Crankcase Heater | 240V / 1 / 50Hz 70w (fitted standard from Jan 2023) |
Fan Motors | Total FLA | 0.97 Amps |
| Quantity | 1 |
| Diameter | 500 mm |
| Voltage | 230V / 1 / 50Hz |
R404A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -20 | -15 | -10 | -5 | 0 | 5 | 10 |
|---|
| 32 | 4843 | 5938 | 7194 | 8617 | 10213 | 11980 | 13913 |
| 38 | 4297 | 5291 | 6433 | 7734 | 9203 | 10843 | 12654 |
| 43 | 3824 | 4728 | 5770 | 6963 | 8319 | 9846 | 11549 |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
R507 | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -20 | -15 | -10 | -5 | 0 | 5 | 10 |
|---|
| 32 | 4843 | 5938 | 7194 | 8617 | 10213 | 11980 | 13913 |
| 38 | 4297 | 5291 | 6433 | 7734 | 9203 | 10843 | 12654 |
| 43 | 3824 | 4728 | 5770 | 6963 | 8319 | 9846 | 11549 |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
R134A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -15 | -10 | -5 | 0 | 5 | 10 |
|---|
| 32 | 3484 | 4382 | 5437 | 6657 | 8048 | 9614 |
| 38 | 3240 | 4078 | 5066 | 6213 | 7524 | 9005 |
| 43 | 3037 | 3820 | 4748 | 5831 | 7073 | 8480 |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
R513A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -15 | -10 | -5 | 0 | 5 | 10 |
|---|
| 32 | 3745 | 4640 | 5693 | 6916 | 8323 | 9921 |
| 38 | 3438 | 4279 | 5264 | 6408 | 7725 | 9224 |
| 43 | 3175 | 3967 | 4892 | 5967 | 7205 | 8619 |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
R449A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -20 | -15 | -10 | -5 | 0 | 5 | 10 |
|---|
| 32 | 4498 | 5567 | 6791 | 8181 | 9747 | 11495 | 13429 |
| 38 | 4037 | 5020 | 6146 | 7430 | 8882 | 10510 | 12321 |
| 43 | | 4546 | 5584 | 6773 | 8124 | 9647 | 11350 |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
R448A | Ambient (°C) | Refrigeration Capacity (w) |
|---|
| Evaporating Temperature (°C) |
|---|
| -20 | -15 | -10 | -5 | 0 | 5 | 10 |
|---|
| 32 | 4498 | 5567 | 6791 | 8181 | 9747 | 11495 | 13429 |
| 38 | 4037 | 5020 | 6146 | 7430 | 8882 | 10510 | 12321 |
| 43 | | 4546 | 5584 | 6773 | 8124 | 9647 | 11350 |
Note:
Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
Micro Channel Heat Exchanger technology | A whole new level of system efficiency
