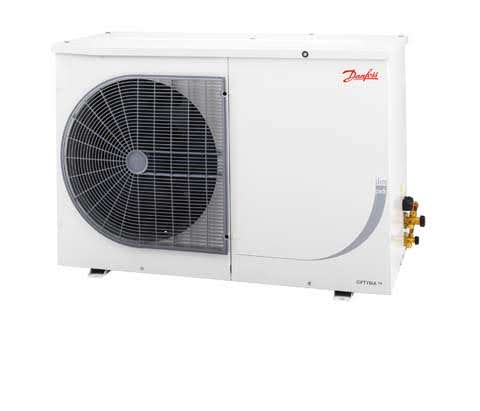

Optyma Slim Condensing Unit - Med Temp - 3Ø 5HP - OPMPVE080MLW10E

Optyma Slim Condensing Unit - Med Temp - 3Ø 5HP

Part Number: OPMPVE080MLW10E

Optyma Slim Condensing Unit - Med Temp - 3Ø 5HP

Part Number: OPMPVE080MLW10E
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Crankcase Heater
    • Service Shut Off Valves

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

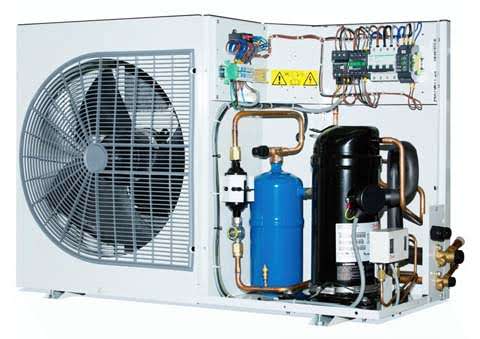

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight88 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection7/8 "
    Receiver Capacity6.2 L
    Compressor
    Nominal HP5 HP
    Max Continuous Current15 Amps
    Locked Rotor Amps70 Amps
    Voltage400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase HeaterNot Supplied (240V / 1 / 50Hz 70w Part no: 120Z5040)
    Fan Motors
    Total FLA0.97 Amps
    Quantity1
    Diameter500 mm
    Voltage230V / 1 / 50Hz
  • OPMPVE080MLW10E
    Compressor121L8645 - MLZ038T4A (3PH)
    Comp Contactor118U3896 - LC1E1801M5
    Comp Start Relay
    Comp Overload118U3878 - LRE21+LAEB2
    Comp Start Cap
    Comp Run Cap
    Circuit Breaker118U3874 - C60H4P20AC
    Seq Phase Relay118U3882 - KIT SPPR GIC-SM500-MG73BF
    Crankcase Heater120Z5040 (240V 70W)
    Filter DrierPART NO: 023Z5044 MODEL NO: DML164
    Sight GlassPART NO: 014F0173 MODEL NO: SGP12 N
    Condenser118U5219
    Fan Motor + CapacitorB3 HOUSING TYPE: 118U3829 (FROM WEEK 30 2020)
    Fan Blade
    Fan Grille/Guard118U3485 (B3 HOUSING TYPE)
    Fan Speed Control61H3140 (XGE-4C) - UNITS PRE-09/08/2018 ALSO
    HP/LP Control60539766 (KP17WB)
  • danfoss_optyma_b3
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    325708694883539930116821361215720
    385026614674158842104341219714137
    43442354356584788193351095612755

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    325708694883539930116821361215720
    385026614674158842104341219714137
    43442354356584788193351095612755

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    324029508663077704928211048
    383718471358637176866310326
    43345443965482672481309707

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    324380541066148007960011400
    384011497560997398888410568
    43369446015655687282679850

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    325214643378129361110881299515081
    384667578670538479100731183813779
    4352276395771491921083612654

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    325214643378129361110881299515081
    384667578670538479100731183813779
    4352276395771491921083612654

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
  • Micro Channel Heat Exchanger technology | A whole new level of system efficiency
