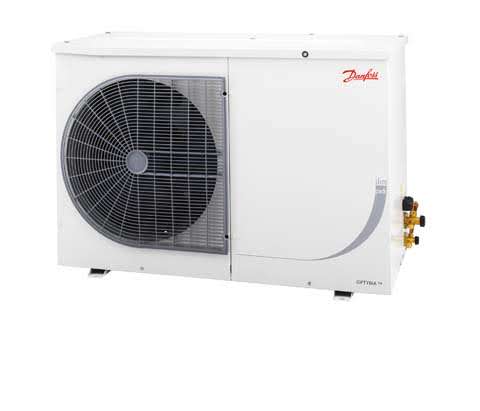

Optyma Slim Condensing Unit - Med Temp - 3Ø 6HP - OPMPVE099MLW10E

Optyma Slim Condensing Unit - Med Temp - 3Ø 6HP

Part Number: OPMPVE099MLW10E

Optyma Slim Condensing Unit - Med Temp - 3Ø 6HP

Part Number: OPMPVE099MLW10E
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss Optyma Slim Pack Condensing Units

    With Danfoss, you get more than reliable solutions for cold rooms. Contractor-friendly products built with market leading expertise that are tailored to suit the local ambient conditions and regulations to save on installation and maintenance. Make the right choice for optimum protection of perishables, efficient operation and long lifespan.

    Main Product Features

    Outdoor Applications

    • Weatherproof Housing IP54
    • Robust and resistant to corrosion
    • Compact design
    • Crankcase Heater
    • Service Shut Off Valves

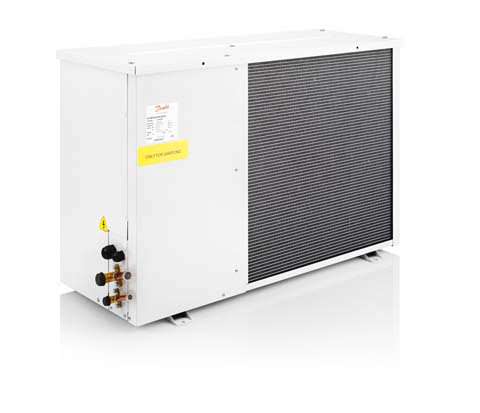

    Micro Channel Condenser Coil

    • Easy and fast cleaning
    • Less refrigerant charge
    • Longer life time
    • High Efficiency

    Externally mounted Service Ports

    • Fast and easy installation
    • Quick connections of suction & liquid lines
    • Shut off valves on receiver
    • Service valves with ports for easy servicing

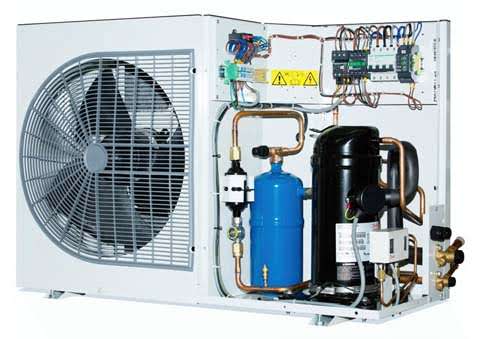

    Standard Features

    • Weatherproof Housing IP54
    • Suitable for R404A/R507,R449A/R448A, R513A & R134a Refrigerants
    • Dedicated Low or Medium Temperature Units
    • Danfoss Hermetic & Scroll Compressors
    • Compressor Oil Sight Glass
    • Service Shut Off Valves
    • Fan Speed Controller
    • Dual Pressure Control
    • Drier & Sight Glass
    • Liquid Receiver
    • Pre-wired
  • Condensing Unit Specifications
    Weight88 Kg
    Liquid Line Connection1/2 "
    Suction Line Connection7/8 "
    Receiver Capacity6.2 L
    Compressor
    Nominal HP6 HP
    Max Continuous Current15 Amps
    Locked Rotor Amps82 Amps
    Voltage400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase HeaterNot Supplied (240V / 1 / 50Hz 70w Part no: 120Z5040)
    Fan Motors
    Total FLA0.97 Amps
    Quantity1
    Diameter500 mm
    Voltage230V / 1 / 50Hz
  • OPMPVE099MLW10E
    Compressor121L8649 - MLZ045T4A (3PH)
    Comp Contactor118U3896 - LC1E1801M5
    Comp Start Relay
    Comp Overload118U3878 - LRE21+LAEB2
    Comp Start Cap
    Comp Run Cap
    Circuit Breaker118U3874 - C60H4P20AC
    Seq Phase Relay118U3882 - KIT SPPR GIC-SM500-MG73BF
    Crankcase Heater120Z5040 (240V 70W)
    Filter DrierPART NO: 023Z5044 MODEL NO: DML164
    Sight GlassPART NO: 014F0173 MODEL NO: SGP12 N
    Condenser118U5219
    Fan Motor + CapacitorB3 HOUSING TYPE: 118U3829 (FROM WEEK 30 2020)
    Fan Blade
    Fan Grille/Guard118U3485 (B3 HOUSING TYPE)
    Fan Speed Control61H3140 (XGE-4C) - UNITS PRE-09/08/2018 ALSO
    HP/LP Control60539766 (KP17WB)
  • danfoss_optyma_b3
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3266438055964811422133791552117853
    3858237082850810106118801383615989
    435100622875138960105801238114387

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3266438055964811422133791552117853
    3858237082850810106118801383615989
    435100622875138960105801238114387

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    3250186290780695531151413674
    3846455822723988801073112775
    4343375425675082971004911990

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -15-10-50510
    3253476604806497401164113772
    3848906066742589821074812731
    434497560268748329998011837

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a at time of commissioning.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3263427876960011525136561599518537
    3856927092866310419123671451316859
    43641278489456112471322815406

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
    R448A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -20-15-10-50510
    3263427876960011525136561599518537
    3856927092866310419123671451316859
    43641278489456112471322815406

    Note:

    Nominal ratings should be used as a guide, based on EN13215 10K Superheat & inherent liquid subcooling.
  • Micro Channel Heat Exchanger technology | A whole new level of system efficiency
